Addonics CFast to SATA Adapter Bracket - To Suit PCI Slot

IMG 1 of 2
No Longer Available
Part Number:
144834
(?) Brand:
Addonics Web Site
Manuf No:
ADSACFAST-N
ADSACFASTN
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ADSACFASTN, ADSACFAST-N

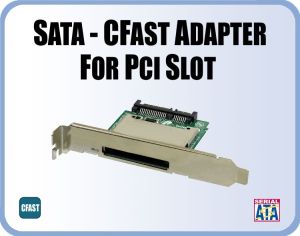

SATA to CFast Adapter on standard height PCI mounting bracket

Content: SATA - CFast Adapter, one 18" SATA cable, standard height PCI bracket, low profile PCI bracket and SCSI-I connector bracket, 4P - 15P SATA power cable, installation guide

This SATA - CFast adapter instantly connects the latest CFast media to any SATA port inside a Desktop or Rack Mounted system. Once installed, you can use the CFast media just like a Solid State Drive (SSD) as a boot media or as a removable SSD. Depending on the performance of the CFast media, you can achieve READ / WRITE speed up to 600 MB/sec when connecting to a SATA III port. The SATA CFast adapter can be added via an open PCI slot or a standard 3.5" drive bay. The versatility and the great performance make this SATA CFast adapter an ideal solution for many industrial PCs, embedded systems and a wide range of computing applications.




Key Features

  • Reads and writes to any CFast card via standard SATA interface
  • Choice of models for
    • mounting in standard height PCI slot, low profile PCI slot or SCSI-1 connector cut out
    • mounting into standard 3.5" drive bay (or 5 1/4" drive bay with optional bay converter, AAMK53)
  • Supports hot swap when attached to a SATA port that supports this feature
  • CFast socket with push-push function for easy insertion and removal of CFast card
  • Bootable
  • Power LED indicator (On: power on / Flash: data access)
  • OS Independent, no software driver to install
  • RoHS Compliant

Specifications

Interface
 compatible with SATA I, II and III port
Maximum Read / Write Speed of the adapter
(actual performance depends on the CFast media itself)

SATA I port - 150 MB/sec
SATA II port - 300 MB/sec
SATA III port - 600 MB/sec

Supported media CFast type I, CFast type II
Supported OS 2000, XP, Mac OS 8.6 or higher, Linux kernel 2.4 or higher
Dimensions Dimension (L x W x H): 100 x 95 x 25 mm/ 3.94 x 3.74 x 1.0 in
Weight Weight: 125 g / 4.17 oz
Operating Temperature & Humidity 0 C to + 60 C, 5 - 95 % RH non condensing
Storage Temperature & Humidity -20 C to + 60 C , 5 - 90% RH
Warranty One Year

All specifications are subject to change without notice. All other products are trademarks of their respective owners.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
