ATEN CM0264-AT-U - 2X4 Dual Monitor Matrix USB KVM Switch

Aten 2x4 Dual Monitor Matrix USB KVMP Switch 2x DVI 2x HDMI inputs w/Audio

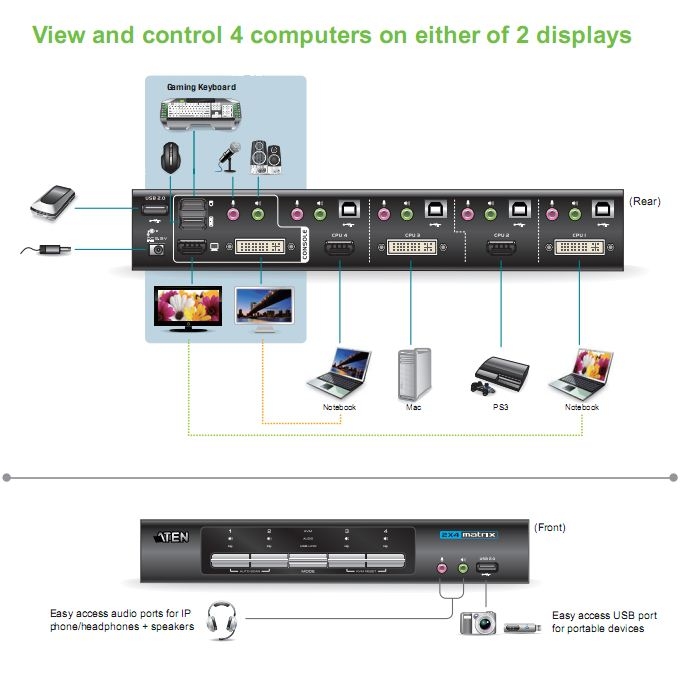

The CM0264 2x4 USB Matrix KVMP™ Switch’s Dual Display Console supports one DVI display and one
HDMI display, allowing users to access 4 computers/devices from a single console, consisting of USB
keyboard, USB mouse, HDMI display, and DVI display. As a USB hub, it permits each computer to access
connected peripherals on a one-computer-at-a-time basis.
With its unique design and innovative features, the CubiQ™ CM0264 2x4 USB Matrix KVMP™ Switch
provides both style and functionality for the SOHO environment. Allowing you to switch seamlessly
between two HDMI- and two DVI-enabled PCs, and share USB peripherals and high-de? nition audio from
a single dual-display console, the CM0264 is ideal  for multimedia applications, and offers the ultimate in
space-saving, streamlined KVM technology for the desktop.



Features

• One dual display USB console independently and simultaneously controls two DVI computers, two HDMI computers or devices, and two additional USB devices
• Dual display - simultaneously control one computer on one display and view another source on the other display
• Graphical user interface (GUI) for convenient, user-friendly operation
• Innovative desktop control features include on-screen file transfer and copy-paste functionality, and cursor shift function in dual display mode
• 2 port USB 2.0 hub built in; fully compliant with USB 2.0 specification
• Independent switching of KVM, USB peripheral, and audio focus
• Computer selection via front panel pushbuttons, hotkeys, mouse, and GUI
• HDMI 1.3a compatible; HDCP compatible
• Dolby true HD and DTS HD master audio support
• Superior video quality - up to 1920 x 1200 (DVI single link), 1080p (HDMI)
• Supports widescreen resolutions
• Multiplatform support - Windows, Linux, and MAC
• Cursor shift function - in dual-display mode, the mouse cursor can move back and forth across both displays, shifting the KVM focus
• Video DynaSync - exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
• Power on detection - if one of the computers is powered off, the CM-0264 automatically switches to the next powered-on computer
• Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards
• Complete keyboard emulation for error-free booting
• Mac keyboard support and emulation*
• Auto scan mode for monitoring all computers and HDMI devices
• Firmware upgradable

  *1. Pc keyboard combinations emulate MAC keyboards.
  2. Mac keyboards only work with their own computers
