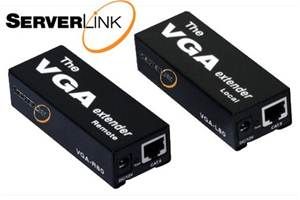

SL-VXT-250 | ServerLink VGA Extender To 250m - Cat5

Included Cables
1 x 1.2m VGA Male to Female Cable for Computer to Transmitter Product Brief
The SL-VXT-250 Cat 5 VGA Extender Set allowsVGA extension over Cat 5 up to 250m using standard Cat5 cabling. By utilizing Cat 5 extension technology, users can very easily extend their VGA signal over a longer distance while still maintaining a good signal quality across 250m. This is due to theextender's easy to adjust videogain and equalization settings. Features
Extend your VGA signal by up to 250m
Hardware solution - no software or drives required
Manualvideo gain and equalization for simple video optimization
Uses standard Cat 5/5e/6 UTP or STP cable
Supports resolution up to 1920 x 1200*

TransmitterConnectors	1 x HDB 15-pin Male for VGA input
	1 x RJ45 for Cat 5 cable up to 250m
	1 x DC 9V power jack
Receiver Connectors	1 x HDB 15-pin Female for VGA output
	1 x RJ45 for Cat 5cableup to 250m
	1 x DC 9V power jack
LEDs	1 x Red Power
Gain Control	Rotary Knob on reciever
Equalization Control	Rotary Knob on reciever
Extension Distance	250m
Resolution	Up to 1920 x 1200
Enclosure	Metal
Dimension (L x W x H)	91 59 22 mm
Power Adapter	DC 9V 1.0A
Safety / Emission	FCC, CE, C-Tick

Weight: 1.08 kg
