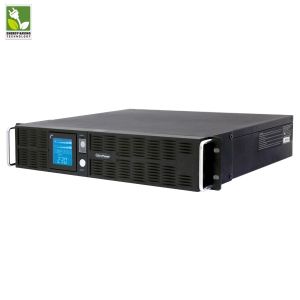

CyberPower Professional Line Interactive UPS - 1500VA, 2U Rackmount, XL Battery Expansion, 1125W

IMG 1 of 1
No Longer Available
Part Number:
151229
(?) Brand:
CyberPower Web Site
Manuf No:
CP85206A
Shipping Weight:
50 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
CP85206A

The professional Rack Mount LCD Series provides an advanced level of power protection to support mission-critical servers, telecom equipment, VOIP and internet working hardware. This series has both a Pure Sinewave waveform and Full Automatic Voltage Regulation(AVR) technology, which delivers a consistent and clean AC signal that protects connected equipment and prevents costly business interruptions. The multifunction LCD readout provides ready access to power/battery condition vitals, such as : Runtime, Load, Temperature, and much more. Bundled PowerPanel Business Edition Management Software monitors UPS status and can provide unattended shutdown of two serially connected servers. The patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models. You will find 80% less heat dissipation as well. An optional SNMP/HTTP Remote Management adapter supports remote management and contol of the system through a standard web browser. The unit's unique convertible design allows for use in either a TOWER(T) or Rackmount(RM) form factor.

Features & Benefits

  • Green Power UPS Technology : Energy-Saving UPS
  • Save upto 75% of electricity
  • Pure Sine Wave output
  • Automatic Voltage Regulator (AVR)
  • PowerPanel Management software included
  • Multiple outputs for multiple servers
  • Multiple communication interfaces
  • Programmable brownout and over voltage protection
  • Microprocessor based full digital control
  • EMI, RFI, Surge and lightning spike protection
  • Phone/Fax/Modem and DSL/Network protection
  • Scheduled shutdown
  • Auto restart/Auto charge
  • User-replaceable batteries
  • SNMP/HTTP Adapter(optional)
  • RM/T configuration
  • Dual PC support
  • Critical load outlets
  • Metal housing
  • Multifunction LCD readout
  • Audible alarms
  • Resettable Circuit Breaker

Packaging Contents

  • UPS unit
  • User manual
  • PowerPanel Business Edition software CD
  • Rack mount Brackets
  • Phone line
  • USB A+B type cable
  • Emergency Power-Off Cable (gray)
  • Serial Interface Cable (DB-9)
  • Power Cord x 4
Specifications
Model PR1500ELCDRT2U
Capacity (VA/Watts) 1500VA / 1125W
Input
Voltage Range 160Vac - 290Vac
Frequency Range 50Hz / 60 Hz +/- 3Hz(auto sensing)
Output
On Battery Output Voltage Pure Sine Wave at 230Vac +/- 5%
On Battery Output Frequency 50Hz / 60 Hz +/- 0.1Hz
Transfer Time (Typical) 4ms
Overload Protection Internal Current Limiting/Circuit Breaker
AVR Double Boost & Single Buck
Surge Protection and Filtering
Lightning/Surge Protection Yes
DSL/Phone/Fax/Moden protection RJ11/RJ45(One In/One Out)
Physical
Maximum Dimensions(mm) 433 x 388 x 88
Weight(kg) 27
Battery
Sealed Maintenance Free Lead
Acid Battery		 12V 7AH x 4
User Replaceable Yes
Typical Recharge Time 6~8 Hours
Status Indication
Indicators Power On, Using Battery, AVR, Load Level, Battery Level
Audible Alarms On Battery, Low Battery, Overload
Communication
Power Management Software PowerPanel Business Edition
Management
Self-Test Yes
Auto-Charge/Auto-Restart Yes
COM Interface Yes
USB Interface Yes
SNMP/HTTP Capable Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Years Advanced Replacement Australia Wide

Full manufacturers warranty details are available at the manufacturers (CyberPower) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
