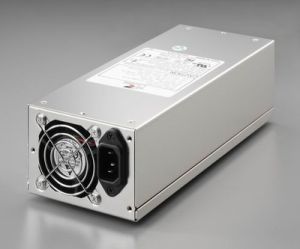

Zippy 600W EPS12V Slim Power Supply (P2G-5600V)
  • Suits Norco 2U Chassis (RPC-2008, RPC-2208, RPC-250, RPC-270, RPC-271)

IMG 1 of 1
No Longer Available
Part Number:
157958
(?) Brand:
Zippy
Manuf No:
P2G-5600V
P2G5600V
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
P2G5600V, P2G-5600V

2U SingleP2G-5600V




600W

Server,Workstation,Storage System,IPC

240.00x100.00x70.00(mm)
9.45x3.94x2.76(inch)

VOLTAGE:90~264VACFULLRANGE
FREQUENCY:47~63HZ
INPUTCURRENT:9.0A(RMS)FOR115VAC,4.0A(RMS)FOR230VAC
INRUSHCURRENT:25AMAX.FOR115VAC,50AMAX.FOR230VAC
POWERFACTORCORRECTION:PFCCANREACHTHETARGET
OF95%AT115/230VAC,FULLLOAD
Output Voltage Output Current Min. Output Current Max. Output Current Peak Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 0.5 25.00   5% 1% 60mV
+12V 0.5 46   5% 1% 120mV
-12V 0 0.8   5% 1% 120mV
+3.3V 0.5 25   5% 1% 60mV
+5VSB 0 3.5   5% 1% 60mV

TEMPERATURE RANGE: OPERATING 0 --- 50, STORAGE 20 --- 80
HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
EFFICIENCY: 80~84% TYPICAL AT 115V, FULL LOAD
POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
OVER POWER PROTECTION
OVER VOLTAGE PROTECTION
OVER CURRENT PROTECTOIN
SHORT CIRCUIT PROTECTION
EMI: FCC CLASS B, CISPR22 CLASS B
SAFETY: TO MEET UL, CUL, TV, CCC
3.3V / 5V / 12V REMOTE SENSING
COOLING: ONE 60mm DC FAN
DIMENSION: 240 (D) x 100 (W) x 70 (H) mm
MEET IEC-1000-3-2 CLASS D


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.




No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year RTB

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
