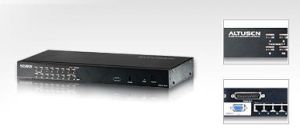

KH1516 | ATEN Altusen KVM Switch - 16 Port CAT5, 2x6-Pin Mini-Din-Female

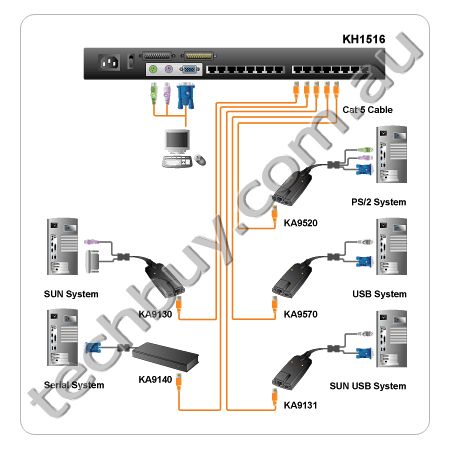

The KH1516 KVM Switch is control unit that allow access to multiple computers from a single KVM console. The KH1516 features RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Single Compensation (ASC) signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup, the KH1516 permits any combination of PCs,Macs,Sun computers, and serial devices to coexist on the installation

• Single console controls up to 16 computers
• Dedicated chain ports - daisy chain up to 31 additional units - control up to 512 computers from a single console
• Extends the distance between computers and switch - up to 40 m (130') for resolutions of 1280 x 1024 @ 60Hz, 30m (100') for resolution of 1600 x 1200 @ 60Hz
• Custom ASIC (patent pending) auto-senses station's position on daisy chained installations - no need for manual DIP switch setting - front panel LED indicates station's position
• Multiplatform support: PC, Mac, Sun and terminal-based systems
• No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
• Auto Scan feature for monitoring user-selected computers
• Hot Pluggable - add or remove switches/computers without having to power down the switches
• Two level password security - only authorized users view and control the computers - up to four Users plus an Administrator with separate profi les for each
• Two level logout - Manual and Timed
• PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
• Superior video quality - supports resolutions of up to 1600 x 1200 @ 60Hz
• Multi-language keyboard support: American/UK English; Traditional Chinese; Japanese; French; German; Korean
• Rack Mountable in 19" System Rack (1U)
