Kworld S/CAM/CW80R13-VF-P CCTV Weatherproof IR Camera - 1/3" HAD CCD, 540TV Lines, 72 IR LEDS, 6-15mm, Day & Night - Black

IMG 1 of 1
No Longer Available
Part Number:
162630
(?) Brand:
Kworld
Manuf No:
CW80R13-VF-P
CW80R13VFP
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CW80R13-VF-P, CW80R13VFP

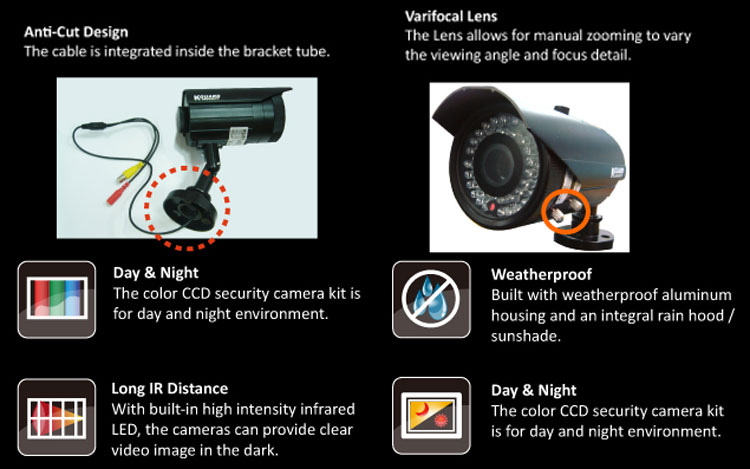

KGUARD CCTV Security Weatherproof IR Camera - 1/3`` HAD CCD 540TV Lines, 72IR LEDs, 6-15mm VF

Product Code: S/CAM/CW80R13-VF-P



SPECIFICATIONS

Model No.

 KG-CW80R13-VF-P
Image Device 1/3" SONY Super HAD CCD
Signal System PAL
Picture Elements PAL:752(H)582(V)
Horizontal Resolution 540 TV Lines
Minimum Illumination While IR ON "0" lux
S/N Ratio More than 48dB (AGC off)
Backlight Compensation On/Off Switchable
White Balance Auto Tracking
Focal Lens Manual varifocal lens, 6-15 mm
Shutter Speed 1/50(1/60) - 1/100,000 (sec)
IR LED 72pcs, 5/15
Sync System Internal Synchronization
Infrared Wavelength 850mm
IR Distance 60M
Grade of waterproof IP66
Bracket Anti-cut bracket
Operating Temperature -10 ~ +50C
Power Source DC12V
Video Out BNC, 1.0VP-P,75
Weight 1270g(N/W) 1440g(G/W)
Dimensions 101mm L:175mm


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
