The Flexible Solution for Corporate and Education Environments

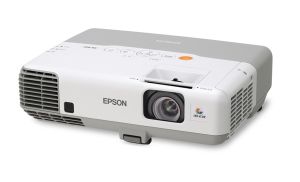

Epson is pleased to introduce the Epson EB905 3LCD Multimedia Projector. Powerful and easy to use, this projector offers low cost of ownership, and ease of maintenance. Beautiful crisp, clear images make the EB905 is the ideal choice for use in a wide variety of Corporate and Education environments.

Light + Colour Light Output of 3,000 lumens The Epson EB-905 is capable of producing a bright image of up to 3,000 Lumens Light + Colour Light Output. With this powerful projector you dont have to dim the lights or close the windows in order to see a bright, clear image.



Wide Ranging Connectivity – The EB-905 is very versatile in the classroom or office, featuring a host of input options. The units boast a HDMI, Video, S-Video, 2x VGA, USB A & B, Mic, RS232C, Monitor Out, Audio In + Out, and LAN inputs.
Easy integration and advanced connectivity features allow you to evolve your classroom or office as you incorporate additional technology. This projector can also be connected directly to the Epson DC06 to help facilitate effective presentations and lessons without the need for a PC.



1.6x Zoom Lens – The high level zoom of the EB-905 provides installation flexibility, allowing the unit to be place in a wide range of mount placements. This feature could allow you to mount the new projector unit in pre-existing mounts, avoiding the cost and time of setting up a new mount to suit the projector.



Network Functionality – With Epson Network monitoring and control software (Easy MP monitor), a single PC allows you to see which projectors are available and if they are running efficiently, even across the largest of networks. This series can be configured remotely, and you can receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.



Long Life Lamp - Lamp life for the EB-905 has an impressive 5,000 hours in high brightness mode or an amazing 6,000 hours in low brightness mode. We even back our lamps with a full 12 month, 750 hour* lamp warranty giving you the peace of mind. By the time you need to change the lamp in any of these products, you may have changed up to 2.5 lamps if you had used a competitor’s product from this category.



Maintaining the EB-905 is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent.
*Which ever comes first



Wireless Connectivity - With the addition of the ELPAP07 Wireless LAN Unit, the EB-905 becomes a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

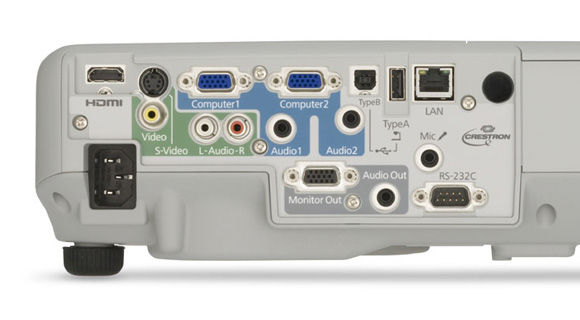

Connectivity Panel







PRODUCT TYPE	Entry Level Multimedia Projectors
PRODUCT NAME	Epson EB-905
PRODUCT CODE	V11H387053
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD	Size	0.68 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	786,432 pixels (1024 x 768) x 3
	Native resolution	XGA
	Aspect ratio	4:3
	Pixel arrangement	Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Manual zoom / focus
	F-number	1.51 - 1.99
	Focal length	18.2mm - 29.2mm
	Zoom ratio	1.0 ~ 1.6 Digital
LAMP	Type	200W UHE E-TORL
	Life (estimated)	5000Hr# (High bright), 6000Hr# (Low bright)
# Subject to operation and environmental conditions.
OPTICAL SYSTEM	Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE)	30 to 300 inch [0.84 to 8.4m] (Zoom: Wide) 30 to 300 inch [1.36 to 13.9m] (Zoom: Tele),
BRIGHTNESS
	High Brightness Mode	3,000 Lumens Light Output 3,000 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide)
	Low Brightness Mode	2,400 Lumens Light Output 2,400 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide)
CONTRAST	2,000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY	89% (Typ.)
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
VIDEO QUALITY	3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (2-2, 3-2 film detection)
SOUND OUTPUT	16W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK	13.5MHz to 162MHz
HORIZONTAL	15KHz to 92KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
TILT ANGLE	0 to 16 degrees
KEYSTONE CORRECTION	Vertical: +/-30 degrees Horizontal: +/-30 degrees
AUTO KEYSTONE CORRECTION	Vertical: +/-30 degrees
PASSWORD PROTECTED FUNCTION (security function)	Implemented
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1024 x 768 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47K-ohm
INPUT TERMINAL	Video	Video D-sub 15pin x 2 (Blue moulding)
	Audio	Stereo mini jack x 2
OUTPUT SIGNAL	Video	Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync.	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin x 2 (Blue moulding)
MIC
Input Signal	Audio	-50dBV to -40dBV (0dB=1V/Pa,1kHz) (TBD)
Input Terminal	Audio	Stereo mini jack (Plug in power is available)
CONTROL I/O
SERIAL I/O	Terminal	D Sub 9 pin x 1
	Signal	RS-232C
EASY MP
FUNCTION	ESC/VP.net
	E-mail notification
	SNMP
	Web control
	PJ-Link
	AMX Device Discovery
	Crestron Room View
	Message Broadcast
PC FREE	File Browser
	Still Image	JPG; Thumbnail
	Slideshow
WIRELESS Connectivity	802.11 b/g	With optional wireless adapter
SECURITY (Wireless LAN)	WEP (64bit/128bit)
	WPA-PSK (TKIP/AES)
	WPA2-PSK(TKIP/AES)
SOFTWARE	EMP Monitor (for Windows)	Epson IP Link Projector Control (for Windows)
	NS Connection	For wireless connectivity (Win & Mac OSX)
OPERATING TEMPERATURE	5C to 35C (41F to 95F) > (20%-80% Humidity )
COOL-DOWN PERIOD	"Instant off"
START-UP PERIOD	Approx. 8.5 seconds (warm up 30 seconds)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
DIMENSION
EXCLUDE FEET	263(D) x 345(W) x 93(H) mm
MAXIMUM DIMENSION	263(D) x 345(W) x 106(H) mm
WEIGHT	Approx. 3.13kg
FAN NOISE
HIGH BRIGHTNESS MODE	33dB
LOW BRIGHTNESS MODE	28dB
WARRANTY
STANDARD WARRANTY	3 years* *excluding lamp
* For more information visit Epson Projector Warranty Website
ACCESSORIES
POWER CORD	3m
COMPUTER CABLE	1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
REMOTE CONTROL	Included
PASSWORD PROTECT STICKER	Included
AIR FILTER	Included
OWNER'S MANUAL	CD-ROM
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
