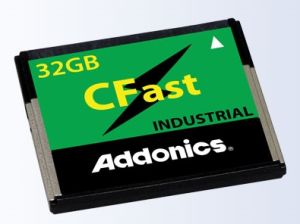

Addonics new CFast flash memory, redefines the high speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.
Addonics CFast flash memory is a revolution to the traditional Compact Flash Card, satisfying mobile digital devices storage needs, like PDAs, digital cameras, etc. Addonics CFast flash memory has a maximum transfer rate of 100MB/s which is twice as fast as the fastest Compact Flash flash memory while still maintaining the small original CF mechanical form factor. The new CFast flash memory breaks the speed bottleneck between the SSD and the device by using SATA interface. With Addonics CFast flash memory installed, there will be no waiting time for camera to catch up, and it will be much swifter to view pictures on camera or to copy them to computer.
Product Features
- The latest generation of Compact Flash cards using Serial ATA bus
- Great for the following applications: Industrial Embedded Systems, Medical Solutions, Point-of-Sales, Gaming Industry, Automation Solutions, and others
- Choice of 4GB - 32GB capacities
- SATA II 3.0Gbps interface
- Supports up to PIO4, MDMA2, UDMA6
- SLC flash type
- High speed
- Burst Rate up to 300 MB/s
- Read Seq. up to 105MB/s
- Write Seq. up to 90MB/s
- Size of CF-1
- RoHS Compliant
Specifications
- Flash type: SLC
- Form Factor: 36.4 X 42.8 X 3.6mm
- Type: CF Type I standard
- Alternative for expensive SATA SSD
- Replacement for CFC by SATA chipset
- Compliant with CFast Rev. 1.0 Specification
- SATA II Interface compliant
- Advanced Wear Leveling & Block Management
- S.M.A.R.T. support
- Power Fail Protection
- Security Features available
- Data transfer mode: up to PIO4, MDMA2, UDMA6
- Voltage: 3.3 V +/- 5%
- Power consumption: UDMA6 typ. 300mA, max. 420mA, Idle 220mA
- Operating shock rating: 1,500G
- Vibration: 20G
- Humidity: 85% RH 85C, 1000hrs
- Complies with Compact flash Association specification standards
- Operating Temperature: -40C to +85C
- Storage Temperature: -50C to +100C
- Warranty: 1 year
