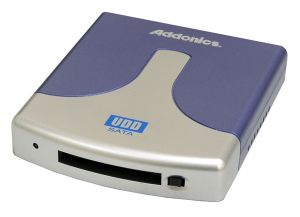

The Addonics Pocket UDD (Ultra DigiDrive) II is one of the fastest Readers/Writers for Flash media, PCMCIA hard drive and ATA Flash. Build on the same utilitarian concept of its predecessor Pocket UDD, the Pocket UDD II supports maximum throughput of 150 Mbytes/sec via eSATA or the latest USB 3.0 connection, cutting almost half of the data transfer time between the new high speed media and the computer.
By using an optional CF DigiAdapter or the Addonics Flash DigiAdapter Extreme, the Pocket UDD II can also be used like a regular flash reader to read/write to other popular Flash media - CF-I, CF-II, Smart Media, Memory stick, Secure Digital Card, Multimedia Card, Micro Drive or XD Card.
Features
- Choice of model for connection to computer via USB 3.0 / 2.0, eSATAp (Hybrid eSATA USB) or standard eSATA
- Powered from USB, eSATAp port or optional AC/DC power adapter

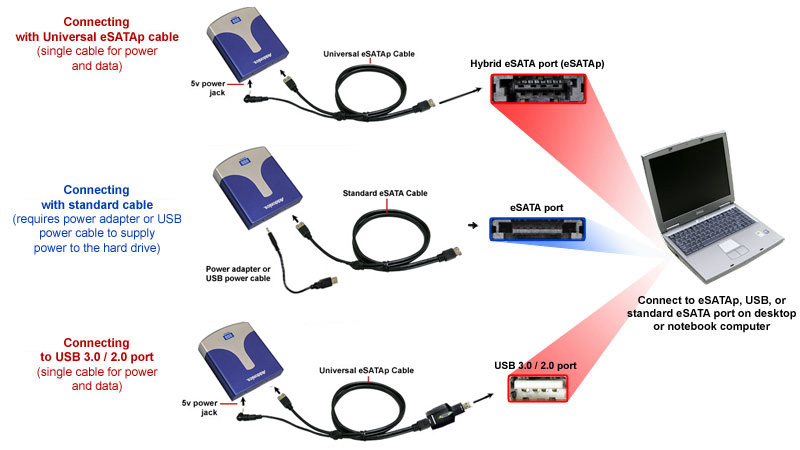

- Connection options and summary
|
connecting port
|
maximum throughput
|
power and data over one cable
|
bootable externally
|
optional adapter
|
| eSATA USB Hybrid port (EUHP) |
eSATA II - 3 Gbps
eSATA III - 6 Gbps
|
Yes, using the bundled Addonics universal eSATAp cable |
Yes |
No |
| eSATA port |
eSATA II - 3 Gbps
eSATA III - 6 Gbps |
No, require separate USB power cable or power adapter |
Yes |
No |
| USB 3.0 port |
5 Gbps |
Yes, using the bundled Addonics universal eSATAp cable |
Depending on OS and system BIOS support |
Yes, requires Addonics USB 3.0 - eSATA adapter |
| USB 2.0 port |
0.48 Gbps |
Yes, using the bundled Addonics universal eSATAp cable |
Depending on OS and system BIOS support |
Yes, requires Addonics USB 3.0 - eSATA adapter |
- Read and write directly to PCMCIA hard drive or ATA Flash
- Read and write to CF-I, CF-II, Micro Drive via optional CF-PCMCIA adapter
- Read and write to Secure Digital Card (SD, SDHC mini SD, SDXC), Memory Stick (MS, MS DUO, MS PRO DU), Smart Memory, Memory Stick, Multimedia Card, and XD Card via optional PCMCIA Flash DigiAdapter Extreme (ADPMAF-X)
- Complete Plug and Play (1)
- Boot system with Flash media via eSATA or eSATAp connection
- Up to 1500 Mbits/sec (150 MB/sec) data transfer*
- Supported OS:
- eSATA or eSATAp - any OS that supports SATA connection
- USB 3.0 / 2.0
- Windows XP, 2000 and later release
- Mac OS X and Linux kernel 2.4 or later release currently supports only USB 2.0
- RoHS Compliant
note: The Panasonic P2 card is a 32-bit Cardbus device and therefore is not supported with the Pocket UDD. The Desktop Card Drive, PCI Cardbus/PCMCIA Controller, and ExpressCard Cardbus Adapter all support the Panasonic P2 Card.
(1) Serial ATA hot swap feature works only with controllers basing on Silicon Image chip set from our in house testing. Other controllers that are not Silicon Image based may not support hot swap. You may consider adding one of the Addonics Serial ATA host controllers to your systems to ensure the hot swap capability. New controllers from Intel and other suppliers may finally support this feature. Please verify with your controller manufacturer if you need to have hot swap in your application. Hot swap is supported in Windows 2000 and XP only. On other OS, drive can be removed without crashing system. But replacing with a different drive can result in crashing the OS.
Specifications
|
|
Pocket UDD II
|
|
Interface:
|
USB 3.0/2.0, eSATAp (Hybrid eSATA USB), eSATA |
|
Type of slot:
|
I/II PCMCIA Card socket |
|
Number of slots
|
one |
|
Maximum data transfer rate:
(varies depending on computer hardware and type of media)
|
1500 Mbits/sec (150 MB/sec) - USB 3.0, eSATAp or eSATA
480 Mbits/sec (60 MB/sec) with USB 2.0
|
|
Supported OS
|
USB 3.0
|
Windows XP, 2000, 7 and later release |
|
USB 2.0
|
Window 98SE, ME, Vista, XP, 2000, 7, Linux kernel 2.4 and higher, Mac OS X and higher |
|
Serial ATA
|
DOS, Windows 95, NT4, 98SE, Me, 2000, XP, Linux kernel 2.4 and higher, Mac OS X and higher |
|
Dimensions:
|
4.63 in (W) x 5.4 in (D) x .95in (H) |
|
Power
|
Direct from USB
Optional AC/DC power adapter (with center negative power jack) |
|
Weight:
|
~ 8 oz without cable |
|
Storage Temperature:
|
-20 C to + 60 C |
|
Storage Humidity:
|
5 - 90% |
|
Warranty:
|
one year |
* maximum data transfer rate depends on type of media. Due to large number of flash memory types and suppliers, actual data transfer rate may also vary from brand to brand.
At the present moment, there is an incompatibility problem with following media: ATA flash with Ricoh or Hitachi controller chip, Viking ATA Flash, Olympus 32 MB XD, Fujitsu HDD Model 8340PA. and Viper 8340PA
System Requirements
- Pentium 200 Mhz or faster
- Minimum RAM 32 MB
- Minimum free hard disk space 10 MB
- One free USB 2.0, USB 1.1 or Serial ATA port
- BIOS supports for USB hard disk boot for the boot function
- One of the following Operating Systems: Windows 98/SE, Me, 2000, XP, Linux kernel 2.4 or higher, Solaris 8.
All specifications are subject to change without notice. All other products are trademarks of their respective owners.
