All stock codes associated to this product
SS1250XM2, SS-1250XM2, PSUSEAX1250WMGD
Full Modular Design (DC to DC)
Common to all X-Series power supplies, the new X-1050 and X-1250 feature the unique integrated DC connector panel with onboard VRM (Voltage Regulator Module) that enables not only near perfect D-to-D conversion with reduction of current loss / impedance and increase of efficiency but also a fully modular DC cabling that enables maximum flexibility of integration and forward compatibility.

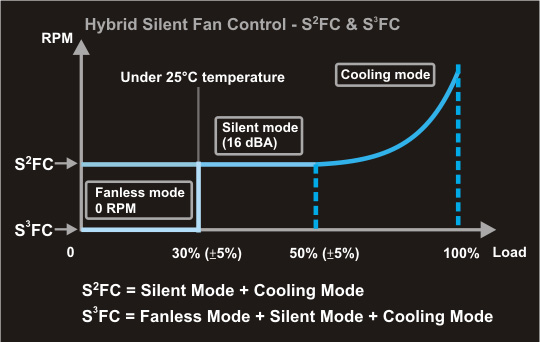

Seasonic Patented Hybrid Silent Fan Control-S2FC & S3FC
An industry first, advanced 3 phased (Fanless, Silent and Cooling Mode) thermal control balances between silence and cooling. In addition, for X-1050 & 1250 a selector switch is provided to allow you to select between the Seasonic S2FC control, without fanless mode or the S3FC fan control, with fanless mode.
Sanyo-Denki San Ace Silent Fan
The world-renowned Sanyo Denki Ball bearing fans are made of the highest quality components to ensure maximum quality and performance. The use of spoon shaped high-density plastic fan blades with smoothed leading edges, strict tolerance ball bearings and precision copper axel are just some features to ensure ultra-low noise performance and quality. In addition, the fan uses 3 balancing points, instead of the industry standard of 2 points, to ensure perfect balance and rotation. The Sanyo Denki fan is a perfect match to the class leading Sea Sonic Hybrid Silent Fan control for the absolute top performance of the industry.
Special Features -
1. 80PLUS Gold Certified Super High Efficiency
2. Full Modular Cabling Design
3. Patented DC Connector Module with Integrated VRM [Voltage Regulator Module]
4. DC to DC Converter Design
5. Seasonic Hybrid Silent Fan Control
6. Sanyo Denki San Ace Silent Fan
7. Conductive Polymer Aluminum Solid Capacitors
8. Highly Reliable 105 Japanese Brand Capacitors
9. Tight Voltage Regulation [3%]
10. Active Power Factor Correction [99% PF Typical]
11. High +12V Output
12. High Current Gold Plated Terminals
13. Dual Sided PCB Layout
14. Ultra Ventilation [Honeycomb Structure]
15. Multi-GPU Technologies Supported
16. All-in-One DC Cabling Design
17. Easy Swap Connector
18. Universal AC Input [Full Range]
19. 7 Years Warranty
Model: X-1050/1250 (SS-1050XM & SS-1250XM Active PFC F3)
1. Dimension: L190 x W150 x H86 mm

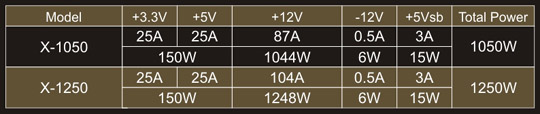

2. AC input & DC output voltages (Full Rang: 100-240V (Max 90-264V))

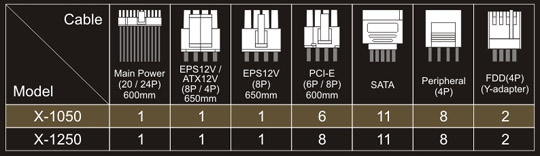

3. Wire Configuration
