SST-ST1200-G Evolution | SilverStone 1200W Strider Gold Evolution PSU - ATX 12V v2.3, EPS 12V, 139mm Fan, Modular Cables, SLI/Crossfire Ready, 80 PLUS Gold Certified, Magnetized Dust Filter

All stock codes associated to this product

SSTST1200GEvolution, SST-ST1200-G Evolution, PSSTST1200GE, PSST-ST1200G-E, 4710713968073

To make great power supplies even better, SilverStone engineers delved into the details with the Strider Gold series. In order to reduce the already low noise generated by the Strider Gold, they replaced the fan with SilverStones own Air Penetrator , which has superb cooling ability and is equipped with fluid dynamic bearing. This allowed for reprogramming of the fan controller to enable lower fan speed at any given loading condition compared to the predecessor. Various components were also re-tested and replaced with newer versions for minor boost in efficiency and performance. An excellent FF141 fan filter with magnets is even included in the package for use to reduce dust buildup.

With the fan and component upgrades, the Strider Gold Evolution series will again encompass wattage range from 750W to 1200W with 80 PLUS Gold level efficiency, 3% voltage regulation, 3% ripple & noise, and high amperage single +12V rail as its main features. For discerning users looking to get a top-notch power supply with all features covered and more, this is the perfect solution.

Features:

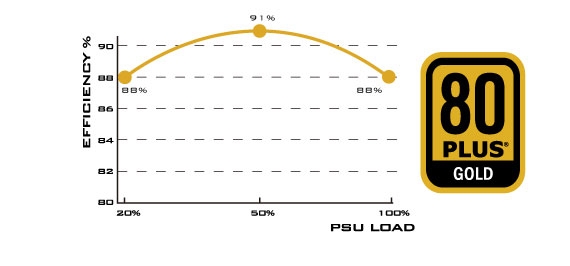

• 80 PLUS Gold certification with high efficiency 88%~91% at 20%~100% loading

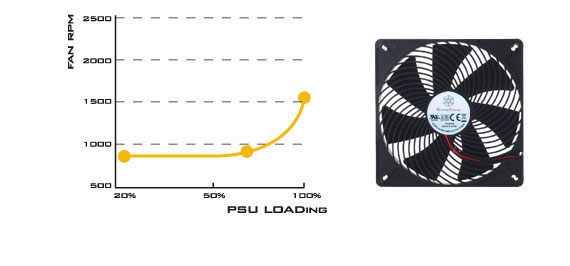

• Ultra silent 139mm Air Penetrator fan with fluid dynamic bearing

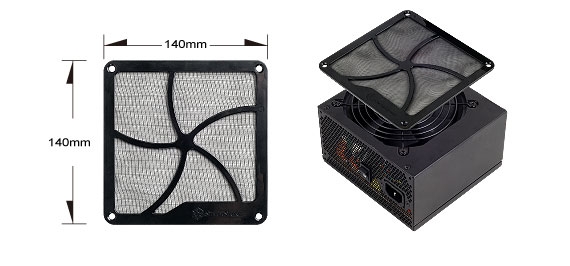

• FF141 magnetized fan filter included

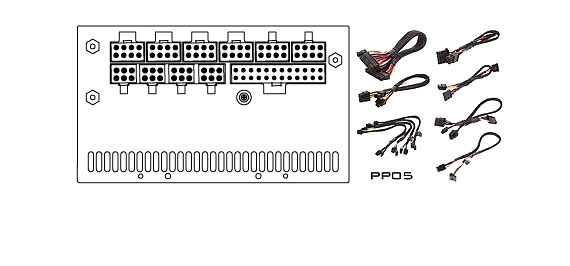

• 100% modular cables
• 1200W (1300W peak power) 24hour fully continuous power output with 40 operating temperature
• Class-leading single +12V rail with 100A

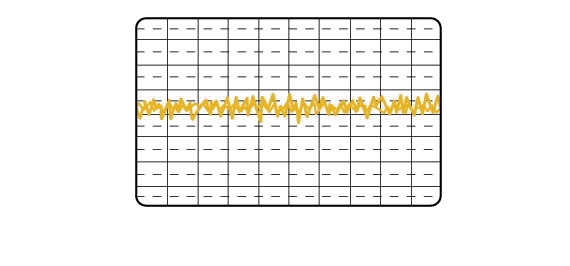

• Strict 3% voltage regulation and low ripple & noise
• Japanese main capacitors
• Dual EPS 8pin with multiple PCI-E 8pin and PCI-E 6pin connectors support
• Support ATX 12V 2.3 & EPS 12V

Specifications:

Model No.	SST-ST1200-G Evolution
Max. DC Output	1200W (Peak 1300W)
Load Range
+3.3V +5V +12V1 +5VSB -12V Max.(Amps) 25A 25A 100A 3.5A 0.3A Min.(Amps) 0.3A 0.3A 0.1A 0.1A 0A Range (%) 3% 3% 3% 5% 10% Line Reg.(%) 1% 1% 1% 1% 1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
combined +3.3, +5V	150W
combined +12V	1200W / 100A
Input Voltage	103V~264V
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC.PF>0.95 at Full Load
Efficiency	88%~91% at 20%~100% loading
MTBF	100,000 hours at 25Cat Full Load
Operating temperature	0C ~ 40C
Protection	Over Current Protection Over Power Protection Over Voltage Protection Over Temperature Protection Under voltage protection Short Circuit Protection No Load Protection
Connectors	1 x 24 / 20-Pin Motherboard connector 550mm 1 x 8 / 4-Pin EPS / ATX 12V connector 750mm 1 x 8 / 4-Pin EPS / ATX 12V connector 550mm 4 x 8/6-Pin PCIE connector 550mm 4 x 6-Pin PCIE connector 550mm / 150mm 16 x SATA connector 600mm / 150mm / 150mm/150mm 6 x 4-Pin Peripheral connector 600mm / 150mm / 150mm 2 x 4-Pin Floppy connector 600mm / 150mm / 150mm / 150mm
Color	Black (scratch resistant and lead-free paint)
Cooling System	Ultra silent 139mm Air Penetrator fan with fluid dynamic bearing
Noise Level	17dBA-28dBA
Dimension	150 mm (W) x 86 mm (H) x 180 mm (D)
Weight	3.295 kg
Certification	80 PLUS Gold
Other	GPU Support list
