All stock codes associated to this product
SS1050XM2, SS-1050XM2, PSUSEAX1050WMGD
Full Modular Design (DC to DC)
Common to all X-Series power supplies, the new X-1050 and X-1250 feature the unique integrated DC connector panel with onboard VRM (Voltage Regulator Module) that enables not only near perfect D-to-D conversion with reduction of current loss / impedance and increase of efficiency but also a fully modular DC cabling that enables maximum flexibility of integration and forward compatibility.

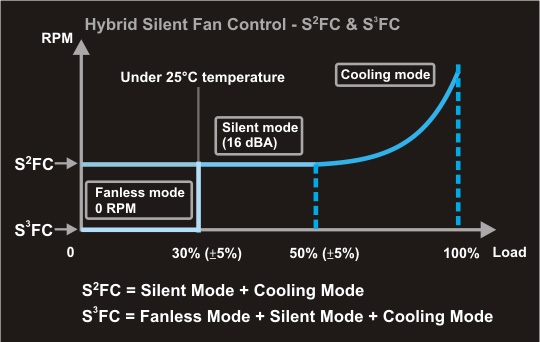

Seasonic Patented Hybrid Silent Fan Control-S2FC & S3FC
An industry first, advanced 3 phased (Fanless, Silent and Cooling Mode) thermal control balances between silence and cooling. In addition, for X-1050 & 1250 a selector switch is provided to allow you to select between the Seasonic S2FC control, without fanless mode or the S3FC fan control, with fanless mode.
Sanyo-Denki San Ace Silent Fan
The world-renowned Sanyo Denki Ball bearing fans are made of the highest quality components to ensure maximum quality and performance. The use of spoon shaped high-density plastic fan blades with smoothed leading edges, strict tolerance ball bearings and precision copper axel are just some features to ensure ultra-low noise performance and quality. In addition, the fan uses 3 balancing points, instead of the industry standard of 2 points, to ensure perfect balance and rotation. The Sanyo Denki fan is a perfect match to the class leading Sea Sonic Hybrid Silent Fan control for the absolute top performance of the industry.
Special Features
- 1. 80PLUS Gold Certified Super High Efficiency
- 2. Full Modular Cabling Desig
- 3. Patented DC Connector Module with Integrated VRM [Voltage Regulator Module]
- 4. DC to DC Converter Design
- 5. Seasonic Hybrid Silent Fan Control
- 6. Sanyo Denki San Ace Silent Fan
- 7. Conductive Polymer Aluminum Solid Capacitors
- 8. Highly Reliable 105 Japanese Brand Capacitors
- 9. Tight Voltage Regulation [3%]
- 10. Active Power Factor Correction [99% PF Typical]
- 11. High +12V Outpu
- 12. High Current Gold Plated Terminals
- 13. Dual Sided PCB Layout
- 14. Ultra Ventilation [Honeycomb Structure]
- 15. Multi-GPU Technologies Supported
- 16. All-in-One DC Cabling Design
- 17. Easy Swap Connector
- 18. Universal AC Input [Full Range]
- 19. 5 Years Warranty
Product Information
Model: X-1050/1250 (SS-1050XM & SS-1250XM Active PFC F3)

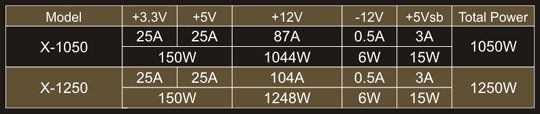

1. Dimension: L190 x W150 x H86 mm 2. AC input & DC output voltages (Full Rang: 100-240V (Max 90-264V)
1. Dimension: L190 x W150 x H86 mm
2. AC input & DC output voltages (Full Rang: 100-240V (Max 90-264V)

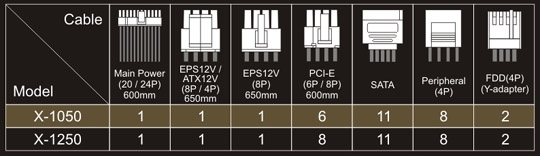

3. Wire Configuration
