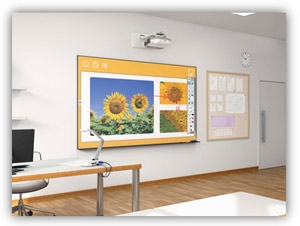

Capable of producing an interactive image size anywhere from 60 up to 102 diagonal (native WXGA) on nearly any wall, the Epson Ultra Short Range delivers an amazing work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with 2,600 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.

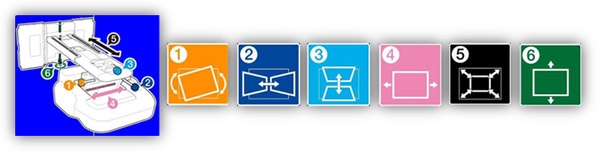

TheEB-470, 475W, 480 and 485W come complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image-correction diagrams projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.



With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Users can even project wirelessly from their iPad or iPhone thanks to Epsons innovative iProjection app. This app is available now via the Apple  iTunes  store.


Its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.




With the addition of the optional ELPAP07 Wireless LAN Unit, theEB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.


The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP. This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.


Further enhancing suitability to the modern education environment is the ability for theEB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.

PRODUCT NAME	Epson EB-475We
PRODUCT CODE	V11H455153
WHAT'S IN THE BOX
	Projector including 5m Power Cable, Remote Control, Batteries x 2, Projector Software Ver. 1.03b (CD ROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet.
TECHNOLOGY
Projection System	Epson 3LCD, 3-chip technology
LCD Panel	0.59-inch with MLA
OPTICAL
Zoom	1 - 1.35 (Optical Zoom)
Screen Size	60" to 102"
Projection Distance	74.3" screen 0.438m
Throw Ratio	0.27 (Zoom: Wide), 0.37 (Zoom: Tele)
Projection Lens F Number	1.80
Projection Lens Focal Length	3.71mm
Focus Method	Manual Focus
Offset	6.0:-1
Colour Light Output	2,600 Lumens
White Light Output	2,600 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	3,000:1
Lamp Hours	Normal/Eco: 3,000/4,000 Hours
Lamp Type	190W UHE
Keystone Correction	Vertical: -5 to +5 degrees Horizontal: -5 to +5 degrees
CONNECTIVITY

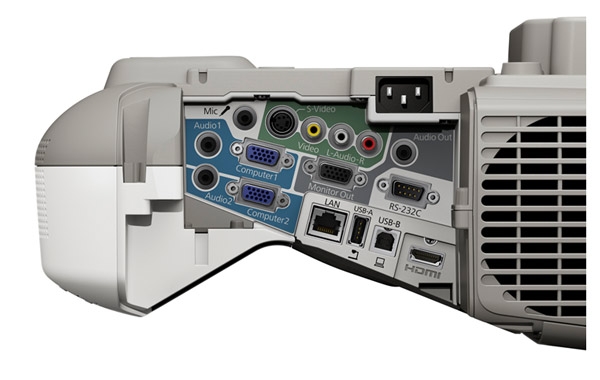

Input: Video	1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer	2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device	USB Type A Ver.2.0
Input: Three-In-One USB Display	1 x USB 2.0 type B
Input: Digital	1 x HDMI
Input: Audio	1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control	1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera	1 x USB 2.0 type B
Network I/O:	RJ45 x 1 (100Mbps)
Wireless Connectivity	Optional
Output: Video	D-sub 15 pin (monitor out black moulding)
Output: Audio	Stereo mini jack x 1
Speaker Output	16W
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
PC Free Presentations	No
USB Plug 'n Play	Yes
AV Mute Slide	No
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Padlock & Security cable hole Wireless LAN unit lock Password protect function
Colour Modes	Dynamic, Theatre
GENERAL
Dimensions D x W x H	375 x 367 x 143mm
Weight	5.4kg
Lamp Warranty	12 months or 750 hours*
Projector Warranty	3 Years
Power Consumption: Lamp on	Normal: 300W / Eco: 215W
Power Consumption: Standby	0.27W (communication off)
Noise Level	Normal: 35dB / Eco: 28dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L71	Lamp
	V12H003B29	Table Mount to suit EB-470/475W/475Wi/480/485W/485Wi
	V13H134A40	Air-Filter
	V12H418P13	Wireless LAN Adapter to suit EB-470/475W/475Wi/480/485W/485Wi
	V12H005M08	Quick Wireless Key to suit EB-470/475W/475Wi/480/485W/485Wi
	V12H522001	Interactive Pen ELPPN03A (orange) for EB-475Wi, EB-475Wie and EB-485Wi
	V12H523001	Interactive Pen ELPPN03B (blue) for EB-475Wi, EB-475Wie and EB-485Wi
	5YWEB485W	Additional 2 year warranty (upgrade to 5 years)
