All stock codes associated to this product
VE170QATG, VE170Q-AT-G, VE170Q, VE-170Q
Aten Video Extender 1024x768@60hz (300M) VGA gain control with Deskew
Description

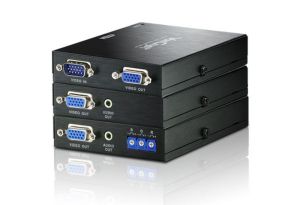

The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.
The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.
Transmitter Unit:
VE170T A/V Over Cat 5 Transmitter
Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
Features:
- Uses Cat 5e cable to connect the transmitter and receiver uints
- Supports one local and one remote display
- Long distance transmission up to 300 m
- Deskew Function (VE170RQ) allows you to synchronize the time delay of RGB signals to compensate for distance
- Superior video quality -
VE170R: 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (150 m);1024x768@ 60Hz (300 m)
VE170RQ: 1920x1200 @ 60Hz (150 m);1280x1024 @ 60Hz (300 m)
- Audio enabled (mono)
- Adjustable gain/compensation control
- BBuilt-in 8KV/15KV ESD protection
- Rack-mountable
- Complies with VESA FDMI mount standard
Specifications:
| Function |
VE170T |
VE170R |
VE170RQ |
| Connectors |
Video In |
1 x HDB-15
Male (Blue) |
N/A |
| Video Out |
1 x HDB-15 Female (Blue) |
| Audio In |
1 x Audio Jack
Female (Green) |
N/A |
| Audio Out |
1 x Audio Jack Female (Green) |
| Unit to Unit |
1 x RJ-45 Female |
| Power |
1 x DC Jack |
| LEDs |
Power |
N/A |
1 (Green) |
| Switch |
Manual Gain
Control |
N/A |
2 x Knob |
| RGB Tuner |
N/A |
N/A |
3 x Knob |
| Video |
1920 x 1200 @ 60Hz (30 m)
1600 x 1200 @ 60Hz (150 m)
1024 x 768 @ 60Hz (300 m) |
1920 x 1200 @ 60Hz
(150 m)
1280 x 1024 @ 60Hz
(300 m) |
| Cable Distance |
300 m |
| Power Consumption |
DC5.3V, 0.9W |
DC5.3V, 1.11W |
DC5.3V, 1.43W |
| Environment |
Operating Temp. |
0 - 50C |
| Storage Temp. |
-20 - 60C |
| Humidity |
0-80% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
0.25 kg |
Dimensions
(L x W x H) |
11.95 x 8.56 x 2.26 cm |
