All stock codes associated to this product
V11H455053, PRJEB475W, PRJ-EB475W

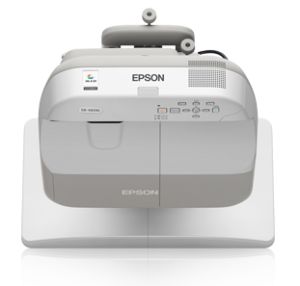

Epson EB-475W
Bright ultra-short-throw projector
Deliver high-quality presentations and reduce shadows with Epson's 2,600-lumen ultra-short-throw projector.
Bring your classroom presentations to life and engage students more with this ultra-short-throw projector. Easy to set up and operate, this device boasts low running costs to suit various budgets and, by connecting Epson add-ons, will help you further enhance your presentations.
Large projections
You can easily achieve a large projected widescreen image of up to 100 inches from a very short distance thanks to the EB-475W's ultra-short-throw capabilities.
Easy installation
Epson has designed this projector to be quick and easy to use. You simply turn on and plug in with the USB functionality. Horizontal keystone correction enables you to easily align straight images and it also has a 16W built-in speaker, so no need to attach to external audio devices.
Easy installation
Epson has designed this projector to be quick and easy to use. You simply turn on and plug in with the USB functionality. Horizontal keystone correction enables you to easily align straight images and it also has a 16W built-in speaker, so no need to attach to external audio devices.
Low costs
Running costs are kept low thanks to a long lamp life of 4,000 hours or four years*1, in eco mode, and 5,000-hour filter life.
High-quality images
Epson's 3LCD technology ensures high-quality images with its equally high White and Colour Light Output for vivid, natural colours and deep blacks, even in daylight. Presentations can be more engaging by plugging in the Epson ELP-DC06 USB Visualiser to show 3D objects close-up while the HDMI input also means high-definition content can be displayed with maximum clarity.
Key Benefits
Super bright output
2,600 lumens White/Colour Light Output
Ultra-short-throw
Reduces shadows
Large image
Up to 100 inches
Plug and play
Fast set-up and easy installation
Versatile
Connect additional Epson units
Specifications:
Technology
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch with MLA |
| Colour Light Output |
Normal/Eco: 2, 600 / 1, 800 lumens |
| White Light Output |
Normal/Eco: 2, 600 / 1, 800 lumens |
| Resolution |
WXGA - 1280 x 800 |
| Native Format |
16:10 |
| Contrast Ratio |
3000:1 |
| Lamp Hours |
Normal/Eco: 3, 000 / 4, 000 hours |
| Lamp Type |
190 W UHE |
| Keystone Correction |
Vertical/Horizontal: 5 degrees |
Optical
| Throw Ratio |
0.27:1 |
| Zoom |
Digital x1.0-1.35 |
| Screen Size |
60 inches to 100 inches (152.4cm to 254cm) |
| Projection Distance |
74-inch screen (187.96cm) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus |
Manual |
| Offset |
6.0:-1 |
Connectivity
| Input Video |
1 x RCA, 1 x S-Video, 2 x component (via D-sub 15-pin), 1 x HDMI |
| Input Computer |
2 x D-sub 15-pin (RGB), 1 x USB 2.0 type B, 1 x HDMI |
| Input: USB Memory Device |
1 x USB 2.0 type A |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input Audio |
2 x stereo mini jack, 1 x RCA, 1 x HDMI, 1 x USB 2.0 type B |
| Input HDMI |
1 x HDMI |
| Input: Microphone |
1 x stereo mini jack |
| Input: Control |
1 x RS232C |
| Input: Epson USB Visualiser |
ELPDC06 (direct connection via USB A) |
| Wireless Connection |
Optional (802.11 b/g/n): 1 x optional wireless LAN unit (ELPAP07) |
| Output Computer |
1 x D-sub 15-pin (RGB) |
| Output video |
1 x D-sub 15pin (Black) |
| Output Audio |
1 x stereo mini jack |
| Speaker Output |
1 x 16W |
Advanced Features
| Easy MP Network & Control |
 |
| EasyMP Network Projection |
|
| PC Less Function |
Yes - Slideshow |
| Instant Off |
|
| Direct Power On/Off |
|
| Security |
Padlock and security cable, kensington lock, password protection, wireless LAN unit lock |
| On Screen Menu |
35 Languages (Japanese / English / French / German / Italian / Spanish / Catalan / Portuguese / simplified Chinese / traditional Chinese / Korean / Dutch / Danish / Polish / Hungarian / Czech / Romanian / Slovenian / Norwegian / Swedish / Finnish / Russia / Ukrainian / Greek / Turkish / Arabic / Thai / Indonesian / Croatian / Slovak / Bulgarian / Malay / Vietnamese / Hebrew / Hindi) |
| Colour Modes |
Dynamic, presentation, theatre, photo, sports, sRGB, blackboard, whiteboard |
General
| Power Consumption Lamp On |
Normal/Eco: 275W / 215W |
| Power Consumption Stand By |
0.27W (communication off) |
| Dimensions W x D x H |
367 x 375 x 181mm |
| Weight |
5.4kg |
| Noise Level |
Normal/Eco: 35dB / 28dB |
| Operating Temperature |
5C to 35C (41F to 95F) |
| Operating Humidity |
20% - 80% humidity |
| Operating Altitude |
0m to 2286m (0ft to 7, 500ft) |
| Lamp Warranty |
1 year |
| Projector Warranty |
2 years |
