All stock codes associated to this product
VW22ATL, VW22ATL , 4716659184133

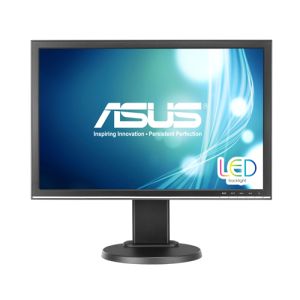

VW22ATL
Ergonomic Design for Visual Comfort
Overview
High-quality 22 16:10 widescreen
The 22" widescreen with 1680 x 1050 high resolution and wide viewing angle make the LCD monitor perfect for viewing high-quality DVD images. The VW22ATL can fit two A4 size pages at the same time, meaning ample screen space for different contents to help double your working efficiency.16.7 million display colors deliver rich and colorful images to surprise your eyes.
DVI Video Input with HDCP Supported
One of the first LCD monitors to incorporate DVI input with HDCP (High-Bandwidth Digital Content Protection) supported to ensure video signal integrity and image quality and prepare for next generation upgrade of computer operation system.
ASCR (ASUS Smart Contrast Ratio) Technology
Provides the high contrast ratio of 50,000,000:1, which can dynamically adjust contrast between black and white to provide sharper and brighter images - especially during games and movies.
QuickFit Virtual Scale
The ASUS-exclusive QuickFit built in the monitor provides real-size, photo, and grid mode on top of the operating windows on the screen. It can activated via a hotkey on monitor and used as a guide to accurately view and edit photos.
Supporting Formats:
- Photo: 8x10, 5x7, 4x6, 3x5, 2x2
- Alignment Grid

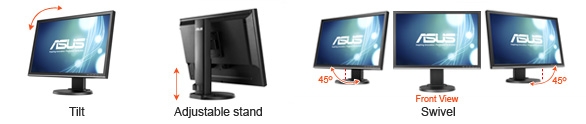

Ergonomic design for personal visual comfort
Its easy for you to reach a desired viewing angle with support of tilt, height adjustment and swivel functions.
Splendid Video Intelligence Technology
The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey.
User-friendly Designs
- Convenient key controls for functional set-up in the multi-language OSD.
- Built in stereo speakers
- Cable manager gets rid of tangling cables and wires.
- VESA Wall Mount Standard (100 x 100 mm ).
- KENSINGTON Security Lock.
|
|
|
|
Convenient hotkeys
|
Cable manager
|
Specifications
| Display |
Panel Size: Wide Screen 22.0"(55.9cm)
Panel Backlight / Type : WLED/ TN
True Resolution : 1680x1050
Pixel Pitch : 0.282mm
Brightness(Max) : 250 cd/
ASUS Smart Contrast Ratio (ASCR) : 50000000:1
Viewing Angle (CR10) : 170(H)/160(V)
Response Time : 5ms
Display Colors : 16.7M |
| Video Feature |
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes : 6 Modes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
QuickFit (modes) : Yes (Alignment Grid/Photo Modes)
HDCP support |
| Audio Features |
Stereo Speakers : 1W x 2 Stereo RMS |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Volume Adjustment
QuickFit |
| I/O Ports |
Signal Input : D-Sub, DVI-D
PC Audio Input : 3.5mm Mini-Jack |
| Signal Frequency |
Analog Signal Frequency : 31~83 KHz(H)/ 56~76 Hz(V)
Digital Signal Frequency : 31~83 KHz(H)/ 56~76 Hz(V) |
| Power Consumption |
Power Consumption(Typical):<33W
Power Saving Mode:<0.5W
Power Off Mode:<0.3W
Voltage:100-240V,50/60Hz |
| Mechanical Design |
Chassis Colors : Black
Tilt : +15~-5
Swivel : Yes
Pivot : Yes
Height Adjustment : Yes
VESA Wall Mounting : 100x100mm |
| Security |
Kensington lock |
| Dimensions |
Phys. Dimension with Stand(WxHxD):513.95 x 364.33 x 213.93mm
Phys. Dimension without Stand(WxHxD):513.95 x 340.79 x 63.34mm(For VESA Wall Mount)
Box Dimension (WxHxD):640 x 412x 212 mm |
| Weight |
Net Weight (Esti.):6.0kg
Gross Weight (Esti.):7.7kg |
| Accessories |
DVI cable
VGA cable
Audio cable
Power cord
Quick start guide
Warranty Card |
| Regulation Approval |
Energy Star, BSMI, CB, CCC, CE, C-Tick, ErP, FCC, Gost-R, J-MOSS, RoHS, TCO5.2, TUV-Ergo, TUV-GS, UL/cUL, VCCI, WEEE, WHQL (Windows 7) |
