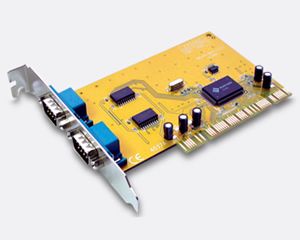

| Introduction |
| SUNIX SER4037A, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER4037A card has 32-bytes onboard FIFO buffer and compatible with 16C650 UART specification. SUNIX GoldenIO card series is designed with SUNIX UART controller, SUN1889 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications. |
|
|
|
|
| Specifications |
| Description |
| Product Description |
2 ports RS-232 Serial PCI Board |
|
| Serial Communication |
| Interface |
RS-232 |
| Controller |
SUN1889 (16C650 UART Compatible) |
| Bus Interface |
Universal PCI 64/32bit 3.3V/5V PCI and PCI-X PCI Ver 2.2/2.1 |
| No. of Port |
2-port |
| IRQ & IO |
Assigned by System |
| FIFO |
32 byte (Hardware) |
| Signal |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI |
| Baud rate |
50 bps to 115.2 Kbps |
| Data bit |
5,6,7,8 |
| Stop bit |
1,1.5,2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS (Hardware) , XON/XOFF(Software) |
| Protection |
2KV ESD protection for each signal Human Body Model (HBM) |
|
| |
| Driver Support |
|
| Microsoft Client |
Windows XP/Vista/7 (X86/X64) |
| Microsoft Server |
Windows 2000/2003/2008 (X86/X64) |
| Microsoft Embedded |
Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 |
| Linux |
Linux 2.4.x / 2.6.x / 3.x |
| DOS |
DOS |
|
| |
| Regulatory Approvals |
| Hardware |
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS |
| Software |
Microsoft WHQL Windows
Microsoft Client: XP/Vista/7 (X86/X64)
Microsoft Server: 2000/2003/2008 (X86/X64) |
|
| |
| |
| Environment |
| Operating Temperature |
0 to 60 C ( 32 to 140CF ) |
| Operating Humidity |
5% to 95% RH |
| Storage Temperature |
-20 to 85 C ( -4 to 185 F ) |
|
| |
| |
| |
| Dimension(Unit = mm) |
| PCB Dimension |
120 x 78 mm |
| Bracket |
Standard 121 |
|
|
|
|
|
|
