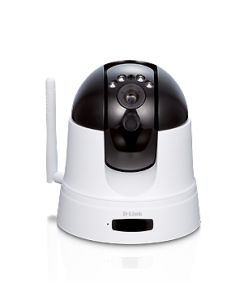

D-Link DCS-5222L HD Wireless N Pan & Tilt Network Camera







D-Link DCS-5222L is a pan and tilt wireless network camera, ideal for small and medium business applications and remote monitoring over the Internet. It gives you detailed 24-hour remote surveillance of a large area by using a megapixel high-resolution HD image sensor for high-quality video and a built-in IR illuminator for low-light surveillance. The DCS-5222L can also be connected to your network wirelessly, allowing you to place the camera anywhere, and eliminating the need to install network cabling.



The DCS-5222L includes a built-in CPU, allowing it to be used as a complete, standalone surveillance system. Recordings can be made continuously, whenever movement is detected, or according to a schedule you define. E-mail notifications can be sent when specific events occur, keeping you informed of what is going on. The built-in microSD slot allows the camera to run independently, or can be used to continuously record video even if the network connection is lost. The DCS-5222L can also be used as part of a multi-camera surveillance system through the included D-ViewCam software, which supports up to 32 cameras.



With sharp, responsive pan/tilt movement and digital zoom, the D-Link HD Wireless N Pan & Tilt Network Camera gives you full control, so you can quickly scan a wide area from a variety of angles, and 4x digital zoom1lets you zoom in for more detail. The DCS-5222L can also be set to automatically move to specific preset positions, allowing the camera to patrol and secure a wide area.



D-Links convenient mydlink zero-configuration setup gets you up and running in no time just connect the DCS-5222L, then register the device on the mydlink website. The DCS-5222L will then automatically configure itself and connect to the mydlink service, which gives you convenient access to your video feeds through the mydlink website. You can even view your camera feeds on your smart phone or tablet with the mydlink iOS and Android apps so you can stay in touch while on the go2.



Equipped with a 1.0 lux CMOS sensor, the DCS-5222L HD Wireless N Pan & Tilt Network Camera delivers exceptional picture quality even in low-light conditions. The motorized pan/tilt controls and 4x digital zoom allow you to monitor a large area and zoom to view fine details, and the PIR sensor detects movement in the area and can trigger recordings. The DCS-5222L can record snapshots and video to your computer, a network storage drive, or a microSD card. Camera footage can be viewed remotely through a web browser, or through a mobile device running the mydlink app for iOS and Android. Furthermore, the camera provides a Privacy Mode option, which allows you to set a schedule to enter privacy mode, which rotates the lens backwards to protect your privacy.

The DCS-5222L uses 802.11n to provide wireless speeds of up to 300 Mbps and a large coverage area. This creates a solid wireless connection to your network, giving you the freedom to place the camera wherever you need it in your home without the need to install a network cable at the installation location.



D-ViewCam IP video management software is included with the DCS-5222L, and allows you to manage up to 32 cameras simultaneously from your computer. View multiple camera video feeds simultaneously, review previous surveillance footage, send automated e-mail alerts, record video to your hard drive when motion is detected, and much more.





1/4” megapixel Progressive Cmos sensor
5 meter ir illumination distance
minimum illumination 0 lux with ir leD on
built-in infrared-Cut removable (iCr) filter module
built-in Passive infra-red (Pir)
fixed length 4.57 mm
aperture f1.9
angle of view:
(H) 45.7°
(v) 29.5°
(D) 52.9°
built-in microphone



Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable shutter speed, brightness, saturation, contrast, mirror, flip
Three configurable privacy mask zones



JPeG for still images
H.264/mPeG4/mJPeG format simultaneous compression
H.264/mPeG4 multicast streaming

16:9 (support frame rate up to 30 fps)
1280 x 720
640 x 352
320 x 176
160 x 80

Pan range: -170° to 170°
Tilt range: -25° to 90°
Digital Zoom: 4x2



manual pan speed: 1-10
manual tilt speed: 1-10
Pre-set setting: 10 points



aDPCm, PCm

iPv4, arP, TCP, uDP, iCmP, DHCP Client, NTP Client (D-link),
DNs Client, DDNs Client (D-link), smTP Client, fTP Client, HTTP
server, PPPoe, rTP, rTsP, rTCP, 3GPP



Configuration accessible via web browser
Take snapshots/video clips and save to local hard drive via web browser

administrator and user group protected
Password authentication
HTTP and rTsP digest encryption

record video continuously
record video according to a weekly schedule
record video when motion is detected
upload snapshots/video clips via e-mail
upload snapshots/video clips via fTP


ieee 802.11n

operating system: microsoft Windows 7/vista/xP sP3
browser: internet explorer 6 or higher, firefox 3.5, safari 4.0

mobile devices with a 3GPP player, such as Packet video

Player 3.0, QuickTime 6.5, or real Player 10.5

mydlink™ app requires a mobile device running ios or android

12 v/1.25 a, 50/60 Hz

10.5 watts maximum
