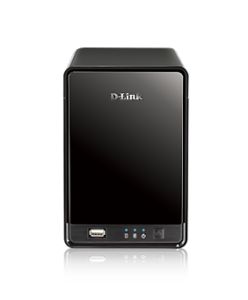

DNR322L | D-Link DNR-322L Network Video Recorder





Access Your Recorded Video Footage Anywhere Anytime With mydlink Network Video Recorder







The mydlink Network Video Recorder is a standalone storage device that can record video simultaneously from up to nine network cameras without requiring users to turn on their PC. This device not only supports mydlink cameras but can be used to record footage from a range of D Link business cameras, which makes it an ideal DIY security solution for both homes and small businesses. With mydlink technology, the DNR-322L can be accessed remotely via a web browser from any computer connected to the Internet, just by logging into your mydlink account. Once connected, you can watch live video from any of your cameras, or playback recorded footage with the intuitive on-screen controls. With no set up fees or subscription costs, home and business users have the most flexible way to ensure their properties are secure.



With the mydlink Network Video Recorder it has never been easier to create a complete monitoring system for your home or small business. Unlike other solutions that require users to change their network settings to access their NVR from the Internet, the DNR-322L is simple to manage and access. Simply run the installation CD, assign your NVR to your mydlink account or if you are a first time user, set one up, and you are ready to go. The DNR-322L will even automatically discover your D-Link cameras in your network for you.



The DNR-322L is the perfect solution for small businesses or people that travel and need to leave their properties unattended for long periods of time. With 2 bays for standard 3.5 inch, inexpensive Hard Drives, you can choose the recording capacity that best suits your needs. For example, two 3TB hard drives can store high-quality audio and video from four DCS-942L cameras for up to 6 weeks. The DNR-322L can be set up to record only during certain periods of time (for example, at night or during the weekends), or based on events, like on motion detection, so the recording capacity can be extended much longer.



Users have a variety of options for viewing and organising camera footage on-screen. If multiple cameras have been set up in a property, users can simply drag and drop video from selected cameras to the viewing area. Camera names and recording statuses are clearly displayed for easy reference. Users can control pan/tilt/zoom (PTZ) functions from within the interface or by directly clicking on the video.



User accounts can be set up to limit access to the NVR or assign different access privileges for users by specifying the cameras they are allowed to access. For added security (for example to protect business premises) the recorded footage can be backed up to external storage on a different location. The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded video onto two separate hard drives. So your video is safe even if one of the Hard Drives fails.



The mydlink Network Video Recorders interface allows for straightforward configuration including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. The NVR also provides event recording based on specific triggers such as when motion is detected.



The Network Video Recorder with mydlink is part of D-Link Green, D-Links programme for providing eco-friendly alternatives without compromising performance: if the Hard Drives are not used in a configurable period of time, or data is not being transmitted, the DNR-322L will enter stand-by mode to save power. Also, the silent fan will adapt its speed depending on the Hard Drives temperature.



linux



Supported cameras
Supports all d-link network cameras. includes support for auto-discovery, and up to 3 megapixel resolution



max. capacity

(nVr mode only):

H.264 1080p (bitrate): 90 mbps
H.264 720p (bitrate): 90 mbps
mjpeg 1080p (frame rate): 90 fps
mjpeg 720p (frame rate): 192 fps

max. capacity (nVr+file Server mode):



H.264 1080p (bitrate): 68 mbps

H.264 720p (bitrate): 68 mbps

mjpeg 1080p (frame rate): 70 fps

mjpeg 720p (frame rate):150 fps




upnp

Synchronized audio & video recording



H.264, mpeg-4, m-jpeg (for supported cameras)



Resolution, quality, frame rate, enable audio, go to camera interface



record by schedule, manual, and event-based recording

motion-triggered recording



Supported via ie explorer (max. 9 simultaneous channels)
Supports mydlink portal (max. 1 simultaneous channel)

live view, preset/go, patrol, focus, ptZ functions, snapshot, full screen, digital zoom, e-map, multiple view (1/4/6/9/16/25/36/48) with duplicated carrier





Playback with normal, fast forward/rewind and step forward/rewind





Supported via ie and nVr client

playback system with timeline gui, search by event, area, cameras, date and time

internet explorer and nVr client support 1-channel playback

digital zoom




Auto recycling when disk storage is full




export videos to aVi or aSf file
export images to bmp or jpg file

additional accounts can be created to allow user access to the system, and specify authorization for camera channels, ptZ, etc

Set the system time (d-link ntp, input time, sync with computer, daylight Saving time)



d-link ddnS server support

remote software can backup raw data to redundant storage

auto backup of previous day’s video to ftp server

camera status, System status

Still picture emap support





ipV4, arp, tcp, udp, icmp
dHcp client
ntp client (d-link)
dnS client
ddnS client (d-link)
Smtp client
Http Server
pppoe
upnp
ip filtering




mydlink web portal - internet explorer 7 or newer

Http web browser - internet explorer 7 or newer (32 bit oS only)

nVr Search utility




ieee 802.3/u/z
auto mdi/mdi-x
Sata i, ii



Hard disk control & management via pc
reformat disk
raid 0

raid 1
jbod

two reSet modeS
reset firmware gui button
Hw reset button (hold for 5 seconds)

128 mb

ram
256 mb ddr ii

gigabit ethernet lan port (10/100/1000 mbps)



rj45 port
dc-in jack
uSb port for upS status update (optional)

power adapter
dc 12V/4 a

reset to factory default



115 x 146.4 x 178.5 mm
(4.53 x 5.76 x 7.03 inches)



 0.875 kg (1.93 lbs)

Operating temperature
0° to 55° c (32° to 131° f)



-20 to 70 °c (-4 to 158 °f)

Humidity
Operating: 5% to 90% (non-condensing)





ce
fcc
roHS


dnr-322l 2-bay mydlink nVr
power adapter
ethernet cable
Quick installation guide
power cable Holder
cd-rom with:
Software
product documentation
