Altusen 16 Port Cat 5 Rackmount KVM over IP Switch - 17" LCD Console
KL1516AIM-AX-AU

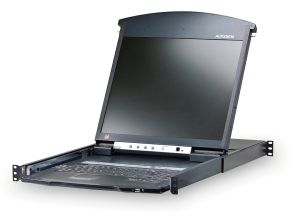

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.
The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.
Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapter Cables to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.
Enhanced features include a Panel Array Mode™ that displays the video output of up to 16 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1516Ai is an ideal solution for your server room management.
Features:
Hardware
High port density RJ-45 connectors for up to 16 ports in a 1U housing
A dedicated USB port directly connects to a laptop for easy Console operation
One bus for remote KVM over IP access
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Multiplatform support - Windows, Mac, Sun and Linux
Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*
Daisy-chain up to 15 additional units control up to 256 computers from a single console
* With KVM Adapter Cable KA7000 series.
Management
Up to 64 user accounts up to 32 users simultaneously share the control
End session feature administrators can terminate running sessions
Event logging and Windows-based Log Server support
Local Log Event
Adapter ID stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ALTUSEN CC2000 Management software
Power Over the NET integration for remote power control
Firmware upgradeable
IPv6 capable
Ease-to-Use Interface
Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode
Keyboard broadcast keyboard input can be duplicated on all the attached servers
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
128-bit SSL encryption to protect password when users log in
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
IP/MAC Filter for enhanced security protection
Configurable user and group permissions for server access and control
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen or scalable video display
Message Board for communication among remote users
Mouse DynaSync - automatically synchronizes the local and remote mouse movements
On-screen keyboard with multilanguage support
Exit Macros support
BIOS-level access
|
Computer
Connections
|
Direct
|
16
|
|
Max.
|
256 (via Daisy-Chain)
|
|
Console
Connections
|
Local
|
1
|
|
Remote
|
|
Port Selection
|
OSD, Hotkey, Pushbutton
|
|
Connectors
|
Console Ports
|
Keyboard
|
1 x 6-pin Mini-DIN Female (Purple)
1 x USB Type A Female (White)
|
|
Video
|
1 x HDB-15 Female (Blue)
|
|
Mouse
|
1 x 6-pin Mini-DIN Female (Green)
1 x USB Type A Female (White)
|
|
KVM Ports
|
16 x RJ-45 Female
|
|
Daisy Chain
|
1 x DB-25 Male (Black)
|
|
Power
|
1 x 3-prong AC socket
|
|
F/W Upgrade
|
1 x RJ-11 Female (Black)
|
|
External Mouse
|
1 x USB Type A (Female)
|
|
LAN
|
1 x RJ-45 Female
|
|
PON
|
1 x RJ-45 Female
|
|
Switches
|
Power
|
1 x Rocker
|
|
LCD Power
|
1 x Pushbutton
|
|
LCM Adjustment
|
4 x Pushbutton
|
|
Port Selection
|
16 x Pushbutton
|
|
F/W Upgrade
|
1 x Slide
|
|
KVM Reset
|
1 x Semi-recessed Pushbutton
|
|
Station
|
2 x Pushbutton
|
|
LEDs
|
Station
|
2 x 7 Segments (Orange)
|
|
Port
|
On Line
|
16 (Green)
|
|
Selected
|
16 (Orange)
|
|
Power
|
1 (Blue)
|
|
Lock
|
Num
|
1 (Green)
|
|
Caps
|
1 (Green)
|
|
Scroll
|
1 (Green)
|
|
Link
|
1 (Green)
|
|
10/100 Mbps
|
1 (Orange/Green)
|
|
LCD Power
|
1 (Orange)
|
|
Emulation
|
Keyboard / Mouse
|
PS/2; USB
|
|
Video
|
1280 x 1024 @ 75 Hz; DDC2B (50 m, Local);
1600 x 1200 @ 60 Hz; DDC2B (40 m, Remote)
|
|
Scan Interval
|
1255 sec.
|
|
Input
|
100240V AC, 50/60 Hz, 1A
|
|
Power Consumption
|
120V, 33W / 230V, 34W (17);
120V, 34W / 230V, 36W (19)
|
|
Environment
|
Operating Temp.
|
0 - 40C
|
|
Storage Temp.
|
-20 - 60C
|
|
Humidity
|
080% RH, Non-condensing
|
|
Physical
Properties
|
Housing
|
Metal
|
|
Weight (17)
|
16.00 kg
|
|
Dimensions
(L x W x H)
|
70.12 x 48.00 x 4.40 cm
|
