All stock codes associated to this product
, KL1516AINAXAAU, KL1516AIN-AXA-AU

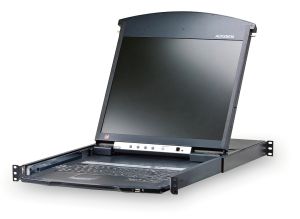

Altusen 16 Port Cat 5 Rackmount KVM Over IP Switch - 19" LCD Console
KL1516AIN-AX-AU
Description
The KH1516Ai Cat 5 High-Density KVM Over the NET™ switches offer16 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.
The KH1516Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance - up to 50m* without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.
In addition to TCP/IP connectivity, the KH1516Ai provides console ports for a locally attached USB or PS/2 console and a Net.
Hardware
High port density RJ-45 connectors for up to 16 ports in a 1U housing
A dedicated USB port directly connects to a laptop for easy Console operation
One bus for remote KVM over IP access
Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Multiplatform support - Windows, Mac, Sun and Linux
Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*
Daisy-chain up to 15 additional units control up to 256 computers from a single console
* With KVM Adapter Cable KA7000 series.
Management
Up to 64 user accounts up to 32 users simultaneously share the control
End session feature administrators can terminate running sessions
Event logging and Windows-based Log Server support
Local Log Event
Adapter ID stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ALTUSEN CC2000 Management software
Power Over the NET integration for remote power control
Firmware upgradeable
IPv6 capable
Ease-to-Use Interface
Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
Panel Array Mode
Keyboard broadcast keyboard input can be duplicated on all the attached servers
Advanced Security
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
128-bit SSL encryption to protect password when users log in
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
IP/MAC Filter for enhanced security protection
Configurable user and group permissions for server access and control
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen or scalable video display
Message Board for communication among remote users
Mouse DynaSync - automatically synchronizes the local and remote mouse movements
On-screen keyboard with multilanguage support
Exit Macros support
BIOS-level access
|
Computer
Connections
|
Direct
|
16
|
|
Max.
|
256 (via Daisy-Chain)
|
|
Console
Connections
|
Local
|
1
|
|
Remote
|
|
Port Selection
|
OSD, Hotkey, Pushbutton
|
|
Connectors
|
Console Ports
|
Keyboard
|
1 x 6-pin Mini-DIN Female (Purple)
1 x USB Type A Female (White)
|
|
Video
|
1 x HDB-15 Female (Blue)
|
|
Mouse
|
1 x 6-pin Mini-DIN Female (Green)
1 x USB Type A Female (White)
|
|
KVM Ports
|
16 x RJ-45 Female
|
|
Daisy Chain
|
1 x DB-25 Male (Black)
|
|
Power
|
1 x 3-prong AC socket
|
|
F/W Upgrade
|
1 x RJ-11 Female (Black)
|
|
External Mouse
|
1 x USB Type A (Female)
|
|
LAN
|
1 x RJ-45 Female
|
|
PON
|
1 x RJ-45 Female
|
|
Switches
|
Power
|
1 x Rocker
|
|
LCD Power
|
1 x Pushbutton
|
|
LCM Adjustment
|
4 x Pushbutton
|
|
Port Selection
|
16 x Pushbutton
|
|
F/W Upgrade
|
1 x Slide
|
|
KVM Reset
|
1 x Semi-recessed Pushbutton
|
|
Station
|
2 x Pushbutton
|
|
LEDs
|
Station
|
2 x 7 Segments (Orange)
|
|
Port
|
On Line
|
16 (Green)
|
|
Selected
|
16 (Orange)
|
|
Power
|
1 (Blue)
|
|
Lock
|
Num
|
1 (Green)
|
|
Caps
|
1 (Green)
|
|
Scroll
|
1 (Green)
|
|
Link
|
1 (Green)
|
|
10/100 Mbps
|
1 (Orange/Green)
|
|
LCD Power
|
1 (Orange)
|
|
Emulation
|
Keyboard / Mouse
|
PS/2; USB
|
|
Video
|
1280 x 1024 @ 75 Hz; DDC2B (50 m, Local);
1600 x 1200 @ 60 Hz; DDC2B (40 m, Remote)
|
|
Scan Interval
|
1255 sec.
|
|
Input
|
100240V AC, 50/60 Hz, 1A
|
|
Power Consumption
|
120V, 33W / 230V, 34W (17);
120V, 34W / 230V, 36W (19)
|
|
Environment
|
Operating Temp.
|
0 - 40C
|
|
Storage Temp.
|
-20 - 60C
|
|
Humidity
|
080% RH, Non-condensing
|
|
Physical
Properties
|
Housing
|
Metal
|
|
Weight (19)
|
16.25 kg
|
|
Dimensions
(L x W x H)
|
70.12 x 48.00 x 4.40 cm
|
