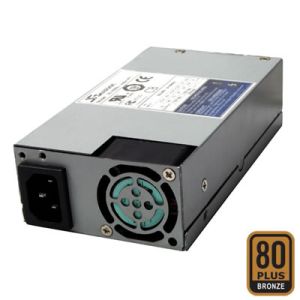

Seasonic 250W SS-250SU Power Supply - ATX12V, Super Low Noise Fan Control, APFC F0, 80 PLUS Bronze Certified
  • Mini 1U

IMG 1 of 1
No Longer Available
Part Number:
203467
(?) Brand:
Seasonic
Manuf No:
PSUSEA250SUAPFC
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PSUSEA250SUAPFC, PSUSEA250SUAPFC1, PSUSEA250SUAPFC-1
Seasonic SS-250SU APFC F0 80+ Mini 1U 250W Power Supply

Features:

  • Specification compliance: Flex ATX v1.0
  • Forward converter circuit
  • High efficiency and reliability
  • Zero minimum load on 3.3V rail
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
  • PFC harmonics compliance: EN61000-3-2 +A1 +A2

Dimension:

  • L150 x W81.5 x H40.6mm
  • (5.9” x 3.2” x 1.6”)
  • Connectors:
  • Main Power (24/20P) x 1
  • ATX12V (4P) x 1
  • Peripherals: SATA, HDD, FDD

Electrical Specifications:

  • Input frequency: 50/60 Hz
  • Inrush current, cold start: 80A max.
  • Efficiency, at normal input voltage: > 80% (250SU Only)
  • Dielectric withstand, input to frame/ground: 1800VAC, 1sec
  • Dielectric withstand, input to : 1800VAC, 1sec
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full load@25? amb. : >100K hours (Excluding the DC fan)
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB, CCC, BSMI, GOST-R
  • EMC: CE, FCC

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
