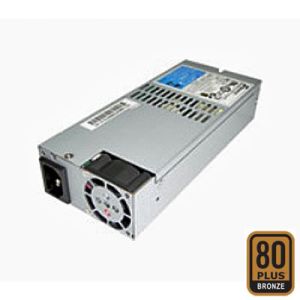

Seasonic 300W SS-300 M1U Power Supply - ATX 12V v2.31, EPS 12V, Customized Modular Cables, Active PFC, 80 PLUS Bronze Certified
  • Mini 1U

IMG 1 of 1
No Longer Available
Part Number:
203468
(?) Brand:
Seasonic
Manuf No:
SS-300M1U
SS300M1U
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SS300M1U, SS-300M1U, PSUSEA300M1U80G, 4711173871828
Seasonic SS-300M1U Active PFC Mini 1U 300W Power Supply

PSUSEA300M1U80G

Features:

  • Specification compliance:ATX12V v2.31 & EPS12V
  • Support the latest Intel & AMD Socket
  • DC to DC converter design
  • High efficiency and reliability
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off

  • Dimension:L190 x W81.5 x
  • H40.5mm (7.5” x 3.2” x 1.6”)
  • Connectors:
  • Customized modular cables

Electrical Specifications:

  • Input frequency: 47/63 Hz
  • Inrush current, cold start: 100A max.
  • Efficiency, at normal input voltage: > 87%
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full load @ 25? amb. : >100K hours (Excluding the DC fan)
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB
  • EMC: CE, FCC, C-tick
