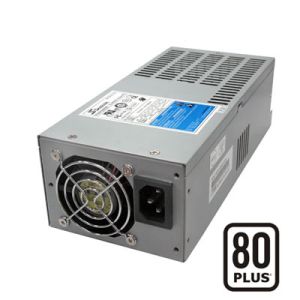

Seasonic 400W SS-400H2U Power Supply - EPS 12V, 38mm Fan, Active PFC, Smart & Silent Fan Control (S2FC), High Reliability Ball Bearing Fan, 80 PLUS Bronze
  • 2U

IMG 1 of 1
No Longer Available
Part Number:
203475
(?) Brand:
Seasonic
Manuf No:
PSUSEA400H2U80P
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, PSUSEA400H2U80P
Seasonic SS-400H2U Active PFC 80+ 2U 400W Power Supply

SKU: PSUSEA400H2U80P

Features:

  • Specification compliance: Intel EPS12V
  • Forward converter circuit
  • High efficiency and reliability for industrial level
  • Easy swap connector design
  • High reliability ball bearing fan
  • Low ripple & noise
  • Smart & Silent Fan Control (S2FC)
  • Zero minimum load on 3.3V rail
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
  • PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

Dimension:

  • L225 x W100 x H40mm (8.9” x 3.9” x 2.7”)

Fan type:

  • 38 x 38mm

Connectors:

  • Customized modular cables

Electrical Specifications:

  • Input frequency: 50 / 60 Hz
  • Inrush current, cold start: 100A max.
  • Hold up time, full load: 12ms. typical
  • Efficiency, 220-240VAC, full load: 83% typical
  • Efficiency, 100-120VAC, full load: 80% typical
  • Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
  • Dielectric withstand, input to output: 1800VAC, 1sec.
  • Line regulation: +/-1% typical
  • Load regulation: +/-5% typical
  • Cross regulation: +/-5% typical
  • Ripple / noise: 1%
  • MTBF, full load@25? amb. (Excluding the DC fan):>100K hours
  • Power Factor Correction: Active PFC 99% typical
  • Safety: CUL, TUV, CB, CCC, BSMI
  • EMC: CE, FCC, C-tick

No additional files, specification sheets, guides or documentation found for product.
