AX1200i Digital ATX Power Supply — 1200 Watt 80 PLUS® Platinum Certified Fully-Modular PSU

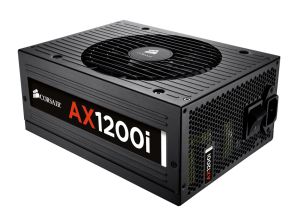

Corsair AX1200i Digital ATX Power Supply: complete digital control

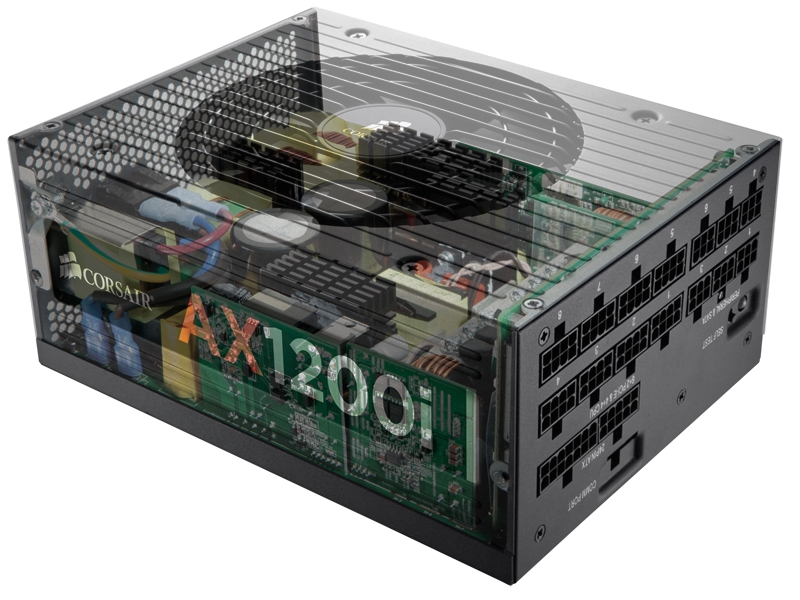

The revolutionary AX1200i is the first desktop PC power supply to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX1200i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS® Platinum Efficiency, and clean, stable power.
SKU# CP-9020008
Overview
Corsair AX1200i Digital ATX PSU: complete digital control
The revolutionary AX1200i is the first desktop PC power supply to use digital (DSP) control and Corsair Link to bring you an unprecedented level of monitoring and performance customization. The DSP in the AX1200i makes on-the-fly adjustments for incredibly tight voltage regulation, 80 PLUS® Platinum Efficiency, and clean, stable power.
Real-time monitoring and control with Corsair Link
Put the AX1200i under your control by connecting it directly to a USB header on your motherboard with the included cable, or to a Corsair Link Commander (available separately). Then, download the free Corsair Link Dashboard software for unrivaled power supply monitoring and control options.

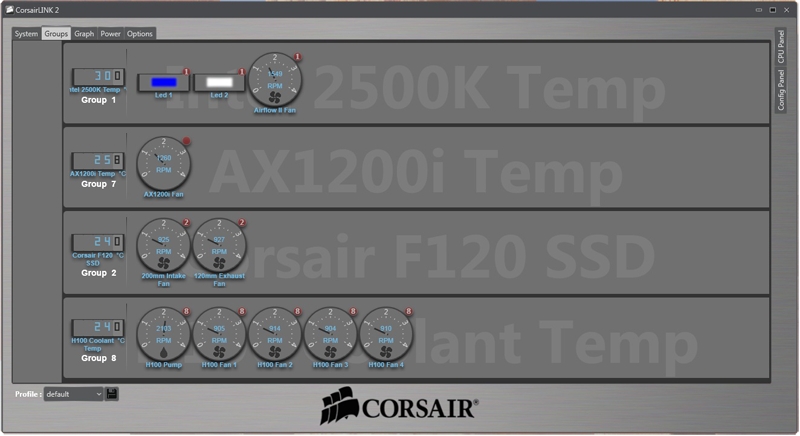

Monitor power input and output, efficiency, fan speed, and internal temperature, directly from the Windows based application. Or, take it to the next level and set up and modify fan speed profiles, or even select from virtual “single rail” or “multi-rail” software modes, with selectable OCP points.
Stable and Reliable Power Delivery
DSP-controlled, real-time voltage regulation helps ensure that your valuable components receive clean, stable power.
Less Heat and Lower Operating Cost

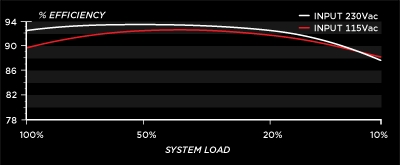

AX1200i's extreme efficiency earns it coveted 80 PLUS® Platinum certification. Less wasted power means minimal excess heat. This can reduce the strain on your other components, and it can save you money over the long run in the form of lower power bills.
Easy installation and cable routing, with better airflow
The fully modular cable set allows you to use only the cables you need, and the flat design makes cable routing much easier in tight spaces. You get a clean-looking system build with cables out of the airflow path for efficient space usage that's energy efficient as well.

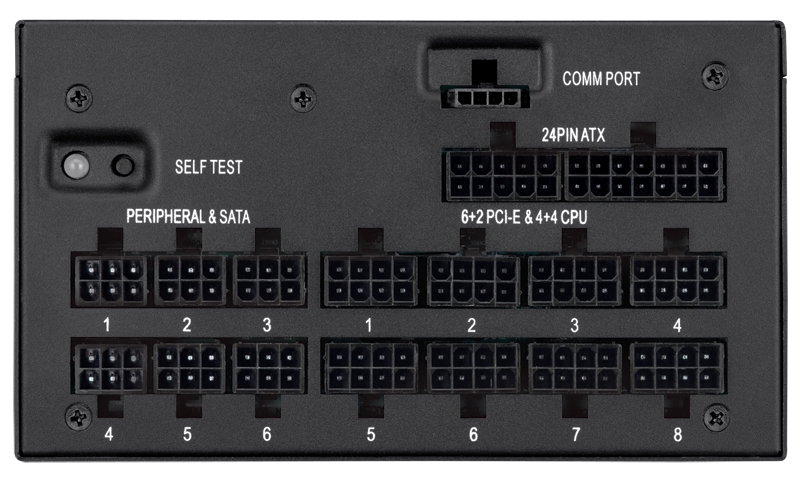

The fully modular layout allows you to use only the cables you need, and the Self Test button makes it easy to check the status of your PSU.
Contents and Specifications
Features
Digital Signal Processor (DSP) for delivering extremely clean, efficient power with real-time adjustments
Corsair Link™ Integration for monitoring and adjustment of performance, noise, and OCP settings
Dedicated single +12V rail with user-configurable virtual "single rail" and "multi-rail" software modes
An ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature
80 PLUS Platinum certified, delivering up to 92% energy efficiency under real-world load conditions
Active Power Factor Correction (PFC) with PF value of 0.99
Universal AC input from 90~264V
Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components
Engineered to meet maximum power output at a server-grade 50°C temperature rating.
Self-test switch to determine PSU functionality even before installation.
High-quality capacitors provide uncompromised performance and reliability
A seven year warranty and lifetime access to Corsair's legendary technical support and customer service
Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
Package contents
AX1200i power supply
Modular cable pack
Accessory bag with mounting hardware, cable ties, and case badge
Installation Guide
Corsair Link Digital interface cable
Corsair Link USB Dongle
Compatibility
Conforms to ATX12V v2.31 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards
Specifications:
Warranty: Seven years
Dimension: 150mm x 86mm x 200mm
Modular: Fully
Power: 1200 Watts
80 Plus: Platinum
ATX Connector: 1
EPS Connector: 2
PCI-E Connector: 6
4 Pin Peripheral Connector: 12
SATA Connector: 16
Floppy Connector: 2
MTBF: 2,000,000 hours
