All stock codes associated to this product
GIC320U01, GIC320U-01

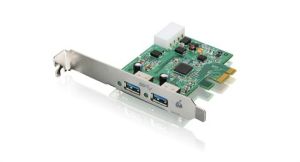

2-Port SuperSpeed USB 3.0 PCI-Express Card
GIC320U
Description
Would you like to take advantage of all the new cool features SuperSpeed USB 3.0 has to offer?
SuperSpeed USB 3.0 is 10 times faster than USB 2.0, it is bi-directional (read & write data at the same time), more power efficient and is backward compatible with USB 1.1 and 2.0 devices.
IOGEAR has made it simple to add two SuperSpeed USB 3.0 ports to your existing PC, without changing the motherboard or buying a brand new computer. This card is capable of supporting SuperSpeed USB 3.0 (5Gbps). This increased bandwidth means faster upload of photos or MP3s and drastically better performance of storage devices such as external hard drives. USB 3.0 is also full-duplex, it can upload and download simultaneously (bi-directional), USB 2.0 was half-duplex. USB 3.0 also has new power-management capabilities that allow for unused devices to enter idle, suspend and sleep modes. This new efficient use of energy cuts down on your power consumption. You can also charge your USB devices faster using USB 3.0.
The new USB 3.0 PCI Express card will allow you to take full advantage of the USB 3.0 technology on your current computer system. Put faster response time and more productivity into your digital life today!
Features:
- Ten times faster than the current USB 2.0 specification
- Supports data transfer rate up to 4.8Gbps (SuperSpeed)
- LED indicator for USB port status
- Dual profile allows use in low profile & standard cases
- Backward compatible with current USB 2.0 and USB 1.1 devices
- Each USB port supplies maximum 5V/900mA power output
- Compliant with USB 3.0 specification Revision 1.0
- Support PCI Express Base Specification Revision 2.0
- Warranty: 3-YEAR

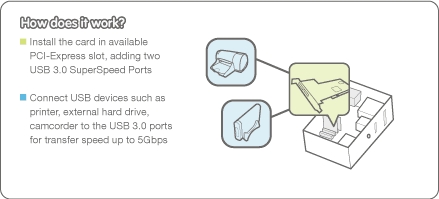

Function Diagram
Requirements
- Windows® XP, Windows Vista (32/64-bit), and Windows 7 (32/64-bit)
- Available PCI Express slot
- Note: USB 3.0 SuperSpeed is only attainable when one USB 3.0 device is connected to another USB 3.0 device.
Package Contents
- 2-Port USB 3.0 PCI Express Card
- Low Profile Bracket
- Installation CD
- Quick Start Guide
- Warranty / Registration Card
Specifications:
| Function |
GIC320U |
| USB Specification |
USB 3.0 |
| Ports |
2 ports |
| Data Rate |
Supports data transfer rate of Low-speed(1.5Mbps) / Full-speed(12MBps) / High-speed(480MBps) / Super-speed(5Gbps) |
| Computer Interface |
PCI Express |
| Connectors (Console) |
2 x USB 3.0 Type A (F) |
| Operating System Support |
Windows XP, Windows Vista (32/64-Bit), Windows 7 (32/64-Bit) |
| Operating Temperature |
32F ~ 134.6F (0C ~ 57C) |
| Storage Temperature |
-4F ~ 185F (-20C ~ 85C) |
| Power Connections |
ATX 4 pin power connector |
| Dimensions |
GIC320U |
| POP Information |
| 10'' Peg Hook |
4 |
| 6'' Peg Hook |
2 |
| Unit Dimensions |
| Width |
3.5" |
| Height |
4.75" |
| Depth |
0.75" |
| Unit Package Dimensions |
| Width |
6" |
| Height |
8.75" |
| Depth |
2.25" |
| Master Carton |
| Width |
8" |
| Height |
7" |
| Depth |
15" |
| Master Carton Qty. |
6 |
| Weight |
| Master Carton Wt. |
4.7 lb |
| Unit Pack Wt. |
0.65 lb |
| Unit Wt. |
0.15 lb |
