All stock codes associated to this product
GEU30201, GEU302-01
SuperSpeed USB 3.0 ExpressCard
GEU302
Description
The new IOGEAR USB 3.0 ExpressCard allows you add 2 USB 3.0 SuperSpeed ports to your existing Laptop or Notebook computer. USB SuperSpeed has a 5 Gbps signaling rate offering 10x performance increase over Hi-Speed USB 2.0. The IOGEAR USB 3.0 ExpressCard is backward compatible with USB 2.0 and USB 1.1 standards and will fit into any available ExpressCard slot.
Some examples of USB 2.0 Hi-Speed vs. USB 3.0 SuperSpeed are:
Transferring a 25GB HD movie:
Using USB 2.0 it would take13.9 minutes to download, with USB 3.0 only 70 seconds
Transferring 16GB from a flash drive:
Using USB 2.0 it would take 8.9 minutes, with USB 3.0 only 53 seconds
Backing up 1TB of data:
Using USB 2.0 it would take 9.3 hours, using the new USB 3.0 only 47 minutes
Features:
- Compliant with USB 3.0 revision 1.0 spec
- Fully compliant with ExpressCard 1.0 spec
- ExpressCard 34 form factor
- Supports transfer data rate of Low-Speed (1.5Mbps), Full-Speed (12Mbps), Hi-Speed (480Mbps), and SuperSpeed (5Gbps)
- Hot-swapping feature allows to connect/disconnect devices without powering down the system
- 2 downstream ports for all USB devices
- Backward compatible to USB 2.0 and USB 1.1 devices
- Warranty: 3-YEAR

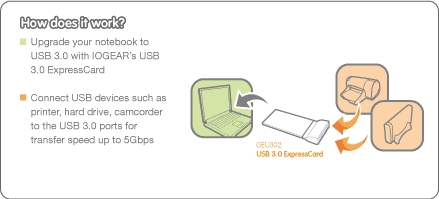

Function Diagram
Requirements
- Windows XP, Windows Vista (32/64-bit), Windows 7 (32/64-bit)
- Available ExpressCard slot
Package Contents
- 1 x USB 3.0 ExpressCard
- 1 x Power Adapter
- 1 x Installation CD
- 1 x Quick Start Guide
- 1 x Warranty / Registration Card
Specifications:
| Function |
GEU302 |
| USB Specification |
USB 3.0 |
| Ports |
2 USB 3.0 ports |
| Data Rate |
Supports transfer data rate of Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / SuperSpeed (5Gbps) |
| Power Consumption |
900mAh per port (with external AC adapter) |
| Operating Temperature |
32F ~ 130F (0C ~ 55C) |
| Storage Temperature |
32F ~ 155F (0C ~ 70C) |
| Humidity |
20% ~ 80% RH |
| Dimensions |
GEU302 |
| POP Information |
| 10'' Peg Hook |
4 |
| 6'' Peg Hook |
2 |
| Unit Dimensions |
| Width |
1.5" |
| Height |
4.5" |
| Depth |
0.5" |
| Unit Package Dimensions |
| Width |
6" |
| Height |
8.75" |
| Depth |
2.25" |
| Master Carton |
| Width |
8" |
| Height |
7" |
| Depth |
15" |
| Master Carton Qty. |
6 |
| Weight |
| Master Carton Wt. |
3.3 lb |
| Unit Pack Wt. |
0.4 lb |
| Unit Wt. w/accessories |
0.3 lb |
| Unit Wt. |
0.1 lb |
