To enable AM3+ AMD FX-Series CPU support, please update your motherboard
with the most current BIOS found in your motherboards download section.
GIGABYTE Ultra Durable 4 Classic
Humidity Protection
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new
Glass Fabric PCB design helps protect against electrical shorts due to humidity
by reducing the gaps in spacing between PCB filaments.
Electrostatic Protection
GIGABYTE Ultra Durable 4 Classic motherboards feature
High ESD Resistance ICs which help protect the motherboard against electrostatic
discharge.
Power Failure Protection
Permanent damage from power surge or failure during BIOS update, can be
avoided with GIGABYTE DaulBIOS, which automatically enables a secondary, back up
BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against
power surges.
High Temperature Protection

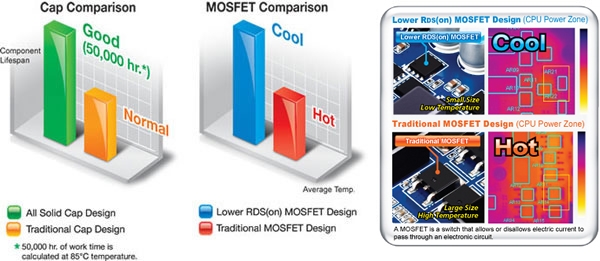

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which
are rated to work at higher temperatures, providing up to 50,000* hour component
lifespan.
Get Ready for New Generation of 32nm AMD AM3+
CPU
GIGABYTE's AMD motherboards are ready to support new generation of 32nm
AMD AM3+ multi-core processors, delivering the very best platform for
multitasking, multimedia and high performance gaming.
On/Off Charge Technology
GIGABYTE On/Off Charge technology allows you to charge your iPhone,
iPad and iPod Touch regardless of whether your PC is on, in standby mode or even
off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off
Charge enables devices to draw more current from GIGABYTE motherboard USB ports
than standard USB ports allow, so that charging from your PC can be as fast as
with a charger.
Due to certain mobile phone limitations, users may need to connect the
mobile phone to their PC before the PC enters S4/S5 mode to enable a quick
charge from non On/Off Charge USB ports. Charging results may vary by
model.
Whether to support 3X USB power design, it may vary by models.

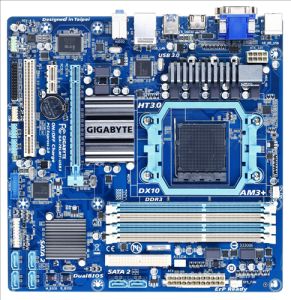

Introduction
The 78LMT-USB3 motherboard is designed to offer a stable, high-speed
platform for delivering amazingly fast data transfer via revolutionary GIGABYTE
Ultra Durable technology. Based on AMD 760G chipset, the 78LMT-USB3 supports the
latest 45nm AMD AM3 Phenom II/ Athlon II processors, integrated DDR3 memory
controller, HyperTransport" 3.0 technology links and PCI Express 2.0 graphics
interfaces for ATI Hybrid CrossFireX support. The 78LMT-USB3 is able to provide
user friendly computing, reach the maximum system performance easily while still
able to save the power and environment in real life at the same time.
Supports next generation of 45nm AMD AM3 CPU
This motherboard designs with Split Power Plane, 4+1 phase VRM to
support AMD the latest 45nm AM3 Phenom"II/ Athlon"II processors, delivering the
great performance enchantment to system and ultimate scalability hardware
expending.
EC AOD-ACC Support
EC AOD-ACC is described as Embedded Controller for AMD OverDrive-
Advanced Clock Calibration, which is the newest feature comes from AMD SB750/
SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked
through BIOS setting or AMD OverDrive" utility further than it was previously
possible.
Please apply sufficient cooling to CPU VRM zone when ACC function is
enabled.
Please be noticed that GIGABYTEs product warranty does not cover damages
caused by overclocking.
DualBIOS" 3TB+ HDD Support (Hybrid EFI
Technology)
Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS
platform including stability and compatibility with 3rd party products with 3TB+
HDD support from EFI technology, allowing GIGABYTE to offer the best of both
worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that
is freely available from the GIGABYTE website.
GIGABYTE DualBIOS" is a patented technology that automatically recovers
BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS
ROMs integrated onboard, GIGABYTE DualBIOS" allows quick and seamless recovery
from BIOS damage or failure due to viruses or improper BIOS updating. In
addition, GIGABYTE DualBIOS" now supports 3TB+ (terabyte) hard drive booting
without the need for partitioning, and enables more data storage on a single
hard drive.
Supports DDR3 1333+
Delivering native support for DDR3 memory up to
1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily
reach higher memory frequencies at lower voltages; achieving higher memory
performance with lower power consumption to run even the most memory intensive
applications such as high-definition video and 3D games with ease.
USB 3.0 Support
The GIGABYTE motherboards support the latest generation SuperSpeed USB
3.0 technology made possible through an onboard USB3.0 host controller. With
superfast transfer rates of up to 5 Gbps, users are able to experience an almost
a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB
2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard
SuperSpeed USB 3.0 technology also provides new power management features that
include increased maximum bus power and device current draw to better
accommodate power-hungry devices.
HDMI" - The Next Generation Multimedia Interface
HDMI is the latest High-Definition Multimedia Interface able to provide
up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all
through a single cable. Able to transmit superior, uncompressed digital video
and audio, HDMI ensures the crispest rendering of digital content up to 1080p
without the quality losses associated with analog interfaces and their
digital-to-analog conversion. In addition, HDMI is compatible with HDCP
(High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD
DVD and other protected media content.
DVI Support
DVI (Digital Visual Interface) is a video interface standard designed
for carrying uncompressed digital video data and to maximize the visual quality
of digital display devices, such as LCD monitors, digital projectors, and so on.
In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital
Content Protection).
EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make
it easier than ever to manage and monitor your hardware resources as well as
tweak your system settings in order to achieve maximum system performance.
Whether you are an overclocking enthusiast, or a computer novice, EasyTune6
provides the tools you need to quickly and effortlessly fine tune your
system.
Norton" Internet Security
Fast, comprehensive, and up-to-the-minute protection against online
threats. It safeguards your computer, identity, and home network without slowing
you down. It sets a new standard for speed and makes online shopping, banking,
and browsing safer and more convenient than ever.
Qualified for Windows® 7
The motherboard qualified for WHQL (Windows Hardware Quality Labs)
certification of Windows 7 from Microsoft®, setting the standard for future
Windows 7 certified motherboards...more
ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of
the European Union's environmental regulations policy. It is based on concern
for the environmental as the proliferation of electronic devices continues, and
how to improve energy efficiency for a better and greener life. GIGABYTE
supports ErP and produces motherboards that help you effectively improve system
efficiency.
Specifications:
| CPU |
AM3+ Socket:
- Support for AMD AM3+ processor
- Support for AMD AM3 Phenom II processor / AMD Athlon II processor
(Please refer "CPU Support List" for more information.) |
| Hyper Transport Bus |
- 4400 MT/s
|
| Chipset |
- North Bridge: AMD 760G
- South Bridge: AMD SB710
|
| Memory |
- 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
(Note 1)
- Dual channel memory architecture
- Support for 1333+ (O.C.)/1066 MHz memory modules
(Please
refer "Memory Support List" for more information.) |
| Onboard Graphics |
North Bridge:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note
2)
- 1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3)
|
| Audio |
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel (Note 4)
- Support for S/PDIF Out
|
| LAN |
- 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16
- 1 x PCI Express x1 slot(All PCI Express slots conform to PCI Express
2.0 standard.)
- 1 x PCI slot
|
| Storage Interface |
South Bridge:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE
devices
- 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
- Support for RAID 0, RAID 1, RAID 10, and JBOD
|
| USB |
South Bridge:
- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports
available through the internal USB headers)
2 x Etron EJ168
chips:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports
available through the internal USB header)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 3Gb/s connectors
- 1 x IDE connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x parallel port
- 1 x clearing CMOS jumper
|
| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
|
| I/O Controller |
- iTE I/O Controller Chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control (Note 5)
|
| BIOS |
- 2 x 16 Mbit flash
- Use of licensed AWARD BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
|
| Unique Features |
- Support for @BIOS
- Support for Q-Flash
- Support for Xpress BIOS Rescue
- Support for Download Center
- Support for Xpress Install
- Support for Xpress Recovery2
- Support for EasyTune (Note 6)
- Support for Smart Recovery
- Support for Auto Green
- Support for On/Off Charge
- Support for Q-Share
|
| Bundle Software |
- Norton Internet Security (OEM version)
|
| Operating System |
- Support for Microsoft Windows 7/ Vista/ XP
|
| Form Factor |
- Micro ATX Form Factor; 24.4cm x 24.4cm
|
| Note |
(Note 1) Due to a Windows 32-bit operating system limitation, when
more than 4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memory
installed.
(Note 2) The DVI-D port does not support D-Sub connector
by adapter.
(Note 3) Simultaneous output for DVI-D and HDMI is not
supported.
(Note 4) To configure 7.1-channel audio, you have to use
an HD front panel audio module and enable the multi-channel audio feature
through the audio driver.
(Note 5) Whether the CPU fan speed
control function is supported will depend on the CPU/system cooler you
install.
(Note 6) Available functions in EasyTune may differ by
motherboard model. |
| Remark |
- Due to different Linux support condition provided by chipset
vendors, please download Linux driver from chipset vendors' website or
3rd party website.
- Most hardware/software vendors may no longer offer drivers to
support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the
vendors, we will update them on the GIGABYTE website.
|
