DCS-210 D-ViewCam Standard (8-Channel license)
Overview
D-ViewCam Standard is a comprehensive IP surveillance software designed for SMB/Enterprise users. It centrally manages network cameras and offers video live view, recording and playback functions. D-ViewCam Standard provides backend VMS solution for IP surveillance projects, it is compatible with D-Link network cameras, NVR and 3rd party CMS.
Features:
- D-ViewCam Standard 8 camera license
- HD and Widescreen video support
- H.264 /MPEG-4/ MJPEG compression format support
- Dual monitor support
- NVR support
- SMS Alert support
- Remote Desktop Viewer
- Footage Smart Search support
Description

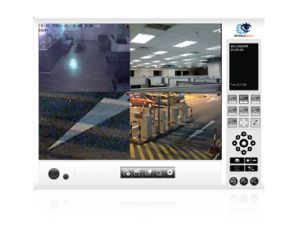

Live Monitoring and Centralised Management
D-ViewCam Standard/Professional/Enterprise versions provide comprehensive surveillance system designed to centrally manage 8/32/64 network cameras, while displaying real-time status information. Map Mode allows you to create maps based on camera location and orientation, and the Device Tree lists all the cameras connected to the interface for easy viewing. Additional features such as auto-patrol, rotate, zoom and focus provide users with optimal control over their video surveillance.
Video Recording and Playback
D-ViewCam Standard/Professional/Enterprise versions offer scheduled, motion, and manual recording options to meet specific user demands. Recorded files can be searched according to video type or selected within the user interface for playback, editing, or AVI /ASF file conversion.
Video and System Database Backup
D-ViewCam Standard/Professional/Enterprise Playback function allows users to load and play a recorded file on a Windows PC. It allows users to monitor a live feed on one computer while watching a recorded file on another. The software also provides a utility (DB-Tool) to reconstruct, repair or relocate the databases on local or external drives. It also supports the import/export of configuration files – enabling users to synchronize surveillance settings across devices.
Compatible with 3rd Party CMS
Central Management System (CMS) can manage an unlimited number of network cameras located worldwide, allowing simultaneous operation by unlimited workstations. CMS is considered to be the omni-solution for large-scale projects, such as defence installations, justice facilities, security companies, city surveillance, national and international enterprises. D-ViewCam Standard/Professional/Enterprise versions can be managed by CMS to provide a total solution.

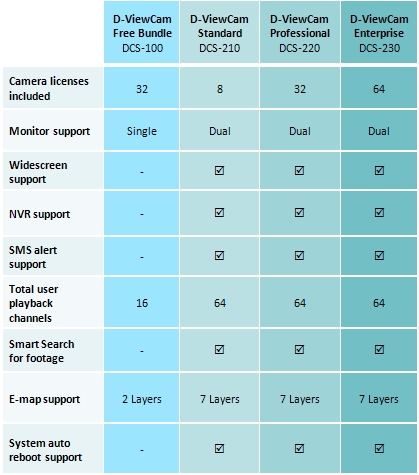

Versions comparison
Technical Specifications
General
Supports up to 8/32/64 cameras
Megapixel network camera support
MJPEG/MPEG-4/H.264 compression format support
Dual monitor support
Widescreen support
Multilingual support
OSD (On-screen Display) setting
Live Monitoring
30 FPS maximum recording per camera (subject to camera and video server capacity)
Automatic discovery of network cameras
On-the-fly configuration changes
Auto reboot function support
System DDNS support
SMS alert
Lock system to avoid unauthorized changes
User Account Management
User validation
User password restriction
User profiling
Access privilege control
Recording
Supports multiple storage locations
Record by schedule
Record by event
Digital watermark protection
Pre-record/Post-record support
Manual recording of up to 8/32/64 channels
One-way audio recording of multiple channels
Record and live display at different frame rates and resolutions
Data Search and Playback
Video playback control
Smart Search support
Histogram quick search method for videos
Video stamp
Extract snapshots from video
Extract video to AVI /ASF
Supports remote playback/web playback
Video Mode
Screen division layout support
Monitor display allows for drag and drop of videos
Supports full screen video
Multiple channel playback support
Information window support
Enable Move function to control a P/T/Z camera
Digital zoom in/out support
Supports remote live viewing to display video
Technical Specifications
Map Mode
Multiple map support
Alarm notification
Customized map background support
Camera preview
Camera and I/O indicator
I/O & Event Feature
Output port control
Input port trigger on event
Output port relay when an event is detected
Digital Input Trigger SMS
Digital Input Trigger CMS
E-mail notifications
P/T/Z Control
Auto pan
Manual control
Preset positions (device dependent)
Preset patrolling
Multiple patrol group support
Backup
Backup database for logs and videos
Import/Export configuration
Burn backup files to DVDs on Windows XP
Compatibility
ONVIF support
Device Pack support
Compatible with D-Link NVR
Compatible with 3rd Party CMS
D-Link DWM-152-A3/156-A3 3.5G/3.75G adapter support
All D-Link network cameras (visit
www.dlink.com for more information)
Tools
Remote Live Viewer
Playback System
Backup System
DB Tool
Verification Tool
Remote Desktop Viewer
