All stock codes associated to this product
DS2012, DS-2012, DI15200

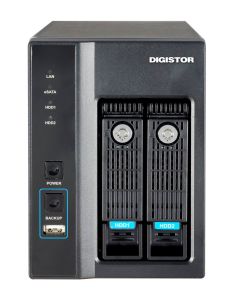

DS-2012
All-in-one Features of DIGISTOR NVR (Network Video Recorder)
DS-2012 DIGISTOR NVR is a powerful 2-bay standalone NVR.It gives a complete network surveillance system with outstanding remote monitoring and recording performance.
Features
DS-2012 is a 2-bay Linux-embedded standalone NVR, powered by high performance RISC CPU and performs excellent network surveillance of multiple IP cameras up to 12 channelsof single server and up to 144 channels of multiple servers. DIGISTOR NVR supports remote monitoring, megapixel recording, and playback. The monitoring demands can be satisfied anywhere and anytime by remote web browser monitoring, iOS and Android mobile monitoring.
With intuitive Quick Configuration, users can finish trouble free installation in only five steps in web-based interface of IE browser. The Linux-embedded NVR supports schedule recording, automatic recovery, threshold of recorded videos, and video clip. Through event management, DIGISTOR NVR lets user set diversified events and actions for instant alert. Moreover, with user-friendly USB backup function, DIGISTOR NVR saves time in data duplication for emergent needs. In terms of security control, user privilege management and log system offer user detailed information for security control. All these essential features can be configured quickly in web-based interface.
DIGISTOR NVR Powerful Network Surveillance Features
Real-time Remote Monitoring
DS-2012 DIGISTOR NVR offers instant monitoring via remote IE browser anytime, anywhere
- Multi-NVR Server Monitoring
- Various Monitoring Modes
- Convenient Control of PTZ and Speed Dome Cameras
- Digital Zoom in/ Zoom out
DIGISTOR NVR lets users monitor remotely via IE browser. In web-based interface, DS-2012 offers 1/4/9/10/12/16/20/25 & 5+1/7+1/12+1-channel & sequential display modes and supports up to 12 channels. DIGISTOR NVR can be a multi-NVR server to connect other DIGISTOR NVR and select a maximum of 144 channels as well as simultaneously monitor other remote NVR sites without installing any extra VMS software. Also, remote monitoring offers control of PTZ camera and lets users view preset positions of the IP camera.
Excellent Video Recording
Smart and scheduled recording
- Various Compression Formats
- Various Recording Modes
- Flexible Threshold of Recorded Videos
- Multi-stream for Monitoring & Recording
DIGISTOR NVR gives users high performance megapixel recording and supports MJPEG, MPEG-4 and H.264 formats. Users can configure different recording schedules such as continuous, schedule, event and audio recording for each camera in high megapixel recording. Users can also set recording percentage or days for keeping videos to overwrite the oldest video files automatically. Furthermore, DIGISTOR NVR supports multi-stream to let users set video format, frame rate, resolution and other features in different conditions to save bandwidth for monitoring and recording.
Efficient Event Management
Diversified events and corresponding trigger actions
- Event Recording
- E-Mail Notification
- E-Mail Video Clip
- Buzzer Alarm
- User-defined Digital Output Actions
- Events: Camera connection lost, intelligent motion detection, user-defineddigital input and NVR system connection lost
- Actions: Event recording, E-Mail Notification, video clip via E-Mail, buzzer and user-defined digital output
When an event is triggered, such as motion detection or digital input, DIGISTOR NVR can take various actions such as recording video in the server and sending a video clip instantly to users by E-mail. In addition, buzzer can be enabled to sound up to 60 seconds as abnormal events occur. Users can also define digital output actions by themselves, such as fire alarm system.
Intuitive Multi-channel Playback
Intuitive playback and clear interface to view recorded video
- User-friendly Video Search by Date, Time, Channel, Normal Record, Event and Recovered File
- Exporting Recordings
- Taking a Snapshot
Advanced and Reliable Security System
Reliable security choices in DIGISTOR NVR
- Stable and Secure Linux-embedded System
- Detailed Log Information
- User Privilege Management
- Flexible Permission and Prohibition of IP Range for Controlling the Access
DIGISTOR NVR is a Linux-embedded operating system which is efficient to avoid virus attack and hacker intrusion. Compared with PC, Linux-embedded system offers more green and power saving. With over six clear log systems, users can do quick trouble shooting and security control of DIGISTOR NVR. As for privilege management, administrator can add multiple user groups like power user and user to configure live view and playback access. Besides, users can specify IP address or network segment to permit or prohibit specific IP address as white or black list from live view or playback access.
Smart, Simple and Mobile Enhancement
Smart enhancement brings you more convenience
- Monitoring Everywhere via iPhone and Android Operating System
- Intelligent EZ Search of NVR
- Trouble Free Installation in 5 Steps
No matter where you are, you can monitor live view through iPhone or Android phone and control PTZ camera. Besides, with EZ Search, users can quickly find NVR in the network and connect to web-based interface. In only 5 steps, users can finish Quick Configuration in web-based interface.
Ingenious USB Backup
Configuration in advance Save time for backup in convenience
- Backup with Day, Hour and Channel Preset
- Efficient Hardware USB Backup Button
Users can set a maximum of days and hours to backup the latest video files and configure the specific channels for duplication in advance. After setting the time and channels, users just need to press USB BACKUP button on the NVR and then export the video files to external USB device. When an urgent need arises, video files are backed up efficiently and quickly.
Superior Hardware Design
DIGISTOR NVR’s excellent hardware performance truly enhances your efficiency
- High Network Throughput for High Megapixel Recording
- Supports up to 3TB Storage Capacity per Hard Disk Drive
- Built-in Advanced RAID Configuration with Hot Swap Design
- Automatic Recovery from DIGISTOR NVR Power Outage
- Built-in GPIO: 4 in 2 out
DIGISTOR NVR is powered by RISC CPU for excellent megapixel recording and provides network throughput up to 150Mbps. DIGISTOR NVR supports the hard disk drive up to 3TB per drive. Through DIGISTOR NVR, users can configure JBOD, RAID0 and RAID1 in web-based interface; hot swap design allows users to replace failed HDD without turning off the server. DIGISTOR NVR will also automatically recover when power resumes after an outage and recover missing file caused from power outage. On the other hand, DIGISTOR NVR supports built-in General Purpose I/O for both choices of setting digital input and output.
Various Network Services
Simple and functional complement of network video recorder
- DDNS Service
- NTP Server
- Static IP or DHCP
- Quick UPnP Search for Connecting Camera
- Windows Networking and FTP Service
Users can register a domain name from a dynamic DNS (DDNS) provider and enable DDNS in DIGISTOR NVR. DIGISTOR NVR supports NTP (Network Time Protocol) by selecting time zone for synchronizing the date and time. Users can flexibly set static IP or DHCP server to enter the network video recorder. Besides, users can add camera via quick UPnP search in LAN. With Windows networking and FTP service, DIGISTOR NVR allows users quickly access the video files.
Software Specifications
Remote Monitoring
Display Mode: 1/4/9/10/12/16/20/25 & 5+1/7+1/12+1-channel and sequential display modes
Supported Channels: Up to 12
Multi-NVR Server Monitoring: Up to 144 Channels
Control: PTZ control, digital zoom, optical zoom, full screen display, video sanpshot and preset position
Audio Status Support: Yes
Alarm Status Support: Yes
Recording Status Support: Yes
Remote Monitoring Support
IE Browser 7.0 or Above: Yes
iPhone iOS 5.0: Yes
Android Phone 2.3 or Above: Yes
Remote Recording
Supported Channels: Up to 12
Recording Mode
1.Recording by schedule/ Continuous recording/ Event recording/ No recording/ Audio recording support
2·Automatic recycle/ Keep video days
File Format AVI format
Video Format: MJPEG/ MPEG-4/ H.264 (Depending on the camera models)
Maximum Network Throughput: 150Mbps (Varied in different environment)
Remote Playback
Multi-channel Playback
Support maximum 4-channel playback simultaneously
Search Mode
Search by date, time, camera number, normal record, event and recovered file
Control
Play, pause, speed control, zoom in/ out, full screen display and video snapshot
Export
Export video files in AVI format and take a snapshot
Event Management
Event
Camera connection lost, motion detection, user-defined digital input and NVR system connection lost
Action
1. Event recording: When motion detection or digital input is triggered, video will be stored in chunks (typically 5 minutes each) in DIGISTOR NVR
2. E-Mail notification: SMTP server service for sending E-Mail
3. Video clip via E-Mail:
Pre-time of record: Up to 10 sec (Before event)
Post-time of record: Up to 10 sec (After event)
4. Buzzer: Buzzer can be enabled up to sound for 60 seconds
5. User-defined digital output
Security Management
User Privilege Management
User can be assigned for different levels of privilege
Log System
Hardware log, NVR log, event log, current user log, historical user log and file access log
Access Control
Specify IP address or network segment for the white and black list
Auto Logout
Auto logout idle time limit from configuration page
Operating System
Linux-embedded system
USB Backup
USB BACKUP
Insert external USB device into DIGISTOR NVR and press USB BACKUP button in 3 seconds to duplicate the video file instantly
Network Service
Protocol Support
HTTP, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP
File Sharing Service
Windows networking, FTP service
Reliability
Disk Management
JBOD, RAID0 and RAID1 disk configurations
Suggested PC Requirement
Operating System
Microsoft® Windows® XP (32-bit)/ Vista/ 7 (32 and 64-bit)
Browser
Microsoft® Internet Explorer 7.0 or above (32-bit)
CPU
For channels under 16 : Intel® Dual core CPU 3.0 GHz or above.
For channels over 16 : Intel® i5/i7 CPU 3.3 GHz or above.
Memory
For channels under 16 :DDR3 4G or above.
For channels over 16 : DDR3 8G or above.
Suggested Switch Requirement
Switch
Gigabit switch is highly recommended
Memory
1G DDRIII memory
256MB Flash
Number of HDD Supported
2.5"/ 3.5" SATA HDD x 2
(The standard system is shipped without HDD)
HDD Tray
2 x Hot-swappable and lockable tray
LAN Port
1 x Gigabit RJ-45 Ethernet port
LED Indicators
HDD 1, HDD 2, eSATA, LAN
USB Connector
3 x USB 2.0:
Front x 1: For video backup
Back x 2: For USB UPS device
eSATA
2 x eSATA port (Reserved)
Buttons
Power, USB backup
Alarm Buzzer
System Warning
Operation Environment
Temperature 0~40C
Humidity 0~95% R.H
Power Supply
External power adaptor, 60W
Input: 100-240V
Security Design
K-Lock security slot for theft prevention
Power Consumption
Operation: 15.9~20.8 W
(with 2 x 500GB HDD installed and in RAID 1 building process)
Fan
1 x quiet cooling fan (7cm. 12V DC)
H/ W Dimensions
246.1(D) x 114.97(W) x 164.94(H) mm
9.69(D) x 4.53(W) x 6.49(H) inch
Color Box Dimensions
302(D) x 188(W) x 290(H) mm
11.89(D) x 7.40(W) x 11.42(H) inch
Carton Dimensions
625(D) x 395(W) x 315(H) mm
24.61(D) x 15.55(W) x12.40(H) inch
Color Box Shipping Weight
Net Weight(kg/PC):3.9
Gross Weight(kg/PC):5.0
Gross Weight(kg/CTN):20
