HOME / Back -> Power Supplies -> 500W - 599W -> ThermalTake

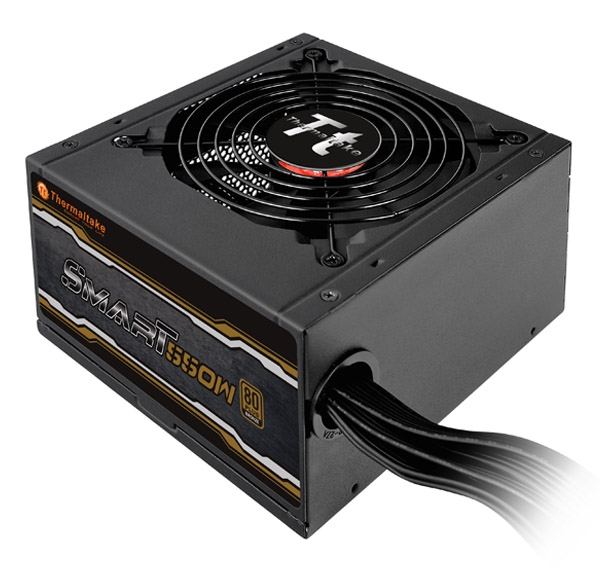

ThermalTake 550W Smart Power Supply - ATX 12V V2.3/80PLUS Bronze
  • 120mm Fan
  • 24-Pin(1), ATX12V(1), Molex(4), SATA(6), PCI-E 6+2-Pin(2)

IMG 1 of 1
No Longer Available
Part Number:
216962
(?) Brand:
ThermalTake Web Site
Manuf No:
SP-550PCBAU
SP550PCBAU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SP550PCBAU, SP-550PCBAU
Overview


550 Watt Bronze Power Supply

Most valuable power usage for daily use

Thermaltake introduces the newest in the essence of mainstream systems the SMART Series Standard PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 550 to 750W that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 fundamental and stable demands.

80% Plus Bronze Certified

80 Plus Bronze certified, offers up to 88% efficiency at 20-100% load under real world load conditions and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.


Flat &ow Profile Cable

All new low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.


Massive and dedicated +12V output

Smart Standard Series is equipped with a pure and powerful single +12V rail to provide the best compatibility for your PC.

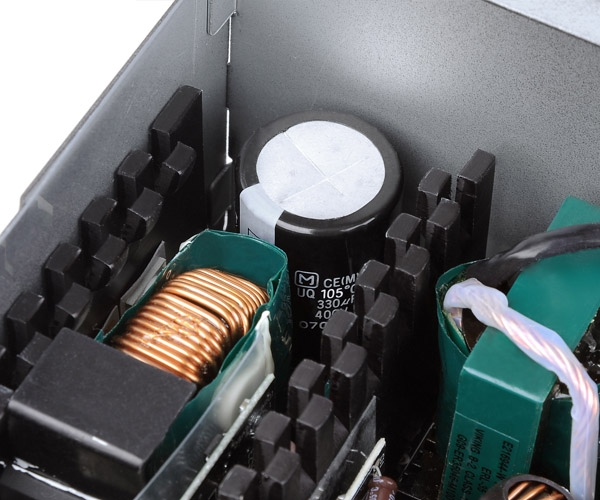

Top Quality Japanese made Capacitor

High quality of Japanese made capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

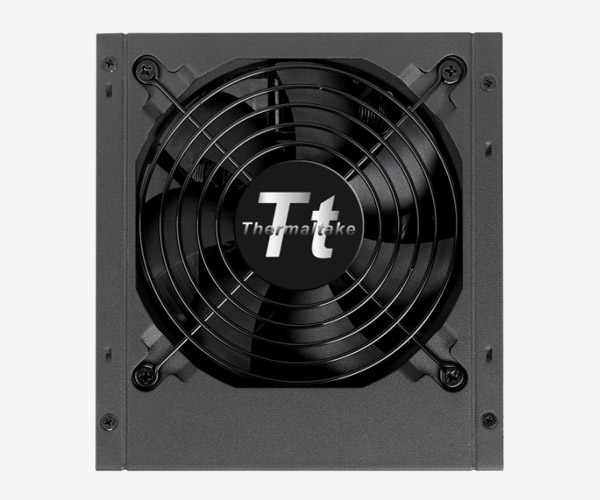

Smart Temperature Control Fan

Large 120mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.


Specifications:


Model SP-550AH2NCB
Type Intel ATX 12V 2.3
Max. Output Capacity 550W
Peak Output Capacity 660W
Color Black
Dimension (H x W x D) 86mm x 150mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) @ 80% of full load at 115Vac/ 230Vac input.
Input current 8A
Input Frequency Range 47 Hz - 63 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0? to +40?
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20 ? to +70 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 120mm Fan: 1800 R.P.M. 10%
Efficiency 82-88% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval UL/CUL/TUV/CE/FCC and BSMI
Protection OVP/UVP/OCP/OPP/SCP

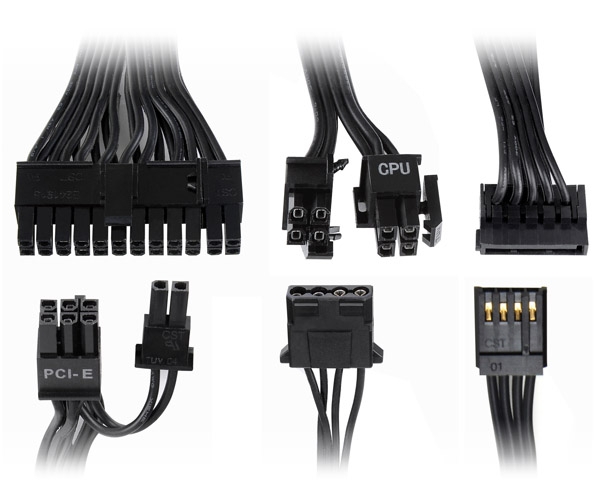

Connector 24 Pin x 1
CPU 4+4 Pin x 1
PCI-e 6+2 Pin x 2
SATA x 6
4 Pin Peripheral x 4
4 Pin Floppy x 1
Max Output Current +3.3V: 24A
+5V: 15A
+12V: 42A
-12V: 0.5A
+5VSB: 3.0A
Max Output Power +3.3V &5V: 105W
+12V: 504W
-12V: 6.0W
+5VSB: 15W

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
