All new low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.
Massive and dedicated +12V output
Smart Standard Series is equipped with a pure and powerful single +12V rail to provide the best compatibility for your PC.

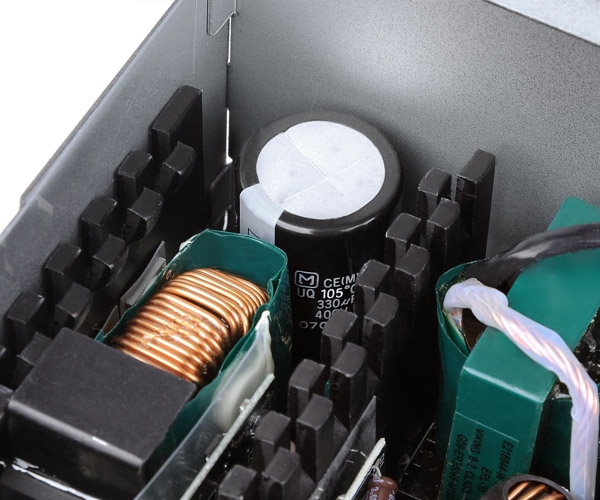

Top Quality Japanese made Capacitor
High quality of Japanese made capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

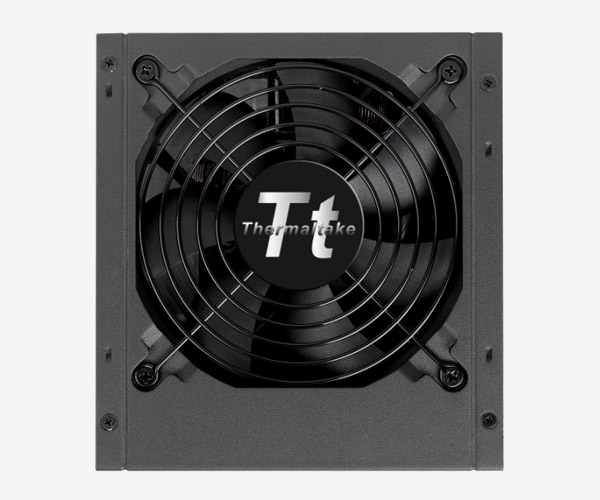

Smart Temperature Control Fan
Large 120mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Specifications:
| Model |
SP-650AH2NCB |
| Type |
Intel ATX 12V 2.3 |
| Max. Output Capacity |
650W |
| Peak Output Capacity |
780W |
| Color |
Black |
| Dimension (H x W x D) |
86mm x 150mm x 140mm |
| PFC Power Factor Correction |
Active PFC |
| Power Good Signal |
100-500 msec |
| Hold Up Time |
16msec (minimum) @ 80% of full load at 115Vac/ 230Vac input. |
| Input current |
10A |
| Input Frequency Range |
47 Hz - 63 Hz |
| Input Voltage |
100 Vac- 240 Vac |
| Operating Temperature |
0 to +40 |
| Operating Humidity |
20% to 90%,non-condensing |
| Storage Temperature |
-20 to +70 |
| Storage Humidity |
5% to 95%, non-condensing |
| Cooling System |
120mm Fan: 1800 R.P.M. 10% |
| Efficiency |
82-88% efficiency @ 20-100% load |
| MTBF |
100,000 hrs minimum |
| Safety Approval |
UL/CUL/TUV/CE/FCC and BSMI |
| Protection |
OVP/UVP/OCP/OPP/SCP |

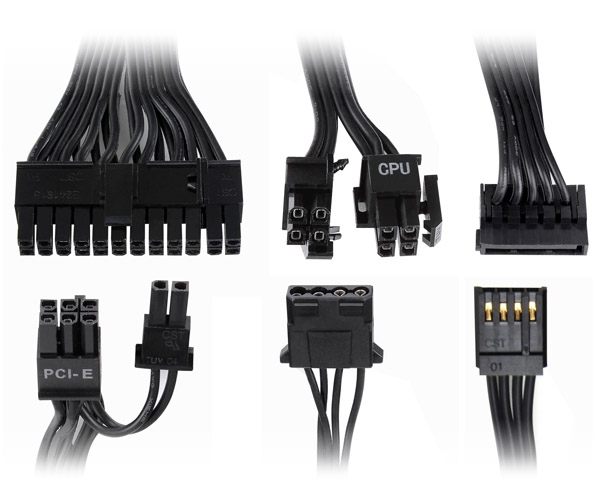

| Connector |
24 Pin x 1
CPU 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 8
4 Pin Peripheral x 4
4 Pin Floppy x 1
|
| Max Output Current |
+3.3V: 24A
+5V: 24A
+12V: 52A
-12V: 0.5A
+5VSB: 3.0A
|
| Max Output Power |
+3.3V &+5V: 120W
+12V: 624W
-12V: 6.0W
+5VSB: 15W |
