All stock codes associated to this product
TP850MPCGAU, TP-850MPCGAU, SPTTP850W, SP-TTP850W

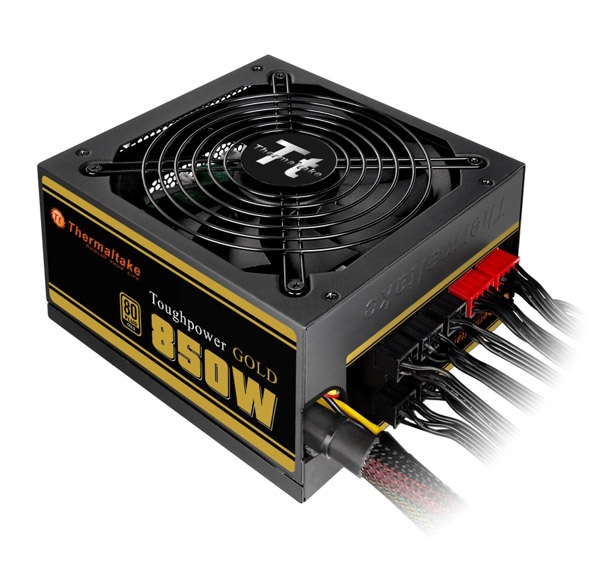

Toughpower GOLD850 watt Power Supply
Establishing sky-high standards of performance, quality and reliability, combined with some enviable eco-friendly credentials, this Thermaltake Toughpower Series power supply unit (PSU) is the ultimate choice for the informed user and enthusiast. With both 850w and 750w units available, this PSU provides outstanding performance and high-level efficiency that can cope with your most demanding needs.
80 Plus Gold Certified
With 80 PLUS Gold certification, you are guaranteed an impressive 87-90% efficiency at typical loads, with unflinching voltage stability and low-noise levels.

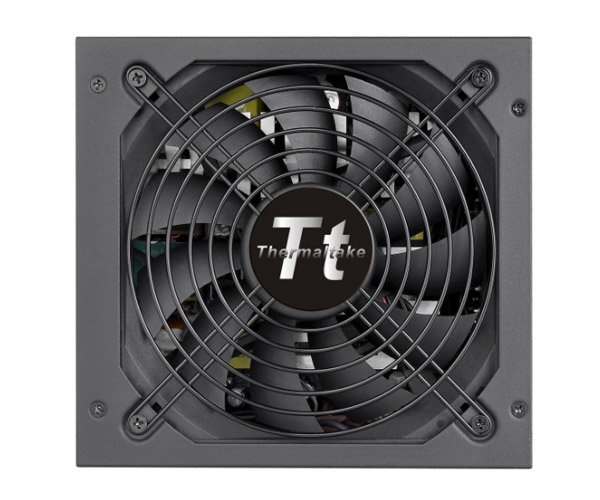

Artificial Intelligence Fan Speed Control
If you’re after a quieter system, you’ll appreciate the 135mm cooling fan with intelligent RPM control. This detects the power load and adjusts the fan speed automatically, maintaining an optimally quiet performance.

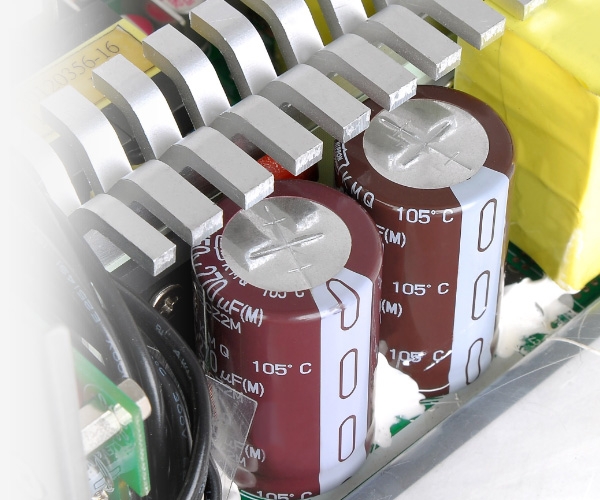

Quality-Guaranteed, Japanese-Made Capacitor
You’re guaranteed excellent performance and minimal impedance with the Toughpower GOLD’s Japanese-made capacitor. This ensures greater stability and reliability, whatever the frequencies or currents in use.

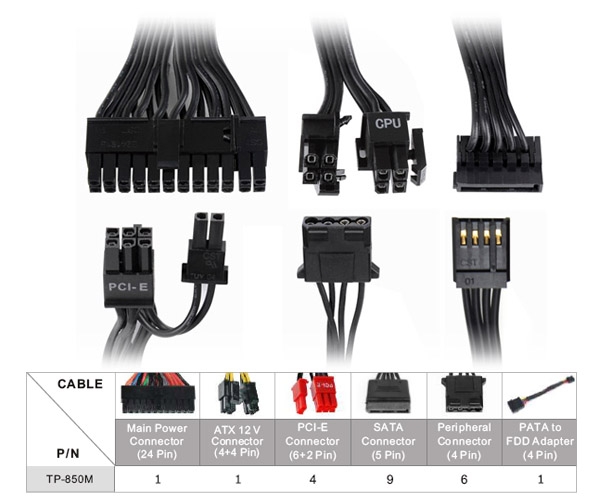

Flat, Low-Profile Modular Cables
The Toughpower GOLDs looks are as impressive as its performance. A tidily low-profile flat and modular cable set makes it the ultimate choice for discerning users and enthusiasts.

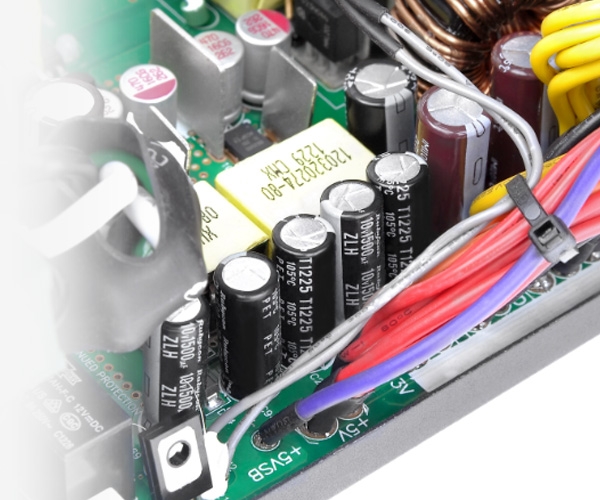

Superior 12v Output Performance
A massive, single +12v output provides the best compatability for your PC, ensuring robust performance without risk of overheating.
Specifications:
| P/N |
TP-850M |
| Model |
TP-850MPCGAU |
| Type |
Intel ATX 12V V2.3 & EPS 12V standards |
| Max Output Power |
850W |
| Peak Output Capacity |
1020W |
| Color |
Black |
| Dimension (H x W x D) |
86mm x 150mm x 160mm |
| PFC Power Factor Correction |
Active PFC |
| Power Good Signal |
100-500 msec |
| Hold Up Time |
16msec (minimum) @ 75% of maximum load at 100 - 240Vac input. |
| Input current |
9A / 4.5A |
| Input Frequency Range |
50 Hz - 60 Hz |
| Input Voltage |
100 Vac- 240 Vac |
| Operating Temperature |
0 to +40 |
| Operating Humidity |
10% to 90%,non-condensing |
| Storage Temperature |
-20 to +60 |
| Storage Humidity |
5% to 95%, non-condensing |
| Cooling System |
135mm Fan, 1800R.P.M.10% |

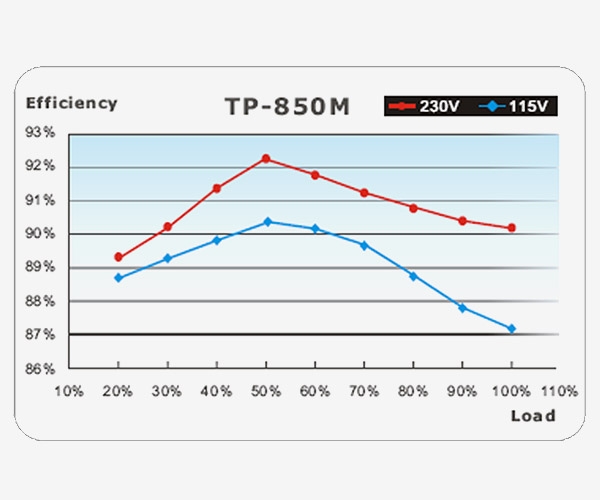

| Efficiency |
87-90% efficiency @ 20-100% load |
| MTBF |
120,000 hrs minimum |
| Safety Approval |
CE/CB+Baurt mark/ FCC certification |
| Max Output Current |
+3.3V: 25A
+5V: 25A
+12V: 70A
-12V: 0.3A
+5VSB: 3.5
|
| Max Output Power |
+3.3V & +5V: 150W
+12V: 840W
-12V: 3.6W
+5VSB: 17.5W |
