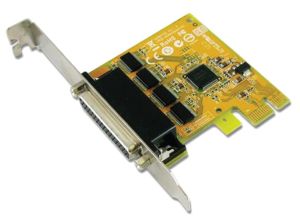

4-Port RS-232 Low Profile PCI Express Board
Introduction
SUNIX SER6456AL, PCI Express serial communication boards meet the PCI Express Base Specification Revision 2.0. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any slim size PC-based system with low profile bracket structure. The majorities of today’s motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add four serial ports to their system, allowing them to use serial devices further. SUNIX SER6456AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN2410 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features
- Expands 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.
- Designed to meet PCI Express Base Specification Revision 2.0.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Specifications
General
| Interface |
RS-232 |
| Controller |
SUNIX SUN2410 (16C950 UART Compatible) |
| BUS |
PCI Express Spec 2.0, Single-Lane (x1) |
| IRQ & IO |
Assigned by System |
Serial Communication
| Interface |
RS-232 |
| No. of Port |
4-port |
| FIFO |
128byte Hardware |
| Signal |
DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
| Baud rate |
50bps ~ 115.2Kbps |
| Stop bit |
1, 1.5, 2 |
| Parity |
even, odd, none, mark, space |
| Flow Control |
None, Xon/Xoff, RTS/CTS |
| Protection |
15KV ESD protection for each signal Human Body Model (HBM)
15KV IEC1000-4-2 Air Gap Discharge
8KV IEC1000-4-2 Contact Discharge
|
| PCB Connector |
DB44 Female
|
Driver Support
| Microsoft Client |
XP/Vista/7/ 8 (X86/X64) |
| Microsoft Server |
2000/2003/2008 / 2008R2 / 2012 (X86/X64)
|
| Microsoft Embedded |
Windows CE 4.2/5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009 |
| Linux |
Linux 2.4.x/2.6.x/3.x |
| DOS |
DOS |
| FreeBSD |
FreeBSD 5.3~5.5 / 6.0~6.4 |
| QNX |
QNX 6.3.2/6.4.0 |
Regulatory Approvals
| Hardware |
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
|
| Software |
Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8 (X86/X64)
Microsoft Server: 2000 / 2003 / 2008 / 2012 (X86/X64)
|
Environment
| Operation Temperature |
0 to 60C (32 to 140F) |
| Operation Humidity |
5 to 95% RH |
| Storage Temperature |
-20 to 85C (-4 to 185F) |
Dimension
| PCB Dimension |
65 x 68 mm |
| Bracket |
Low Profile 80 mm |
| Bracket Space |
1 |
