You can help reduce energy costs and your impact on the environment with the DellTM UltraSharpTM U3014 monitor. Its designed to consume only 60 W (typical), which is lower than some of its closest competitors.6 You also get the added benefit of PowerNap and Dynamic Dimming to help further reduce energy consumption.
- PowerNap can dim your monitor to minimum brightness or put it into sleep mode when youre away.
- Dynamic dimming, when enabled, adjusts onscreen brightness when images displayed consist of predominantly large bright and white areas.

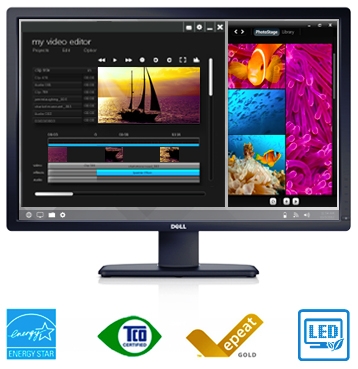

- The DellTM UltraSharpTM U3014 meets the latest environmental standards, including ENERGY STAR , EPEAT Gold, TCO Certified Displays and CECP.
- Help create a safe work environment with a monitor that offers arsenic-free glass, a mercury-free LED panel, BFR/PVC-reduced circuit board laminates and a chassis made of more than 25 percent post-consumer recycled plastics.
Get the most from your high-performance monitor.
Complete your Dell monitor experience. Your DellTM UltraSharpTM U3014 is just the start. Look for these great additions when finalizing your purchase.
Software
Your DellTM UltraSharpTM U3014 monitor arrives with Dell UltraSharp Color Calibration Solution software for use with the optional X-Rite i1Display Pro colorimeter4. Add the X-Rite i1Display Pro colorimeter4 to your purchase for hassle-free monitor-level calibration and improved color precision.
Services
Along with your Limited Hardware Warranty comes our Premium Panel Guarantee.7 Even if only one bright pixel is found on our select range of monitors, a free panel exchange is guaranteed during the Limited Hardware Warranty period.
Accessories
Enhance the ergonomics of your workstation with the Dell Single Monitor Arm. This arm supports 115 degrees of monitor tilt with height and swivel adjustments in portrait and landscape orientations.
Specifications:
| DellTM UltraSharpTM U3014 30" Monitor with PremierColor |
|
|
DISPLAY
Diagonal Viewable Image Size:
75.6 cm
29.8 inches (30-inch wide )
Aspect Ratio:
16:10
Panel Type, Surface:
AH In-plane switching, anti glare with hard coat 3H
Optimal resolution:
2560 x 1600 at 60 Hz
Contrast Ratio:
1000 to 1 (typical)
Dynamic Contrast Ratio: 2 Million:1 (Max)
Brightness:
350 cd/m2 (typical), 50 cd/m2 (minimum)
Response Time:
6 ms (gray to gray)
Viewing Angle:
(178 vertical / 178 horizontal)
Color Support:
Color Gamut (typical): Adobe RGB 99%, sRGB 100% and 120% (CIE 1976)8
Color Depth: 1.074 billion colors
Pixel Pitch:
0.25 mm
Backlight Technology:
LED
Display Type:
Widescreen Flat Panel Display
|
 |
|
CONNECTIVITY
1 Dual Link Digital Visual Interface connectors (DVI-D) with HDCP
1 DisplayPort 1.2 (DP)
1 Mini DisplayPort 1.2 (mDP)
1 High Definition Multimedia Interface (HDMI)
1 USB 3.0 upstream port
4 USB 3.0 downstream ports
1 DisplayPort out (MST)
1 Audio out
DC power connector for Dell Soundbar (AX510)
|
|
ADJUSTABILITY
Height adjustable stand, tilt , swivel and built in cable-management, capacitive touch OSD controls
Flat Panel Mount Interface:
VESA
|
|
|
BUILT-IN DEVICES
USB 3.0 Hi-Speed Hub (with 1 USB upstream port and 4 USB downstream ports)
DC-out
|
|
SECURITY
Security lock slot (security lock sold separately)
Anti-theft stand lock slot (to panel)
|
|
|
SIZE AND WEIGHT
Dimensions with stand (H x W x D):
19.00" ~ 22.55" (482.7 mm ~572.7 mm) x 27.15" (689.7 mm) x 7.93" (201.4 mm)
Dimensions without stand (H x W x D):
17.69" (449.2 mm) x 27.15" (689.7 mm) x 2.40" (61.0 mm)
Viewable Image Dimension (H x W)
641.3 x 400.8 mm
25.25" x 15.76"
Weight (panel only - for VESA mount):
10.84 kg (23.89 lb)
Weight (with packaging):
13.65 kg (30.09 lb)
Service / Support Details:
3-Year Advanced Exchange Service and Premium Panel Guarantee
|
|
| Environmental and Regulatory |
|
|
ELECTRICAL
Voltage Required:
100 to 240 VAC / 50 or 60 Hz + 3Hz / 1.8 A (typical)
Power Consumption (Operational):
60W (typical) / 120W (maximum)9
Power Consumption Stand by / Sleep:
Less than 0.5 W
|
|
|
ENVIRONMENTAL
Temperature Range Operating:
0 to 40C (32 to 104F)
Temperature Range Non-operating:
Storage : -20 to 60 (-4 to 140 F)
Shipping : -20 to 60 (-4 to 140 F)
Humidity Range Operating:
10% to 80% (non-condensing)
Humidity Range Non-operating:
Storage : 5% to 90% (non-condensing)
Shipping : 5% to 90% (non-condensing)
Altitude Operating:
5000 m (16,500 ft) max
Altitude Non-operating:
10,668 m (35,000 ft) max
|
|
COMPLIANCE AND STANDARDS
|
ENERGY STAR
EPEAT Gold
TCO Certified Displays
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Dell Pixel Policy
|
|
 |
|
|
|
WHAT'S IN THE BOX
|
Monitor with stand (Monitor includes Dell UltraSharp Color Calibration Solution)
Power Cable
DVI-D Cable (Dual Link)
DisplayPort Cable (Mini DP to DP)
USB3.0 upstream Cable
Cable Tie
Drivers and Documentation media
Factory Color Calibration Report
Quick Setup Guide
Safety Information
|
|
 |
|
|
|
