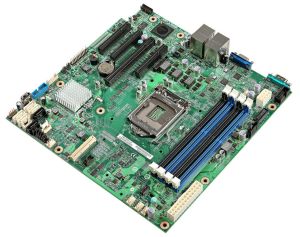

Intel S1200V3RPL Motherboard
  • LGA1150, C226, 4xDDR3-1600 ECC UDIMM, 6xSATA, RAID, 2xGigLAN, VGA, mATX

IMG 1 of 1
No Longer Available
Part Number:
223212
(?) Brand:
Intel Web Site
Manuf No:
DBS1200V3RPL
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DBS1200V3RPL, 735858266529

Intel Server Board S1200V3RPL



SPECIFICATIONS





Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
# of QPI Links 1
Board Form Factor uATX
Chassis Form Factor Pedestal
Socket LGA1150
Integrated Systems Available Yes
Integrated BMC with IPMI Yes
Rack-Friendly Board Yes
Embedded Options Available Yes
Max TDP 95 W
Included Items Intel Server Board S1200V3RPL with (4)SATA Cables, (1)Intel Server Deployment & Management DVD, (1) attention document, (1) Quick Start Users Guide

Description Intel Server Board S1200V3RPL with Intel C224 chipset, supports 4 UDIMM sockets with two channel native 1600MHz
Target Market Small Business/1st Server
Additional Information URL Link
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 ECC UDIMM 1333/1600 MT/s
# of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
# of DIMMs 4
ECC Memory Supported Yes
Graphics Specifications
Integrated Graphics Yes
Graphics Output VGA
Expansion Options
PCI Express Revision 3.0
# of PCI Express Lanes 16
PCIe x8 Gen 3 1
PCIe x1 Gen 2.x 1
PCIe x4 Gen 2.x 1
PCIe x8 Gen 2.x 1
Intel IO Expansion Module PCIe x8 Gen 3 1
Intel Internal IO Expansion Module PCIe x8 Gen 3 1
I/O Specifications
USB Revision 3.0 & 2.0
# of USB Ports 4
Total # of SATA Ports 6
RAID Configuration Intel RST (0, 1, 10, 5)
# of Serial Ports 1
# of LAN Ports 2
Integrated LAN Dual 1GbE
Embedded USB (eUSB) Solid State Drive Option Yes
Package Specifications
Max CPU Configuration 1
Low Halogen Options Available See MDDS
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d) Yes
AES New Instructions Yes
Intel Remote Management Module Support Yes
TPM Version TPM 1.2
Intel Matrix Storage Technology Yes
Intel Advanced Management Technology Yes
Intel Server Customization Technology Yes


No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Intel) web site.
