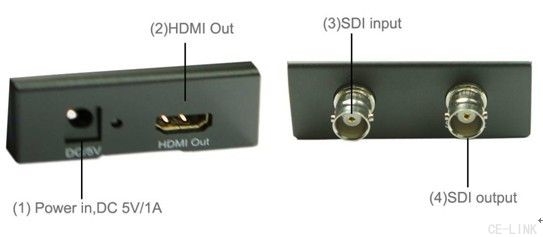

- Power in,DC 5V/1A/2A adapter use
- HDMI out, connect to the HDMI TV or HDMI monitor
- SDI input, connect to the SDI sources, such as SDI Camera, etc
- SDI output, loop output, can be connected to a monitor or SDI Device
CONNECTION
- connect the power to subject
- Through the RG59 cable (including quite a product) or the high quality of 75coaxial cable, it will connect " SDI in" to your SDI source
- Through the HDMI cable, it will connect the subject to HDMI Monitor
Note: if you need sent the program to the next monitor, you can connected the " SDI out" BNC Connector to the next SDI monitor or SDI Device.
OPERATION
- Operate SDI source, thenbegin to broadcast programs
- Begin toenjoy the show now
Features:
1. Support multiple video resolutions:
SD 525i and 625i
HD 720p 24, 25, 30, 50 and 60
HD 1080i 50, 60
HD 1080p 24, 25, 30, 50 and 60
2. Support multiple color space:
RGB or YCbCr 4:4:4 sampled
YCbCr 4:2:2 sampled
3. Support data rates: 270m~2.97Gbps.
4. Support 8 bit, 10 bit, 12 bit of deep color.
5. Support eight channels of 48k sampling rate of digital audio
6. SDI input. Support long coaxial cable, SD model 300 m, HD mode 130 m ( RG59 cable or its quite product).
7. One way SDI output, with the Re-clock function, can support multiple cascaded
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
lMain unit
lUser's Manual
Specifications:
|
Signal Inputs/Output
|
|
|
Input Connector
|
1xSDI BNC Male
|
|
Output Connector
|
1xHDMIFemale(A Type),
1xSDI BNC Male
|
|
Mechanical
|
|
|
Size(L-W-H)
|
1007025MM
|
|
Weight (Net)
|
202G
|
|
Warranty
|
|
|
Limited Warranty
|
1 Year Parts and Labor
|
|
Environmental
|
|
|
Operating Temperature
|
0?to +70?
|
|
Operating Humidity
|
10% to 85 % RH (no condensation)
|
|
Storage Temperature
|
-10?to +80?
|
|
Storage Humidity
|
5% to 90 % RH (no condensation)
|
|
Power Requirement
|
|
|
External Power Supply
|
5V DC@ 2A
|
|
Power consumption (Max)
|
2.5W
|
|
Regulatory Approvals
|
|
|
Converter Unit
|
FCC,CE,UL
|
|
Power Supply
|
UL,CE,FCC
|
|
Accessories Adapter
|
|
|
User Manual
|
English version
|
