All stock codes associated to this product
VS6116Pro+, VS-6116Pro+, QN00870

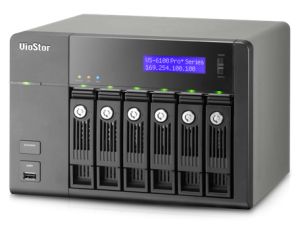

VS-6116 Pro+
16-channel / 6-bay / HDMI Local Display / Tower NVR
Features
Powered by the Intel dual-core processor and 4GB of memory, it delivers high performance at a throughput rate of 330 Mbps to ensure stable recordings and smooth playbacks of multiple megapixel cameras. The 6-bay VS-6116 Pro+ is designed for the SMB segment with the features of robust performance, solid reliability and high-definition local display.
The VS-6116 Pro+ can support up to 24TB of storage capacity, with 4TB on each hard drive respectively, to accommodate high quality H.264, MPEG-4, M-JPEG, and MxPEG recording videos. The server-grade mainboard, Sanyo Denki system fan, and heat pipe with fanless design assure the solid reliability for maximized system uptime. Moreover, the VS-6116 Pro+ supports local display via an HDMI cable, with up to 180 fps Full HD 1080p local display by hardware decoding.
Surveillance Features
Complete Recording Functions
High Quality H.264, MPEG-4, M-JPEG and MxPEG Recordings (depending on the camera models)
All-in-one Recording Functions
Continuous/manual/scheduled recording *- Alarm recording (by multiple events), alarm recording schedule *
- Pre-alarm and post-alarm recording
- Audio recording
- Auto snapshots
- Different recording schedules for the IP cameras.
Megapixel Recordings
The VioStor NVR supports megapixel recordings (up to 10-megapixel) from various IP cameras.
Real-time Digital Watermarking
The VioStor NVR supports real-time digital watermarking to protect the videos and snapshots from unauthorized modifications. The Watermark Proof utility is provided to verify whether or not the videos and snapshots are original.
Network Surveillance with Full HD 1080P Local Display
Diversified Modes for Local Monitoring
- 1, 4, 6, 8, 9, 10, 12, or 16-channel display modes
- Sequential display mode
High Resolution Local Display
The VioStor NVR provides an HDMI port which can be connected to an HDMI monitor or TV for doing monitoring in the full HD (1920 x 1080) resolution.
Convenient Control of PTZ and Speed Dome Cameras
The PTZ (Pan/Tilt/Zoom) cameras can be adjusted directly and the preset positions of the IP cameras can be viewed on the local display interface of the VioStor NVR.
Digital Zoom
Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces of the NVR.
On-screen Event Alert
When an event occurs, an alert icon will be shown instantly on the local monitoring page. The alert details can be viewed by clicking the alert icon
Video Search
The VioStor NVR supports convenient video search by date and time on the local playback interface.
Local Video Playbacks on HDMI Monitors or TVs
The VioStor NVR supports direct video playbacks on HDMI monitors or TVs.
Quick System Setup
The VioStor NVR can be set up in simple steps on the local display interface.
Network Surveillance by Web-based Interface to Perform
Real-time Remote Monitoring
Cross-platform Support
Use QNAP Surveillance Client for Windows and Mac to watch the live view and play back the recording files on the VioStor NVR.
Cross-browser Compatibility
On the Windows PC, you can also use Google Chrome, Microsoft Internet Explorer, or Mozilla Firefox to enjoy our surveillance features.
Multi-server Monitoring
Connect to one VioStor NVR and monitor up to 128 channels from other VioStor NVR servers over the LAN or WAN via an IE browser.
Note: The feature is supported by Google Chrome, Microsoft Internet Explorer, and Mozilla Firefox.
Diversified Remote Monitoring Modes
- 1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36, 42, 64-channel, and sequential display modes
- Dual-display mode
Smart Control of PTZ & Speed Dome Cameras
The PTZ (Pan/Tilt/Zoom) cameras can be directly adjusted by the web user interface of the VioStor NVR.
Preset Position Control and Auto Cruising
The preset positions of an IP camera can be viewed by clicking the corresponding number buttons on the monitoring page. The time interval can also be configured on the PTZ cameras to perform periodic monitoring.
Instant Event Notification
When the alarm recording is enabled and an event occurs, an alarm icon will be shown instantly on the monitoring page. The alert details can be viewed by clicking the icon.
Digital Zoom
Digital zoom (in/out) of the video image is supported on the monitoring and playback interfaces.
Dynamic E-map
The VioStor NVR provides the E-map function for users to upload the digital maps and indicate the locations of the IP cameras of a monitoring location or region.
Remote Video Playback
Multi-view Playback
Use the multi-view playback feature to divide a video equally into multiple sessions for doing playback in a multi-view window, or play the videos of multiple IP cameras in the multi-view window simultaneously.
Video Search by Date and Time, Timeline, Event, Intelligent Video Analytics (IVA)
The VioStor NVR supports quick video search by date and time, timeline, event, and intelligent video analytics (IVA), which includes motion detection, foreign object, missing object, out of focus, and camera occlusion.
Event Management
Advanced Event Management
VioStor NVR supports various event handling options for different kinds of events.
- Events: Motion detection, alarm input, connection failure, recording failure, and user-defined event.
- Actions: Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action.
Real-time SMS and Email Alert
Configure the SMTP server and SMSC server settings on the NVR in order to receive instant system warnings or error messages by email and/or SMS
Convenient Backup Solution
Scheduled Remote Replication
The VioStor NVR supports scheduled remote replication for performing secure data backup to a remote QNAP NAS on the local network.
The VioStor NVR supports scheduled remote replication for performing secure data backup to a remote QNAP NAS on the local network.
One Touch Auto Video Backup
Configure the one touch auto video backup button at the front of the NVR to copy the data from the NVR to an external storage device when the button is pressed.
Excellent Hardware Design
Intel CPU and DDRIII Memory for Superior System Performance
Powered by the Intel CPU and DDRIII memory, the VioStor NVR delivers superior performance for surveillance applications.
CPU Thermal Solution with Fan-Less Design
Fan-less design provides better performance, quiet operation, lower energy costs, and enhanced reliability.
Built-in Japanese Sanyodenki System Fan
Twice the lifespan of the competitors (at 85)
Lower failure rate (100% inspection in the Sanyodenki production line)
Linux Embedded System
The Linux-based VioStor NVR is more power-saving and less vulnerable to virus attacks compared to the PC-based surveillance solution.
Touch-N-Go PC-less Installation
Complete the first-time system installation, including hard disk initialization and RAID configuration, of the NVR by the LCD panel without using any PC.
Huge Storage Capacity for Long-term Recordings
The VioStor NVR supports up to 16TB of physical storage capacity (4TB hard drive x 4) for recording a large amount of video data over a long period of time.
Mobile Surveillance by VMobile
Use the VMobile network surveillance application on Android phone, Android Tablet, iPhone, iPad, or iPod touch to easily access video management functions Multi-view Playback
Use the multi-view playback featuresuch as remote live view and playback recordings. In addition, the account on the VioStor NVR can be used to connect to an unlimited number of NVRs and IP cameras by VMobile through Wi-Fi, 3G, or 4G networks.
Camera function
Fisheye Dewarping
The fisheye dewarping function, available on the web and local display interface for specific fisheye cameras and specific cameras with panomorph lens, assists in doing practical surveillance management, allowing the administrators to view the monitoring area in a clearer shape.
Security Control
Authority Management
Create multiple users on the VioStor NVR and assign them to different user groups (administrator, system manager, or user) with different rights for doing monitoring, playback, PTZ control, and audio monitoring.
Auto Logoff
The VioStor NVR supports automatic user logoff from idling configuration pages. The administrator can set the timeout period to log off the users when the idling time has been reached.
Host Access Control
Specify the host or IP connections to be allowed or denied to access the NVR.
On-line User List
View the record of users currently logged on and previously logged on to the NVR.
Detailed Event Logs
The VioStor NVR provides detailed event logs of system warnings, hard disk errors, network disconnections, UPS status, and access to the networking services of the NVR and video recordings
High Reliability and Smart Features
Advanced RAID with Hot-swap Design
The VioStor NVR supports RAID 0, 1, 5, 6, 5+hot spare, single, and JBOD disk configurations. Its hot-swap design allows a failed drive of a disk volume (RAID 1 or above) to be replaced by hot swapping without turning off the server.
Online RAID Capacity Expansion and Online RAID Level Migration
Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.
Online RAID Level Migration
Upgrade the disk configuration to a higher RAID level with the data retained without turning off the server.
S.M.A.R.T. & Advanced HDD Health Scanning (HHS)
S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) helps monitor the hard disk drives status. The VioStor NVR supports HHS (HDD Health Scan) for doing disk checking and bad blocks scanning.
Automatic System Startup after Power Recovery
The VioStor NVR supports automatic system startup after a power recovery.
UPS Support for 24/7 Service
The VioStor NVR supports APC, CyberPower, MGE, and YEC UPS devices to provide continuous services 24/7 against unexpected power outages.
DOM Architecture with Embedded Fail-safe Dual OS for Enhanced Reliability
All the OS and applications of the VioStor NVR are embedded in the DOM. The VioStor NVR allows system booting without accessing the physical disk sectors to prevent from unsuccessful system startup caused by bad blocks or file errors on the hard drives. Two operating systems are built on the DOM to boot the system alternatively upon every system startup. When one fails, the other one can be used for system startup and the failed OS is recoverable from the other healthy OS.
Network Services
Dual Gigabit LAN Ports
Failover
This mode allows the VioStor NVR to sustain the failure of one network port to provide continuous services.
Load Balancing
This mode provides bandwidth aggregation to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured).
Multi-IP Settings
Two IP settings can be configured on the NVR to allow network access from two different subnets.
Built-in DDNS Service
The VioStor NVR supports dynamic DNS (DDNS) for convenient access to the system by a domain name instead of a lengthy IP address.
Built-in NTP Server
This feature allows the connected IP cameras to synchronize their date and time settings with the NVR.
Convenient Data Access
The video data on the VioStor NVR can be accessed via the following protocols with proper access rights:
- SMB/CIFS (Windows).
- HTTP (Web file management)
- FTP
Easy Configuration and Management
System Setup in Simple Steps
The NVR can be set up in 6 simple steps via the local display or web-based interface (Internet Explorer).
Web-based User Interface
All the system configurations, monitoring, and playback features of the NVR can be managed by the web-based interface.
Smart Search of IP Cameras for Quick Settings
QNAP provides an intelligent software utility, Finder, to search for IP cameras and configure the system settings on the local network quickly.
| Recording |
| Supported Camera Models |
Please visit
https://www.qnap.com/NVR/CompatibilityX01.html |
| Number of Channels Supported (Recording) |
Up to 16 |
| Recording Mode |
Continuous/ manual/ schedule recording
Alarm recording/ multiple alarm recording schedules |
Buffer Storage for Alarm Images
(before and after events) |
Pre-recording: Up to 300 sec
Post-recording: Up to 300 sec |
| Recording Performance |
Up to 30 fps at 1080P,720P,VGA for each channel
* Real performance may vary in different environment |
| Megapixel Recording |
Supports megapixel cameras (up to 10-megapixel) |
| Network Throughput |
330 Mbps |
| File Format |
AVI (QNAP codec is required for playback) |
| Recording Enhancement |
Real-time digital watermarking, auto snapshot |
| Application |
| Dewarping |
Support the specific fisheye IP Cameras and IP camera with panomorph lens on remote monitoring/playback and local display interface
* Please visit https://www.qnapsecurity.com to get the compatibility list |
| Local Display |
| Display Mode |
1, 4, 6, 8, 9, 10, 12, or 16-channel display mode, sequential display mode |
| Hardware Decode |
Full HD 1080P 180FPS
*The NVR will auto detect H.264 stream format and activate hardware decoder for 6 CH live view. |
| Local Monitoring Enhancement |
Full screen display, event notification, PTZ control, digital zoom |
| Local Playback |
Single view playback from local NVR server |
| Search Mode for Local Playback |
By date & time |
| Playback Control |
Play, pause, stop, reverse play, next/ previous video file, different speed control |
| Local Playback Enhancement |
Full screen display, digital zoom |
| Export |
Convert multiple recording files to the external USB device instantly |
| System Administration |
Quick configuration, administration password, network settings, time settings, disk volume configuration, camera settings |
| Remote Monitoring (Windows) |
| Display Mode |
1, 4, 6, 8, 9, 10, 12, 16, 20, 25, 36,42 or 64-channel display, sequential mode, multi-display mode |
| Video Compression |
H.264/ MPEG-4/ M-JPEG/ MxPEG (depending on the camera models) |
| Video Setting |
Resolution, quality, frame rate |
| Multi-server Monitoring |
Up to 128-channel monitoring from multiple VioStor NVR servers (browser-based) |
| Monitoring Enhancement |
Full screen display, video snapshot, manual recording, event notification, PTZ control, digital zoom |
| E-map |
Uploading the digital maps and indicating the locations of the IP cameras and GPI devices of a monitoring location or region |
| Remote Playback (Windows) |
| Display Mode |
1, 4, 6, 8, 9, 10, 12 or 16-channel display |
| Search Mode |
By date & time, timeline, event, and intelligent video analytics (IVA) |
| Intelligent Video Analytics (IVA) |
Motion detection, missing object, foreign object, out of focus, and camera occlusion |
| Playback Mode |
Play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control |
| Playback Enhancement |
Full screen display, video snapshot, digital zoom, digital watermarking |
| Export |
Convert recording files to one avi file |
| Download |
Download recordings via the web |
| QNAP Surveillance Client for Mac |
| Display Mode |
1, 4, 6, 8, 9, 10, 12, or 16-channel display mode, sequential display mode |
| Monitoring Enhancement |
Full screen display, event notification, PTZ control, digital zoom |
| Playback |
Single view playback |
| Search Mode for Playback |
By date & time |
| Playback Control |
Play, pause, stop, reverse play, next/ previous video file, different speed control |
| Playback Enhancement |
Full screen display, digital zoom |
| Export |
Convert multiple recording files to Mac device instantly |
| Advanced Event Management |
| Events |
Motion detection, alarm input, connection failure, recording failure, and user-defined event |
| Actions |
Video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output, and user-defined action |
| Backup |
| Schedule Remote Replication |
Schedule video data backup to a NAS on the local network |
| Security Control |
| Authority Management |
Different user groups and rights can be assigned to different users |
| Host Access Control |
Specify the connections to be allowed and denied to access the VioStor NVR |
| Auto Logoff |
Automatic user logoff from idling configuration pages |
| Event Logs |
Detailed event logs |
| On-line Users List |
Record of the users currently logged on and previously logged on to the VioStor NVR |
| Digital Watermarking |
Verify whether or not the videos and snapshots are original |
| Reliability |
| Operation System |
Linux-embedded system, free from PC crash and virus attack |
| Disk Management |
Single disk, RAID 0, RAID 1, RAID 5, RAID 5+ hot spare, RAID 6, RAID 6+ hot spare, and JBOD/Linear
Online RAID Capacity Expansion, Online RAID Level Migration
HDD S.M.A.R.T., bad blocks scan |
| UPS |
APC/ CyberPower/ MGE/ YEC (USB UPS) |
| Network Services |
| Support |
HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP, failover, load-balancing, multi-IP setting |
| Dual Gigabit LAN |
Failover/ load-balancing/ multi-IP setting |
| Services |
Web File Manager, FTP, SMB/CIFS |
| Language Support |
| Language |
Czech/ Danish/ Dutch/ English/ French/ Finnish/ German/ Hungarian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Russian/ Spanish/ Swedish/ Simplified Chinese/ Traditional Chinese/ Turkish |
| Remote Surveillance |
| Client PC |
Google Chrome, Internet Explorer, Mozilla Firefox
QNAP Surveillance Client for Windows |
| Mac |
QNAP Surveillance Client for Mac |
| Android Tablet, phone |
VMobile |
| iPad, iPhone, iPod Touch |
VMobile |
| Windows Mobile (6.1, 6.5) Device |
VMobile |
| Client PC Requirement (Suggested system requirement for better video performance) |
| CPU |
M-JPEG format (up to 20 channels): Dual core CPU 2.6 GHz or above
MPEG-4/ H.264/MxPEG format (up to 20 channels): Quad core CPU 2.6 GHz or above
* For higher surveillance performance, please select more advanced PC models. |
| Memory |
2 GB or above |
| Operation System |
Microsoft Windows Vista/ 7/ 8 or Mac OS X 10.7.x, 10.8.x |
| Web Browser |
Microsoft Internet Explorer 8/9/10 (Windows PC, desktop mode, 32-bit)
Google Chrome 23.0.1271.64 m (Windows PC)
Mozilla Firefox 17.0.1 (Windows PC) |
| Network Interface |
10/100/1000 Mbps |
| Display Resolution |
1280 x 720 pixels or above |
| Utility Software |
| QNAP Finder |
The client application to discovery and quick setup of the VioStor NVR |
| QNAP Surveillance Client For Windows |
The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on client PC. |
| QNAP Surveillance Client For Mac |
The client application used to remotely access QNAP NVR servers for performing video monitoring and playback functions on Mac. |
| QNAP Codec |
The video codec to play the recording files on Windows Media Player. |
| VMobile |
The Mobile App to monitor the network cameras on the VioStor NVR by the Android phone, Android tablet, iPhone, iPad, iPod touch, and Windows mobile (6.1, 6.5) device |
Specifications:
| Processor |
Dual-core Intel processor |
| Memory |
4GB RAM |
| HDD Capacity |
6 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive
NOTE:
- The standard system is shipped without HDD.
- For the HDD compatibility list, please visit :
https://www.qnapsecurity.com/pro_compatibility.asp
|
| HDD Tray |
6 x hot-swappable and lockable tray
|
| LAN Port |
2 x Gigabit RJ-45 Ethernet port |
| LED Indicators |
Status, LAN, USB, HDD1-6 |
| USB |
2 x USB 3.0 port (Back: 2) |
| 5 x USB 2.0 port (Front: 1; Back: 4) |
| Support pen drive, USB mouse, USB keyboard, USB sound card, and USB UPS etc. |
| Buttons |
Power button, One-touch-auto-video-backup button, Reset button |
| LCD Panel |
Mono-LCD display with backlight
Enter button, Select button for configuration |
| Alarm Buzzer |
System warning |
| Audio |
Audio In/Out (reserved) |
| Form Factor |
Tower |
| Dimensions |
185 (H) x 260 (W) x 235 (D) mm |
| 7.28 (H) x 10.24 (W) x 9.25 (D) inch |
| Weight |
Net weight: 5.7 kg (12.56 lbs) |
| Gross weight: 7.0 kg (15.43 lbs) |
| Operation Environment |
Temperature 0~40C |
| Humidity 0~95% R.H. |
| Power Supply |
Input: 100-240V AC, 50/60Hz, Output: 250W |
| Power Consumption |
In Operation: 91W
(with 6 x 2TB HDD installed) |
| Secure Design |
K-Lock security slot for theft prevention |
| Video Output |
1x HDMI |
| Suggested video output resolution: 1920 x 1080 (Full HD) |
| Fan |
2 x quiet cooling fan (92 mm, 12V DC) |
| Certification |
CE, FCC, VCCI, BSMI |
