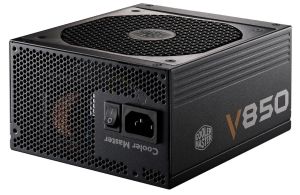

CoolerMaster 850W V850 V-Series - ATX12V/V2.31, 80PLUS Gold
  • M/B 20+4-Pin(1), CPU 4+4-Pin(2), PCI-E 6+2-Pin(6), SATA(9), 4-Pin Peripheral(4), 4-Pin Floppy(1)

IMG 1 of 5
No Longer Available
Part Number:
225212
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS850-AFBAG1-AU
RS850AFBAG1AU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS850AFBAG1AU, RS850-AFBAG1-AU, CMPSRS850AFBAG1AU, CM-PS-RS850-AFBAG1AU, 4719512041604, 884102020780

Overview

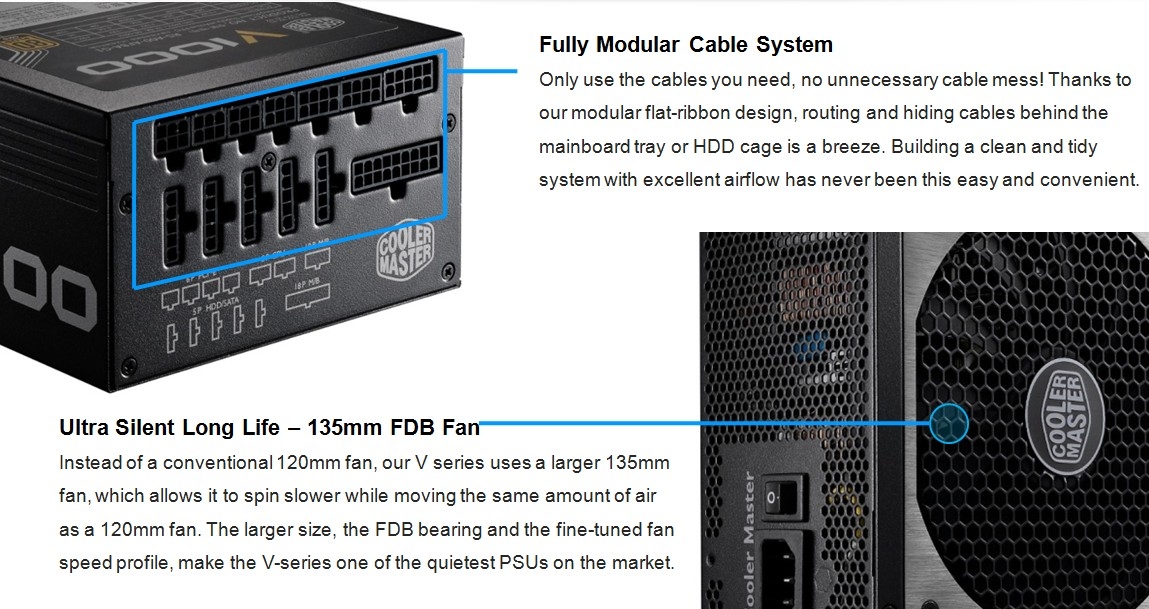

  • Fully modular cable design incorporates a single 1000W +12V output that delivers up to 70A.
  • 80 PLUS Gold certified: up to 93% efficiency @ 50% load

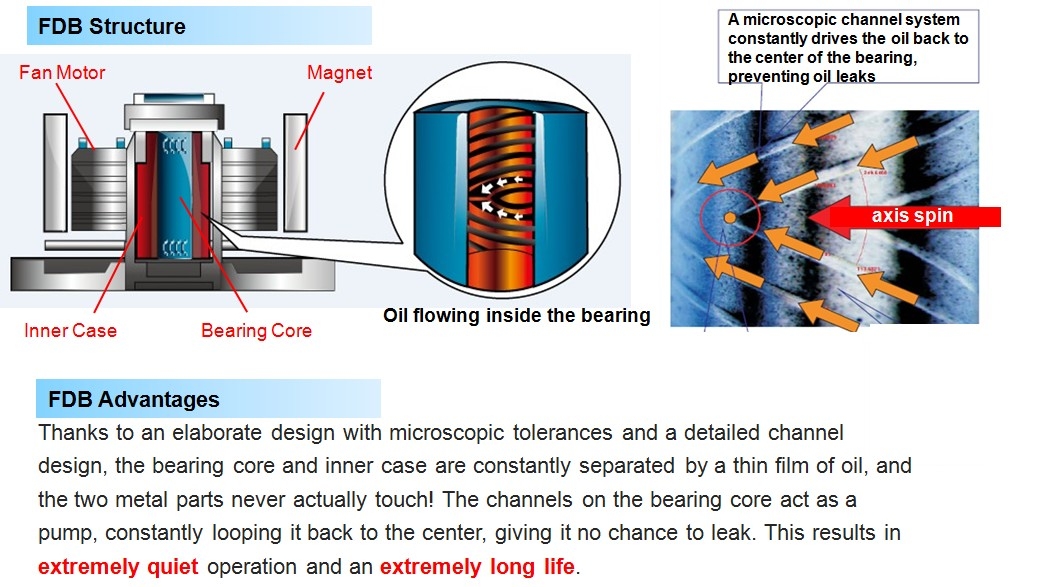

  • Silent 135 mm FDB fan for lower noise and longer lifespan
  • Six PCI-E 6+2 pin connectors to support high-end GPUs

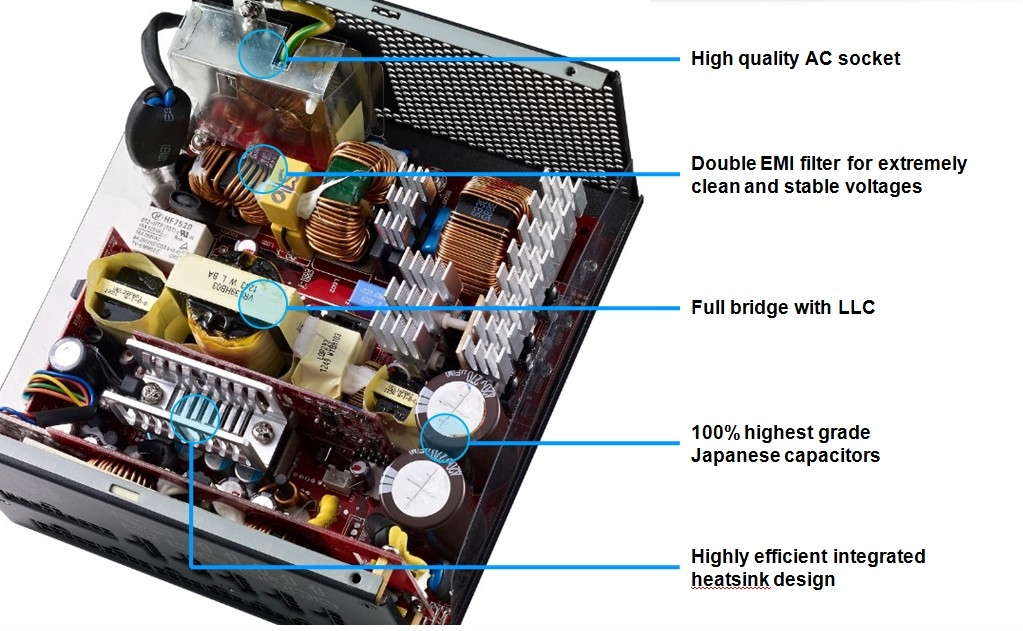

  • 100% high quality Japanese capacitor ensures performance and reliability.
  • Reliable 5 year warranty

Specifications

Model

RS-850-AFBA-G1

Type

Intel Form Factor ATX 12V V2.31

Dimension (W x L x H)

150 x 170 x 86mm / 5.9 x 6.7 x 3.4 inch

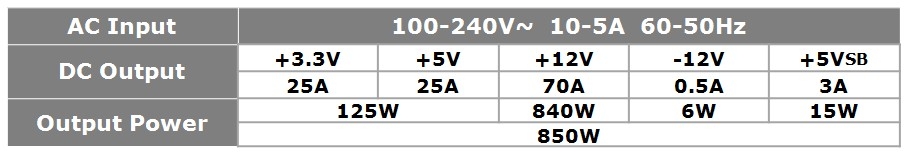

Input Voltage

90-264Vac (Auto Range)

Input Current

10 - 5A

Input Frequency Range

60 - 50Hz

PFC

Active PFC (>0.9)

Power Good Signal

100-500ms

Hold Up Time

>17ms

Efficiency

90% Typically

MTBF

>100,000 Hours

Protection

OVP/UVP/OPP/OTP/SCP

Output Capacity

850W

Operation Temperature

0~40C

Regulatory

CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC

Fan

Silent FDB 135mm

Certifications

80 Plus Gold

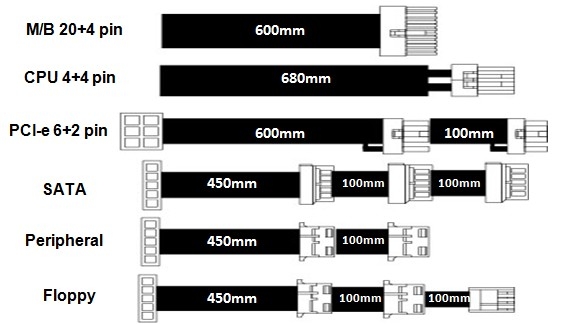

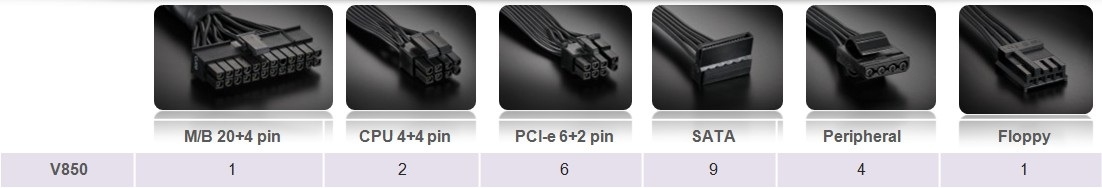

Connector

M/B 20+4 Pin Connector x 1

CPU 4+4 Pin x 2

PCI-e 6+2 Pin x 6

SATA x 9

4 Pin Peripheral x 4

4 Pin Floppy x 1

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
