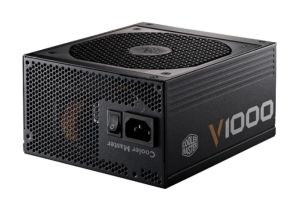

CoolerMaster 1000W Vanguard V1000 Fully-Modular Power Supply - ATX12V/V2.31, 80PLUS Gold
  • 135mm Silent FDB Fan, Fully Modular Cable Design, 80 Plus Gold Certified
  • 9x SATA, 8x PCI-E 6+2-Pin

IMG 1 of 4
No Longer Available
Part Number:
225290
(?) Brand:
CoolerMaster Web Site
Manuf No:
RSA00-AFBAG1-AU
RSA00AFBAG1AU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RSA00AFBAG1AU, RSA00-AFBAG1-AU, 3711693, 4719512041611, 884102020797
V1000

RSA00-AFBAG1

Description


Developed to be the highest quality, Cooler Master carefully sourced every aspect of the V Series PSU line to produce a high-efficiency and stable power supply. It's highly efficient even at low loads, extremely stable, and works well beyond the parameters of 80PLUS specifications.

  • Fully modular cable design incorporates a single 1000W +12V output that delivers up to 83A
  • 80 PLUS Gold certified: up to 93% efficiency @ 50% load
  • Silent 135 mm FDB fan for lower noise and longer lifespan


  • Eight PCI-E 6+2 pin connectors to support high-end GPUs
  • 100% high quality Japanese capacitor ensures performance and reliability.
  • Reliable 5 year warranty




Specifications:

Model RSA00-AFBAG1-US; RS-A00-AFBA-G1

Type Intel Form Factor ATX 12V V2.31

Dimension 150 x 170 x 86mm / 5.9 x 6.7 x 3.4 inch

Input Voltage 90-264Vac (Auto Range)

Input Current 12 - 6A

Input Frequency Range 60 - 50Hz

PFC Active PFC (>0.9)

Power Good Signal 100-500ms

Hold Up Time >17ms

Efficiency 90% Typical

MTBF >100,000 Hours

Protection OVP/UVP/OPP/OTP/SCP

Output Capacity 1000W

Operation Temperature 0-4C

Certification CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC

Fan Silent FDB 135mm

Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 2
PCI-e 6+2 Pin x 8
SATA x 9
4 Pin Peripheral x 4
4 Pin Floppy x 1

Warranty 5 years

UPC Code 884102020797
