All stock codes associated to this product
VPLFH31B, 13VPLFH31B, 4905524904000

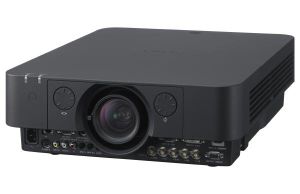

VPLFH31/B
4300 lm WUXGA Installation Projector
The VPL-FH31 3LCD Installation Projector outputs high bright 4300lumens color light output, with native WUXGA resolution suitable for displaying todays high resolution computers and 1080p video sources. Advanced integration capability includes built-in edge blending feature for creating large uniformed image using multiple projectors and advaned geometric correction. Combined with 1.6x flexible standard zoom, horizontal+vertical wide lens shift range, and a wide variety of inputs means it can perform where other projectors would struggle. The projectors are now available in two different color options white and black. White model is suitable for bright room environments (i.e.; classrooms and meeting rooms), while the black model will blend in dark environment (i.e.; museum spaces). The black model is also recommended for rental and staging application where products tend to get dirty after several use. Having wide range of inputs, All Range Crisp Focus Lens, and other advanced projection capabilities such as DICOM GSDF simulation gamma mode, the new models are obvious projector choices for venues that demand quality and practicality.
Highlights:
- 4300 lumens 3LCD Projector
- 2000:1 Contrast Ratio
- Native WUXGA (1920 x 1200) Resolution
- Up to 4000h expected lamp life
- Versatile inputs including HDMI and DVI-D
- RJ45 for network control and monitoring
- Optional lenses available
- Up to V : +60% -0%, H : +/-32% Optical Lens Shift
- Built-in Edge blending capability
- Advanced Geometric Correction
- Vertical and Horizontal Keystone correction : Max +/-30%
- Equipped with Bright Era 3LCD Panels
- 12 bit 3D Digital Gamma Correction
- Synchronized Lamp and Filter maintenance timing
- Eco Mode for savings on energy
- Designed to blend in visually
- Picture by Picture Image Projection
- DICOM GSDF Simulation Gamma Mode
- Closed Captioning
- Black cabinet which blends in to dark environments
Specifications:
| Optical Specifications |
Detail:
|
| Color Light Output |
4300 lumens (lamp mode : high), 3400 lumens (standard) |
| Light Output |
4300 lumens (lamp mode : high), 3400 lumens (standard) |
| Contrast Ratio |
2,000:1 |
| Lamp |
High-pressure mercury lamp 275 W type |
| Lamp Life |
3000H(lamp mode : High) / 4000H(Standard) |
| Projection Lens |
Approx. 1.6x manual zoom / Manual focus |
| Throw Ratio |
1.39 to 2.23:1 |
| Screen Coverage |
40" to 600" |
| Input/Output Specifications |
Detail: |
| S-Video In |
Y/C Mini DIN 4-pin, Audio : RCA (shared with VIDEO IN) |
| Composite Video In |
RCA, Audio : RCA x2 (shared with S VIDEO IN) |
| Analog RGB/Component In |
5BNC (RGB / Y Pb Pr) Audio : Stereo mini jack, Mini D-sub 15-pin (RGB) Audio : Stereo mini jack |
| Network |
RJ-45: 10Base-T / 100Base-TX |
| Monitor Out |
Mini D-sub 15-pin (from RGB/Y Pb Pr and RGB input) |
| Variable Audio Out |
Stereo mini jack (variable out) |
| Remote Control |
RS232C (D-sub 9pin), Control S (Stereo mini jack, Plug in power DC5V) |
| Electrical Specifications |
Detail: |
| Color System |
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Acceptable Computer Signals |
Maximum display resolution : 1920 x 1200 dots |
| Acceptable Video Signals |
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p |
| General Specifications |
Detail: |
| Dimensions (W x H x D) |
W 15 11/32 x H 5 13/16 x D 18 25/32" |
| Weight |
18 lbs 1 oz |
| Power Requirements |
AC 100V to 240V, 4A to 1.6 A, 50 Hz/60 Hz |
| Power Consumption |
400W (AC 100 V-120 V) |
| Other Specifications |
Detail: |
| Environmental Notice |
Lamp in this product contains mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Telecommunications Industry Association(www.eiae.org). |
