HOME / Back -> Projectors -> Multimedia Projectors -> Epson

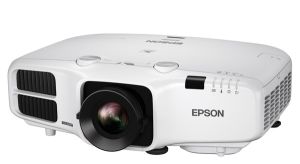

Epson EB-4950WU Multimedia LCD Projector - 1920x1200, 4500 Lumens, 5000;1, 4000Hrs, VGA, HDMI, DisplayPort, RS232C, RJ45, Speakers

IMG 1 of 1
No Longer Available
Part Number:
225860
(?) Brand:
Epson Web Site
Manuf No:
EB4950WU
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
EB4950WU, V11H563053, 9314020614118

Epson EB-4950WU


Installation Multimedia Projectors

Overview

The Epson EB-4950WU provides brilliant colour and amazing image quality with 4,500 lumens of colour brightness and 4,500 lumens of white brightness. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. Whether its used in the boardroom, or your living room, the EB-4950WU delivers bright, vivid images that will captivate any audience.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
  • Crisp Clear Images Featuring WUXGA resolution.
  • Lens Shift Align images easily with horizontal and vertical lens shift.
  • Versatile connectivity Easily integrate with any system with HDMI and DisplayPort.
  • Convenient Remote Management Remotely monitor and control presentations.
  • Epson iProjection Wirelessly display and control content from your iPhone, iPad, iPod touch and Android devices.
  • Arc and Point Correction Fine tune image geometry to perfection.
  • Passive 3D For stacked 3D applications using polarised passive glasses.

3x Brighter Colours with Epson*

Brilliant image quality requires high colour brightness (colour light output), and Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors.

One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not be sure to ask for a projectors colour brightness specification.

Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

3x Brighter Colours with Epson


Faroudja DCDi Cinema for advanced video quality

 The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, Deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.

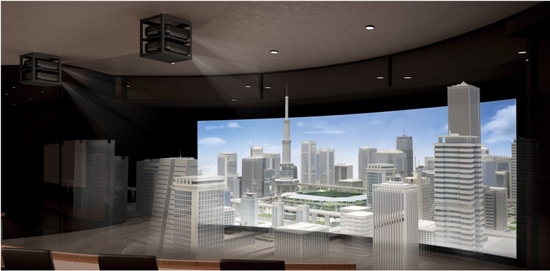

Stacked 3D solutions

You can create an impressive viewing experience with twice the brightness. Epsons stacked 3-D solution (requires two projectors). Using polarised filters, in combination with low-cost 3-D glasses.


Split Screen

Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

Easy Management

The EasyMP Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.

Schedule function

Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.

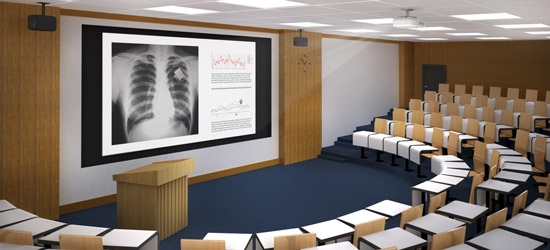

DICOM Simulation Mode

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode2 is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.


Epson iProjection App


Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.

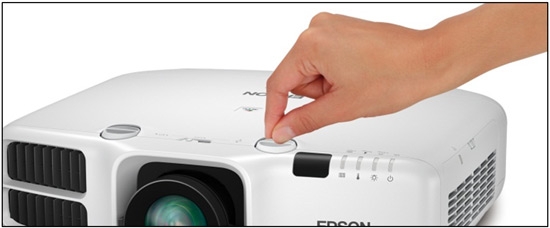

Lens shift

Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to 50 on the vertical axis and up to 10 on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.


Centered lens design

Featuring a centered lens design, the Epson 4000 series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.

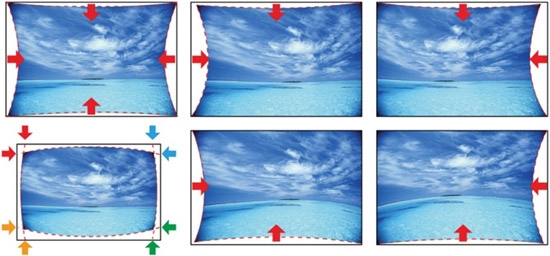

Arc correction

Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.


Easy maintenance

Offering convenient access to the lamps and filter, the Epson 4000 series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.

Protect your investment long-life electrostatic air filter

The Epson 4000 series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule3 and can capture particles as small as three microns, due in part to its pleated, expanded design.

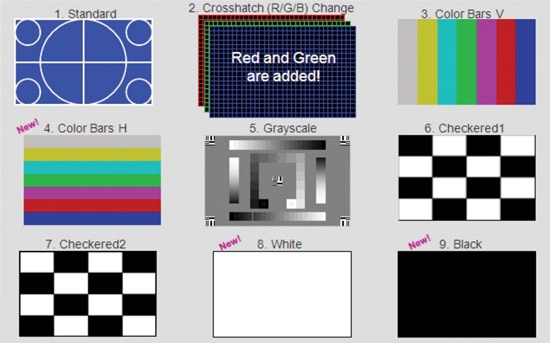

Convenient test patterns

Make sure your presentation is setup correctly before you begin. The Epson 4000 Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.

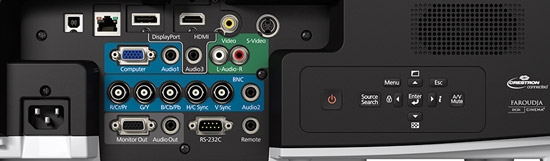

Connectivity Panel


Specifications:

PRODUCT NAME Epson EB-4950WU
PRODUCT CODE V11H563053
WHAT'S IN THE BOX
  EB-4950WU Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM.
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.76-inch wide panel with MLA
OPTICAL
Zoom 1 - 1.8(Optical)
Screen Size 50" to 300" [1.35m to 8.36m] (Zoom: Wide)
50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance 100" screen 2.75 m - 4.98 m
Throw Ratio 1.26 (Zoom: Wide), 2.30 (Zoom: Tele)
Projection Lens F Number 1.65-2.55
Projection Lens Focal Length 21.28 -37.94mm
Focus Method Manual
Colour Light Output 4,500 Lumens
White Light Output 4,500 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 5,000:1
Lamp Hours 4000 hours (Normal)
5000 hours (ECO)
Lamp Type 280 W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
Lens Shift Vertical: -50% to +50%
Horizontal: -10% to +10%
Tilt Angle -2.50 to 10 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer 1x D-sub 15-Pin (RGB)
Input: Digital 1 x HDMI, 1 x DisplayPort
Input: Audio 3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control 1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Wireless Connectivity Optional
Output: Video 1 x Monitor Out (via D-sub 15-pin)
Output: Audio 1 x Stereo mini-jack
Speaker Output 10W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
Split Screen Yes
Edge Blending
Arc Correction Yes
Frame Interpolation
360 Degress Projection
Passive 3D Capable Yes
Instant Off Yes
Direct Power On/Off Yes
Security

Kensington  style lock provision
Padlock & Security cable hole
Wireless LAN Lock
Colour Modes Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection
GENERAL
Dimensions D x W x H 472 x 159 x 354 mm
Weight 6.6kg
Lamp Warranty 1 Year or 750 Hours*
Projector Warranty 3 Years
Power Consumption: Lamp on 388 W
Power Consumption: Standby 0.47 W
Noise Level Normal/Eco: 38/30 dB

* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS Item Code Description
  V13H010L77 Replacement Lamp
  V13H134A45 Replacement Filter
  V12H418P13 Wireless LAN adaptor
  V12H005M09 Quick Wireless USB Key
  V12H618P01 Polarizers for passive 3D
  V12H485001 Passive Adult 3D Glasses (5 pcs)
  V12H486001 Passive Child 3D Glasses (5 pcs)
  V12H003B22 Ceiling Mount
  V12H003P13 Extension Pole 668-918mm
  V12H003P14 Extension Pole 918-1,168mm
  V12H526040 Flush Ceiling mount

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (Epson) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
