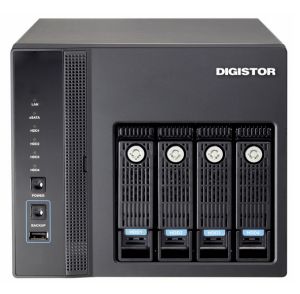

DS-4209 Pro DIGISTOR NVR is a true PC-less and 4-bay standalone NVR. It gives a complete network surveillance system with not only remote monitoring but also local display with 1080p Full HD up to 200fps outstanding monitoring performance.
DS-4209 Pro DIGISTOR NVR shows perfect monitoring via local display in1080p Full HD up to 200fps
- Various Display Modes
- Full HD 200fps Monitoring
- HD 270fps Monitoring
- Convenient Control of PTZ and Speed Dome Cameras
DS-4209 Pro offers 1/4/9/12/16/20/25 & 5+1-channel & sequential and full screen display modes. DIGISTOR NVR supports video output via either HDMI or VGA connector for high image quality local display. Users can simultaneously monitor up to 9 channels in 1920 x 1080 (Full HD) and up to 200 fps (frame rate per second) outstanding monitoring performance. Also, users can control the pan, tilt and optical zoom of IP camera in local display interface. Both monitoring and configuration can be accessed in local display.
Frame rate in Full HD/HD local display is based on camera's compression format H.264.
The maximum resolution in live view of local display supports up to Full HD.
The max. FPS might be varied from different environments
Real-time Remote Monitoring
DS-4209 Pro DIGISTOR NVR offers instant monitoring via remote IE browser anytime, anywhere
- Multi-NVR Server Monitoring
- Various Monitoring Modes
- Convenient Control of PTZ and Speed Dome Cameras
- Digital Zoom in/ Zoom out
DIGISTOR NVR lets users monitor remotely via IE browser. In web-based interface, DS-4209 Pro offers 1/4/8/9/10/12/16/20/25/30/36 & 5+1/12+1-channel & sequential and full screen display modes and supports up to 9 channels. DIGISTOR NVR can be a multi-NVR server to connect other DIGISTOR NVR and select a maximum of 144 channels as well as simultaneously monitor other remote NVR sites without installing any extra VMS software. Also, remote monitoring offers control of PTZ camera and lets users view preset positions of the IP camera.
Excellent Video Recording
Smart and scheduled recording
- Various Compression Formats
- Various Recording Modes
- Flexible Threshold of Recorded Videos
- Multi-stream for Monitoring & Recording
DIGISTOR NVR gives users high performance megapixel recording and supports MJPEG, MPEG-4 and H.264 formats. Users can configure different recording schedules such as continuous, schedule, event and audio recording for each camera in high megapixel recording. Users can also set recording percentage or days for keeping videos to overwrite the oldest video files automatically. Furthermore, DIGISTOR NVR supports multi-stream to let users set video format, frame rate, resolution and other features in different conditions to save bandwidth for monitoring and recording.
Efficient Event Management
Diversified events and corresponding trigger actions
- Event Recording
- E-Mail Notification
- E-Mail Video Clip
- Buzzer Alarm
- User-defined Digital Output Actions
- Events: Camera connection lost, intelligent motion detection, user-defined digital input and NVR system connection lost
- Actions: Event recording, E-Mail Notification, video clip via E-Mail, buzzer and user-defined digital output
When an event is triggered, such as motion detection or digital input, DIGISTOR NVR can do various actions such as recording video in the server and sending a video clip instantly to users by E-mail. In addition, buzzer can be enabled to sound up to 60 seconds as abnormal events occur. Users can also define digital output actions by themselves, such as fire alarm system.
Intuitive Multi-channel Playback
Intuitive playback and clear interface to view recorded video
- User-friendly Video Search by Date, Time, Channel, Normal Record, Event and Recovered File
- Exporting Recordings
- Taking a Snapshot
DIGISTOR NVR lets users search the recorded video by selecting date, time, channel number, normal record, event and recovered file. DIGISTOR NVR allows exporting video files in AVI format and during playback users can also take a snapshot and save photo in PC.
Advanced and Reliable Security System
Reliable security choices in DIGISTOR NVR
- Stable and Secure Linux-embedded System
- Detailed Log Information
- User Privilege Management
- Flexible Permission and Prohibition of IP Range for Controlling the Access
DIGISTOR NVR is a Linux-embedded operating system which is efficient to avoid virus attack and hacker intrusion. Compared with PC, Linux-embedded system offers more green and power saving. With over six clear log systems, users can do quick trouble shooting and security control of DIGISTOR NVR. As for privilege management, administrator can add multiple user groups like power user and user to configure live view and playback access. Besides, users can specify IP address or network segment to permit or prohibit specific IP address as white or black list from live view or playback access.
Smart, Simple and Mobile Enhancement
Smart enhancement brings you more convenience
Ingenious USB Backup
Configuration in advance Save time for backup in convenience
Users can set a maximum of days and hours to backup the latest video files and configure the specific channels for duplication in advance. After setting the time and channels, users just need to press USB BACKUP button on the NVR and then export the video files to external USB device. When an urgent need arises, video files are backed up efficiently and quickly.
Superior Hardware Design
DIGISTOR NVR’s excellent hardware performance truly enhances your efficiency
- High Network Throughput for High Megapixel Recording
- Supports up to 4TB Storage Capacity per Hard Disk Drive
- Built-in Advanced RAID Configuration with Hot Swap Design
- Automatic Recovery from DIGISTOR NVR Power Outage
- Built-in GPIO: 4 in 2 out
DIGISTOR NVR is powered by Intel CPU for excellent megapixel recording and provides network throughput up to 360Mbps. DIGISTOR NVR also supports each hard disk drive up to 4TB. Through DIGISTOR NVR, users can configure JBOD, RAID0, RAID1, RAID10 and RAID5 in local display or web-based interface; hot swap design allows users to replace failed HDD without turning off the server. DIGISTOR NVR will also automatically recover when power resumes after an outage and recover missing file caused from power outage. On the other hand, DIGISTOR NVR supports built-in General Purpose I/O for both choices of setting digital input and output.
Various Network Services
Simple and functional complement of network video recorder
- DDNS Service
- NTP Server
- Static IP or DHCP
- Quick UPnP Search for Connecting Camera
- Windows Networking and FTP Service
User can register a domain name from a dynamic DNS (DDNS) provider and enable DDNS in DIGISTOR NVR. DIGISTOR NVR supports NTP (Network Time Protocol) by selecting time zone for synchronizing the date and time. User can flexibly set static IP or DHCP server to enter the network video recorder. With Windows networking and FTP service, DIGISTOR NVR lets user quickly access the video files.
Specifications:
Local Display
Display Mode
1/4/9/12/16/20/25 & 5+1-channel & sequential and full screen display modes
Supported Channels
Up to 9 (Total 200fps in Full HD/ 270fps in HD)
Local Monitoring Control
PTZ control, optical zoom, full screen display
Local Configuration
User can set configuration via local display interface
Remote Monitoring
Display Mode
1/4/8/9/10/12/16/20/25/30/36 & 5+1/12+1-channel & sequential and full screen display modes
Supported Channels
Up to 9
Multi-NVR Server Monitoring
Up to 144 Channels
Control
PTZ control, digital zoom, optical zoom, full screen display, video sanpshot and preset position
Audio Status Support
Yes
Alarm Status Support
Yes
Recording Status Support
Yes
Remote Monitoring Support
IE Browser 7.0 or Above
Yes
iPhone iOS 5.0
Yes
Android Phone 2.3 or Above
Yes
Remote Recording
Supported Channels
Up to 9
Recording Mode
1· Recording by schedule/ Continuous recording/ Event recording/No recording/ Audio recording support
2· Automatic recycle/ Keep video days
File Format
AVI format
Video Format
MJPEG/MPEG-4/H.264 (Depending on the camera models)
Maximum Network Throughput
360Mbps (Varied in different environment)
Remote Playback
Multi-channel Playback
Support maximum 4-channel playback simultaneously
Search Mode
Search by date, time, camera number, normal record, event and recovered file
Control
Play, pause, speed control, zoom in/ out, full screen display and video snapshot
Export
Export video files in AVI format and take a snapshot
Event Management
Event
Camera connection lost, motion detection, user-defined digital input and NVR system connection lost
Action
1. Event recording: When motion detection or digital input is triggered, video will be stored in chunks (typically 5 minutes each) in DIGISTOR NVR
2. E-Mail notification: SMTP server service for sending E-Mail
3. Video clip via E-Mail: Pre-time of record: Up to 10 sec (Before event), Post-time of record: Up to 10 sec (After event)
4. Buzzer: Buzzer can be enabled up to sound for 60 seconds
5. User-defined digital output Security Management User Privilege Management
User can be assigned for different levels of privilege
Log System
Hardware log, NVR log, event log, current user log, historical user log and file access log
Access Control
Specify IP address or network segment for the white and black list
Auto Logout
Auto logout idle time limit from configuration page
Operating System
Linux-embedded system
USB Backup
USB BACKUP
Insert external USB device into DigiStor and press USB BACKUP button in 3 seconds to duplicate the video file instantly
Network Service
Protocol Support
HTTP, TCP/IP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP
File Sharing Service
Windows networking, FTP service
Reliability
Disk Management
JBOD, RAID0, RAID1,RAID10 and RAID5 disk configurations
Suggested PC Requirement
Operating System
Microsoft® Windows® XP (32-bit)/ Vista/ 7 (32 and 64-bit)
Browser
Microsoft® Internet Explorer 7.0 or above (32-bit)
CPU
For channels under 16 : Intel® Dual core CPU 3.0 GHz or above.
For channels over 16 : Intel® i5/i7 CPU 3.3 GHz or above.
Memory
For channels under 16 :DDR3 4G or above.
For channels over 16 : DDR3 8G or above.
Suggested Switch Requirement
Switch
Gigabit switch is highly recommended
Specifications:
CPU
Intel
Memory
2GB DDRIII memory
lGB Flash (DOM)
HDD Capacity
Up to 16TB (Storage Capacity per HDD : 4TB)
Number of HDD Supported
2.5"/ 3.5" SATA HDD x 4
(The standard system is shipped without HDD)
HDD Tray
4 x hot-swappable and lockable tray
LAN Port
2 x Gigabit RJ-45 Ethernet port
LED Indicators
HDD 1, HDD 2, HDD 3, HDD 4, eSATA, LAN1, LAN2
USB Connector
6 x USB 2.0:
Frontt x 1: For video backup
Frontt x 1 & Back x 4: Support pen drive, USB mouse, USB keyboard and USB UPS, etc.
eSATA
2 x eSATA port (Reserved)
Buttons
Power, USB backup
GPIO
4 in, 2 out
Output Connector
VGA x1/ HDMI x1 (for local display)
Alarm Buzzer
System warning
Form Factor
Tower
Operation Environment
Temperature 0~40C
Humidity 0~95% R.H.
Power Supply
Input: 100-240V AC, 50/ 60Hz
Output: 250W
Security Design
K-Lock security slot for theft prevention
Power Consumption
Operation: 54~65W (with 4 x 500GB HDD installed and in RAID 5 building process)
Fan
2 x quiet cooling fan (7cm, 12V DC)
H/ W Dimensions
245.8(D) x 205.3(W) x 184.94(H) mm
9.68(D) x 8.08(W) x 7.28(H) inch
Color Box Dimensions
303(D) x 250(W) x 317(H) mm
11.93(D) x 9.84(W) x 12.48(H) inch
Carton Dimensions
520(D) x 325(W) x 345(H) mm
20.47(D) x 12.80(W) x13.58(H) inch
Color Box Shipping Weight
Net Weight(kg/PC):4.43
Gross Weight(kg/PC):6.1
Gross Weight(kg/CTN):12.2
