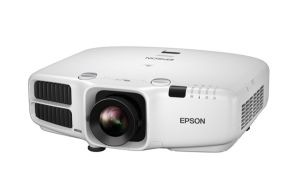

Epson EB-G6050W

• 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.

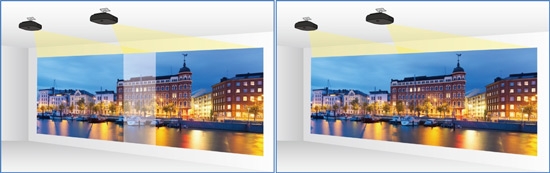

• Edge Blending Combine multiple individual images to create one seamless giant image.
• 2 x Digital connections Digital quality and flexibility.
• 360 Installation Install on any plane, from horizontal to vertical and everything in between.
• Arc and Point Correction Fine tune image geometry to perfection.
• Passive 3D For stacked 3D applications using polarised passive glasses.
• Six optional Lenses with Lens Shift Standard, Short, Wide, Rear, Middle or Long throw for complete flexibility and easy exchange.

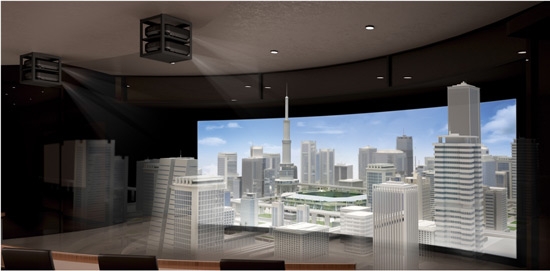

Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.







Stacked 3D solutions



You can create an impressive viewing experience with twice the brightness. Epson’s stacked 3-D solution (requires two projectors). Using polarised filters, in combination with low-cost 3-D glasses.





Split Screen



Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.



DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode² is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.





360-degree installation



The Epson G Series can be rotated 360 degrees in any direction for off-axis positioning flexibility.

As a result, it can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.





Short-throw lens



Install the projector as close as a 0.7 throw ratio to the screen and still get the same clear, crisp projection. A 1.2x zoom and up to 69% vertical and up to 31% horizontal lens shift gives even more flexibility when you need it.

Six optional lenses



For added flexibility, the G Series offers a total of six lenses, including one standard, one wide, one rear, two middle and one long-throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange. One standard lens included, other lenses are not included with the projector. (Lens not included with NL models)



Easy Management



The EasyMP Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.



Multi-PC projection



Epson Multi-PC Collaboration utility allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 28 users connected to the same projector on standby mode. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their content.



Schedule function



Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.



Protect your investment long-life electrostatic air filter



The Epson G series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule³ and can capture particles as small as three microns, due in part to its pleated, expanded design.



Easy maintenance



Offering convenient access to the lamps and filter, the G series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.

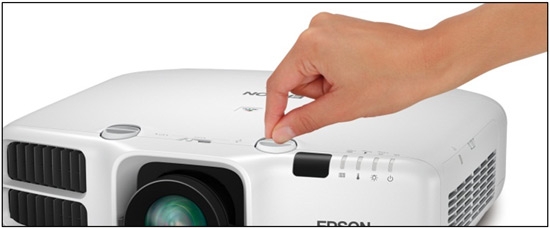

Lens shift



Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to 67 on the vertical axis and up to 30 on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.





Centered lens design



Featuring a centered lens design, the G series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.

Arc correction



Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Convenient test patterns



Make sure your presentation is setup correctly before you begin. The G Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.

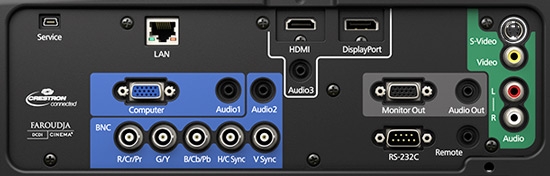

Connectivity Panel



Specifications:

PRODUCT NAME	Epson EB-G6050W
PRODUCT CODE	V11H511053
WHAT'S IN THE BOX
	EB-G6050W Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Lens Lock Screw, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.76-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.8 (Optical)
Screen Size	50" to 300" [1.35m to 8.36m] (Zoom: Wide) 50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance	100" screen 2.75m - 4.98m
Throw Ratio	1.26 (Zoom:Wide), 2.30 (Zoom:Tele)
Projection Lens F Number	1.65-2.55
Projection Lens Focal Length	21.28mm - 37.94mm
Focus Method	Manual
Colour Light Output	5,500 Lumens
White Light Output	5,500 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	5,000:1
Lamp Hours	3,000 hours (Power Consumption: Normal (5)) 4,000 hours (Power Consumption: ECO)
Lamp Type	380 W UHE
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -67% to +67% Horizontal: -30% to +30%
Tilt Angle	-1.50 to 10 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DisplayPort
Input: Audio	3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	1 x Stereo mini-jack
Speaker Output	10W
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Split Screen	Yes
Edge Blending	Yes
Arc Correction	Yes
360 Degress Projection	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington  style lock provision Padlock & Security cable hole Password protect function Wireless LAN Lock Lens Lock
Colour Modes	Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection
GENERAL
Dimensions D x W x H	405.5 x 505 x 171 mm
Weight	9.7kg (Including Standard Lens. Excluding Cable Cover)
Lamp Warranty	1 Year or 750 Hours*
Projector Warranty	4 Years or 10,000 Hours*
Power Consumption: Lamp on	477 W
Power Consumption: Standby	0.41 W
Noise Level	Normal/Eco: 37/31 dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V12H004S06	Standard Zoom Lens
	V12H004R03	Rear Projection Wide Lens
	V12H004U01	Short Throw Lens
	V12H004M04	Middle Throw Zoom Lens 1
	V12H004M05	Middle Throw Zoom Lens 2
	V12H004L06	Long Throw Zoom Lens
	V13H010L76	Replacement Lamp
	V13H134A43	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H005M09	Quick Wireless USB Key
	V12H003B22	Ceiling Mount
	V12H003P13	Extension Pole 668-918mm
	V12H003P14	Extension Pole 918-1,168mm
	V12H526040	Flush Ceiling mount
