All stock codes associated to this product
R927XOC2GD, R927XOC-2GD, VCGR927XOC2GS, VCG-R927XOC-2GS, 4719331338329

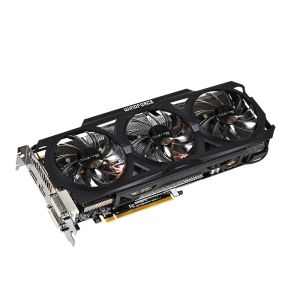

GV-R927XOC-2GD
GIGABYTE Ultra Durable VGA Series
- WINDFORCE 3X Cooling system
- Powered by AMD Radeon R9 270X GPU
- Integrated with 2GB GDDR5 memory, 256-bit memory interface
- Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
- BASE:1050MHz / BOOST:1100 MHz
- System power supply requirement: 500W
Overview
Ultra Durable VGA™
Features & Benefits
Lower GPU Temperature
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
Better Overclocking Capability
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
Decrease Power Switching Loss
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
Gold plated HDMI
Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections
Specifications:
| Chipset |
Radeon R9 270X |
| Core Clock |
Base / Boost clock1050 / 1100 MHz |
| Memory Clock |
5600 MHz |
| Process Technology |
28 nm |
| Memory Size |
2048MB |
| Memory Bus |
256 bit |
| Card Bus |
PCI-E 3.0 |
| Memory Type |
GDDR5 |
| DirectX |
11.2 |
| OpenGL |
4.3 |
| PCB Form |
ATX |
| Digital max resolution |
4096 X 2160(via a single HDMI connector and not supported with two DVI connectors) |
| Analog max resolution |
2048 x 1536 |
| Multi-view |
3 |
| I/O |
Dual-link DVI-I*1 / DVI-D*1 / DisplayPort*1 / HDMI*1 |
| Card size |
L=297mm W=132mm H=43mm |
| Power requirement |
500W(with two 6-pin external power connectors) |
