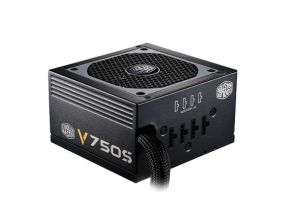

CoolerMaster 750W V750S VS Series - ATX 12V v2.31, 120mm Fan, Modular Cables, 80 PLUS Gold Certified
  • 8x SATA, 4x PCI-E 6+2-Pin

IMG 1 of 5
No Longer Available
Part Number:
229732
(?) Brand:
CoolerMaster Web Site
Manuf No:
RS750-AMAAG1
RS750AMAAG1
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RS750AMAAG1, RS750-AMAAG1, PSCORS750AMAAG1
V750S

RS750-AMAAG1

Description


Developed to improve efficiency and increase heat dissipation, VS Series PSUs are manufactured with a unique 3D circuit design. This special design minimizes unnecessary internal cabling which results in lower crosstalk and signal noise. VS Series PSUs feature a single, powerful rail. High-grade Japanese capacitors help extend overall PSU system life and create excellent holdup times. A firm 80 PLUS Gold certification and solid performance over long periods of use are the net result of these many improvements.

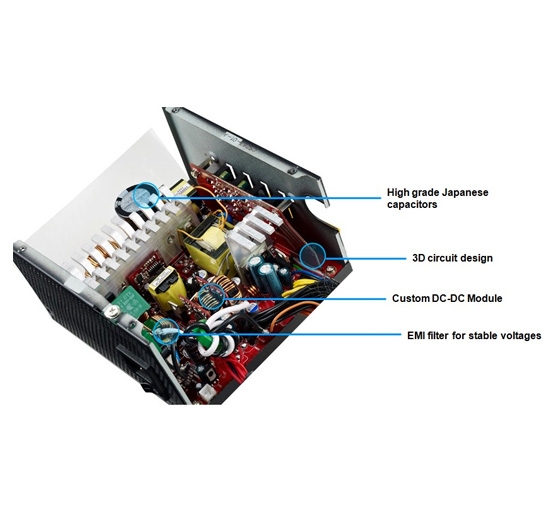

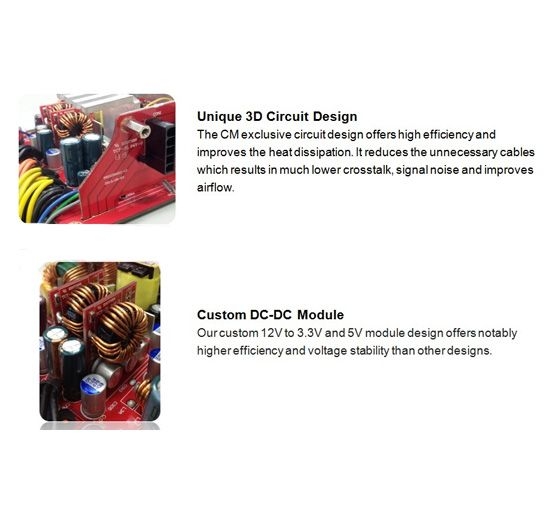

  • Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
  • Powerful Single +12V rail for superior load balancing and VGA compatibility

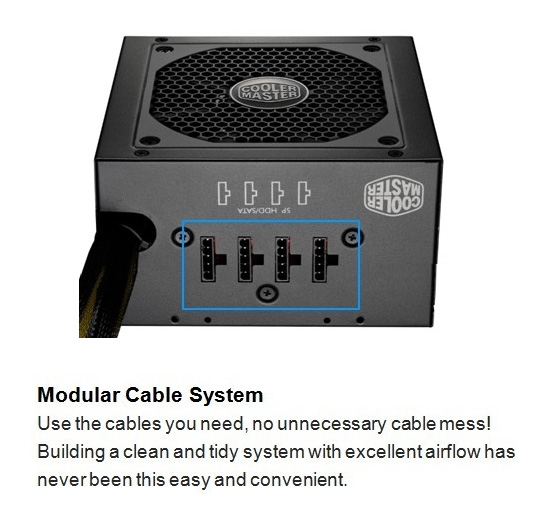

  • Modular cable designs for better cable management
  • Japanese capacitor ensures an extended lifetime and excellent holdup times, in case of power fluctuation


  • Custom DC-DC module design offers higher efficiency and voltage stability
  • 80 PLUS Gold certified: up to 92% efficiency @ typical load







Specifications:
Model RS750-AMAAG1-US; RS-750-AMAA-G1

Type Intel Form Factor ATX 12V V2.31

Dimension 150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch

Input Voltage 90-264Vac (Full Range)

Input Current 10 - 5A

Input Frequency Range 60 - 50Hz

PFC Active PFC (>0.9 typical)

Power Good Signal 100-500ms

Hold Up Time >16ms

Efficiency 90% Typically

MTBF >100,000 Hours

Protection OVP/UVP/OPP/OTP/SCP/OCP

Output Capacity 750W

Operation Temperature 0~40C

Regulatory CE/TUV/FCC/CCC/BSMI/KCC/RCM/EAC/UL

Fan 120mm intelligent fan

Certification 80 Plus Gold

Connector MB 20+4 Pin x 1
CPU12V 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 8
4Pin Peripheral x 6
4Pin Floppy x 1

Warranty 5 years

UPC Code 884102023590
