All stock codes associated to this product
VA2246MLED, VA2246M-LED, 3012014, 766907722529
VA2246m-LED
Small Format, Stylish Design
Features
22" (21.5" Viewable) Full HD 1080p LED Monitor
Overview
Product Description
The ViewSonic VA2246m-LED is a 22 (21.5 viewable) widescreen monitor with a LED backlight and a glossy, thin-bezel design ideal for use in the home or at the office. With Full HD 1920x1080 resolution and a 10M:1 MEGA Dynamic Contrast Ratio, the VA2246m-LED delivers stunning brightness and contrast, while a quick 5ms response time ensures crisp pictures and smooth playback. As a complete multimedia package, the display also includes a pair of integrated speakers. VGA and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional mount flexibility. With a LED backlight and energy-saving Eco-mode, the VA2246m-LED is an environmentally friendly display choice. In addition, a 3-year limited warranty, along with one of the industrys best pixel performance policies make the VA2246m-LED a great value choice for corporate and educational use as well.
Key Features:
- 22" (21.5" viewable) widescreen LED backlit monitor; great value for small office, home office applications, corporations, government and education
- Up to 50%* power savings over a traditional CCFL 22" monitor
- 1920x1080 resolution with 16:9 aspect ratio for perfect image reproduction

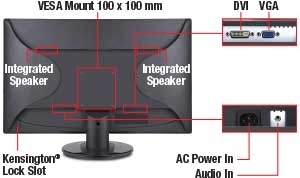

- Connectivity options include DVI (with HDCP) and VGA inputs
- Multimedia enriched with integrated stereo speakers
- 100 x 100mm VESA compliant for wall mount or monitor stands
- Industry-leading pixel performance guarantee and 3-year limited warranty

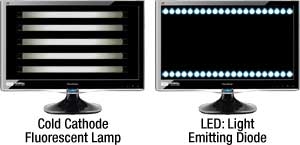

What is a LED monitor?
The term "LED monitor" generally refers to a monitor with a LCD panel and a LED backlight. A typical LCD monitor uses cold cathode fluorescent lamps (CCFL) as a light source to illuminate the LCD panel. In an LED backlit monitor, white LEDs (Light Emitting Diodes) are used as the light source. Environmentally friendly LED backlights provide the following benefits:
- About 50%* less power consumption compared to a traditional CCFL monitor
- 10M:1 MEGA Dynamic Contrast Ratio
- Environmentally friendly mercury-free backlight
- Low EMI (Electro Magnetic Interference)
- Slimmer design
- Weight reduction

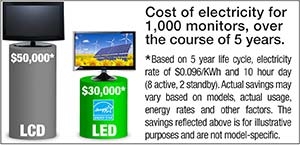

Save cash and save the planet
With its mercury-free backlight and low energy consumption, the ENERGY STAR certified VA2246m-LED saves your electricity bill. The savings of LED can add up to thousands of dollars saved for large install bases, such as big corporate buildings or schools. The savings can be as dramatic as $20,000 in five years!
10M:1 MEGA Dynamic Contrast Ratio
Dynamic contrast ratio detects the brightness of an image, and automatically adjusts the backlight to maximize the monitor's color range and contrast. Dynamic contrast ratio technology enables the accurate reproduction of images, producing vibrant and rich visual effects.
Full HD 1080p for Superior Pixel Performance
The VA2246m-LED features a Full HD 1080p 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You'll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment. A 16:9 widescreen ratio minimizes eye fatigue even after hours of viewing and is perfectly compatible with multi-window viewing without toggling.
Pair it with a ViewSonic or Mac computer
One of the key advantages of the VA2246m-LED monitor is its diverse connectivity options, making it flexible to be paired with a PC or a Mac computer. Now you can hook up any ViewSonic PC as well as a MacBook or a Mac Mini to the VA2246m-LED and enjoy a widescreen with LED backlight!

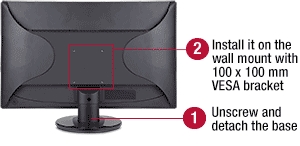

VESA-mountable
The VA2246m-LED features a 100 x 100mm VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs. You can easily detach the base by unscrewing four screws and then mounting the display on its new stand or wall mount.
Eco-mode Conserves More Energy
ViewSonic's proprietary Eco-mode function is built into all LED displays, offering options to "Optimize (70%)" or "Conserve (55%)". Both modes reduce display brightness and conserve up to 45%* energy. Especially in low ambient light, Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life. With Eco-mode, lamp replacement expenditures are reduced while practicing eco-friendliness.
Industry-leading pixel performance guarantee and 3-year limited warranty
One of the aspects that makes ViewSonic a market leader in displays is its dedication to quality. ViewSonic is committed to using the highest grade panels and offers the industry's leading pixel performance policy. We also back our displays with a 3-year limited warranty for your peace of mind.
|
Pixel Performance
|
17" / 19"
4:3 or Wide LCD
|
20"+
Wide LCD
|
|
ISO9241-3:2008 Standard
|
3 Bright
3 Dark
5 Total
|
3 Bright
3 Dark
5 Total8
|
|
ViewSonic Pixel Guarantee
|
2 Bright
2 Dark
3 Total
|
2 Bright
2 Dark
3 Total
|
What's in the Box:
- VA2246m-LED Display
- Power cable
- Video cable
- Audio cable
- Quick start Guide
- ViewSonic Wizard CD
- Base Instruction guide

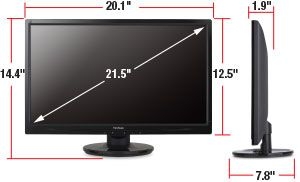

Dimensions and Other features:
- Product Dimensions (w x h x d) without stand: 20.1 x 12.5 x 1.9
- Product Dimensions (w x h x d) with stand: 20.1 x 14.4 x 7.8
- Display Dimensions (w x h )if applicable: 18.8 x 10.6; 21.5 diagonal
Specifications:
LCD
Type
22" (21.5" viewable) Wide Color TFT Active Matrix LCD
Display Area
18.8" horizontal x 10.6" vertical; 21.5" diagonal
Optimum Resolution
1920x1080
Contrast Ratio
1000:1 (typ.) / Dynamic : 10,000,000:1
Viewing Angles
170 horizontal, 160 vertical
Response Time
5ms (typ)
Light Source
White-light LED/ Backlight Life: 40,000 hours (min.)
Brightness
250 cd/m2 (typ.)
Panel Surface
Anti-glare, hard-coating (3H)
VIDEO INPUT
Analog/Digital
RGB analog (0.7 / 1.0 Vp-p, 75 ohms) / DVI (TMDS, 100 ohms)
Frequency
Fh: 24~82kHz, Fv: 50~75Hz
Sync
Separate Sync
COMPATIBILITY
PC
PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac
Up to 1920x1080
CONNECTOR
Analog/Digital
15-pin mini D-sub (VGA) / DVI-D (V1.3 with HDCP)
USB
N/A
Audio Input
3.5 mm mini jack
Headphone
N/A
Power
Internal Power Board, 3-pin plub (CEE22)
AUDIO
Speakers
2-watt (x2)
POWER
Voltage
AC 100240V (universal), 50 / 60Hz
Consumption
26W (typ.) / 34W (max.)
Eco Mode
16W (typ.)
Power Save Mode
12W (typ.)
CONTROLS
Basic
Power, 1, up, down, 2
OnView
N/A
OSD
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
OPERATING CONDITIONS
Temperature
32104 F (040 C)
Humidity
1090% (non-condensing)
DIMENSIONS (WxHxD)
Physical With Stand
20.1 x 14.4 x 7.8 in. / 509.6 x 366.1 x 197.6 mm
Physical Without Stand
20.1 x 12.5 x 1.9 in. / 509.6 x 316.6 x 48.3 mm
Packaging
22.2 x 15.4 x 4.9 in. / 565 x 391 x 114 mm
WEIGHT
Gross
10.3 lb. / 4.7 kg
Net With Stand
7.7 lb. / 3.5 kg
Net Without Stand
6.9 lb. / 3.1 kg
Tilt
Forward 5, Back 18
Vesa Mount
VESA 100x100 mm
Regulations
CE, CB, WEEE, RoHS, REACH SVHC List, TCO5.1, ENERGY STAR 5.0, Windows 8, Window7, UL, cUL, FCC-B / ICES-003B, TUV-S, Nemko ERGO, GOSTR+ Hygienic, UkrSEPRO, ErP, CCC, CEL Level 1, BSMI, PSB, C-tick, KC, e-standby
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
VA2246m-LED display, power cable, video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only), Base instruction guide
Warranty
Three-year limited warranty on parts, labor and backlight.
Power Management
ENERGY STAR standards
3D REQUIREMENTS
N/A
3D GLASSES
N/A
INCLUDED ACCESSORIES
N/A
