All stock codes associated to this product
USBVGAWSUGA17M1, USBVGAWS-UGA17M1

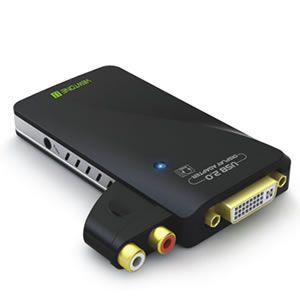

USB 2.0 Full HD 1080p Display Adapter DVI/HDMI w/Audio (1920x1080)
The USB 2.0 Graphic Adapter allows you to connect an extra monitor to your desktop PC or laptop's USB port. The connected monitor can be configured to either clone your primary screen, or extend the Windows desktop allowing visibility of more applications at the same time.
The USB 2.0 Graphic Adapter driver used to control the extra screen uses very little computer resource and offers a vast array of screen resolutions and color depths. This ensures that there is little difference in performance between a directly connected screen and a screen connected through the USB 2.0 Graphic Adapter
The USB 2.0 Graphic Adapter also supply one audio out adaptor.
The USB 2.0 Graphic Adapter supports up to six simultaneous displays, including widescreen displays, extending your desktop and your horizons. It operates at a high resolution of 1600x1200/1920x1080.
Office Use:
- View large spreadsheets across two screens with display continuity
- Multitask more effectively without overlapping windows
- Open attachments on one screen while reading the e-mail on the other
Mobile Use:
- Do multiple screen displays and presentations without bringing another computer
Graphic Use:
- Use second display for pallets/tools
Data Entry Use:
- Type documents on one screen while viewing reference material on the other
Wall Street:
- Use a notebook for viewing multiple screens
- View charts and live data at the same time
Entertainment:
- View videos/TV on one screen and your desktop on the other scre
- Easily connect additional monitors using a USB 2.0 Cable
- Enjoy resolutions of up to 1600x1200 / 1920 x1080 at 32 bit color
- Allows for effortless multitasking
- Bus Powered - No external power supply needed
- Supports usage through powered KVMP's or USB hubs
Features
- Can easily Mirror the main display
- Extend left, right, above, or below
- Can be rotated left, right, or upside-down
- DVI , VGA and HDMI Support
- 2.1 Channel Audio Output
- Microphone Support
- Mixed output RCA*2(Left and Right Track) Interface
- Maximum: 1600x1200 or 1920x1080 Digital (@60Hz 32-bit)
- Minimum: 1024 x 786 (@ 60,70,75,85Hz 32-bit)
- USB 2.0 Powered - Ultra Low Power
- Lossless Compression
- CRT, LCD, Projector Displays
- Windows Vista Aero Support
- Windows XP and Vista 32bit Support
- Standard and Widescreen ratio aspects
- High-Performance DDR Memory
- Uses a virtual driver
- Stackable by design with a small footprint
- Completely silent operation
- Onboard power and status indicator LEDs
- Portable, making it easy for travel
Requirements
- Available USB 2.0 Port
- Windows 2000 SP4
- Windows XP SP2
- Windows Vista with Aero support
Package Content
- 1 x USB to DVI Adapter
- 1 x Quick Start Guide
- 1 x CD-ROM with User Guide and Installation Software
- 1 x 4ft USB 2.0 Cable
- 1 x DVI to VGA Adapter
- 1 x DVI to HDMI Adapter (Optional)
- 1 x 3.5 Stereo to RCA Audio Adapter
- 1 x RCA*2(Left and Right Track) Cable (Optional)
