IKVM-8020
8-Port Combo KVM Over IP Switch
Overview
Easily Control Servers with Flexibility
The PLANET 8-Port Combo IP KVM Switch, IKVM-8020 is an enterprise-class, secure, KVM-over-IP switch that provides BIOS-level control of up to 64 servers. Use a dedicated micro-controller and potentially specialized video capture hardware to capture the video, keyboard, and mouse signals, compress and convert them into packets, and send them over an Ethernet link to a remote console application that unpacks and reconstitutes the dynamic graphical image. This IP KVM solution includes standard features such as Powerful Mouse / Keyboard Support such as installing software, transferring files and backing up data.
Powerful VGA / Mouse / Keyboard Support
The IKVM-8020 will detect the current video mode of the console automatically; and manual fine-tuning is also available to receive an optimal video quality. The IKVM-8020 will accept video streams with a dot clock rate up to 110MHz, therefore, the remote VGA resolution can up to 1600 x 1200 video resolution.
User can connect up to 8 PCs to the IKVM-8020. The IKVM-8020 also fully supports various models of PS/2 and USB mice manufactured by Logitech, Microsoft and IBM as well as compatible PS/2 and USB mice of other brands. The KVM supports the PS/2 and USB Keyboard Port of the CODE SET1/2/3 and further allows you to use the KVM for all kinds of servers and PCs.
Easy Switching , Efficient Management

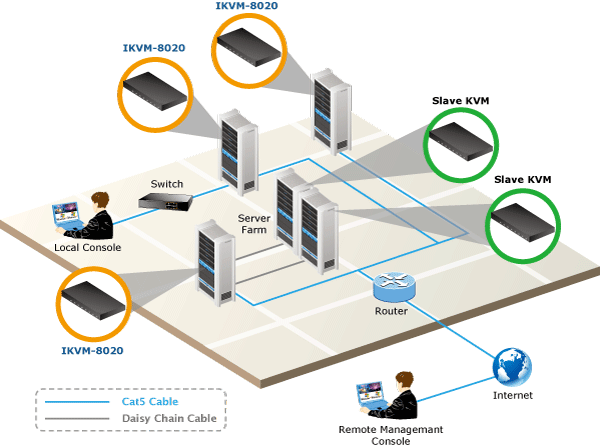

The IKVM-8020 can fully control the connected PCs of any platform through any at-hand browser or just work as a normal 16-Port KVM Switch in local site. By the support of daisy chain function, users can cascade one IKVM-8020 to multiple KVM-810 or KVM-1610, and manage this KVM chain with one single IP. The IKVM-8020 is the ideal choice for those users who want to maintain their PC system at office or home 24/7.
| Ordering Information |
| IKVM-8020 |
8-Port Combo KVM Over IP Switch |
| Accessories |
| KVM-DCB-1.8 |
1.8 Meter 1-to-3 DKVM Combo Cable |
| KVM-DCB-3 |
3 Meter 1-to-3 DKVM Combo Cable |
| KVM-DCB-5 |
5 Meter 1-to-3 DKVM Combo Cable |

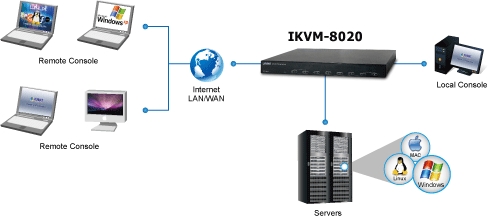

Remote management via network

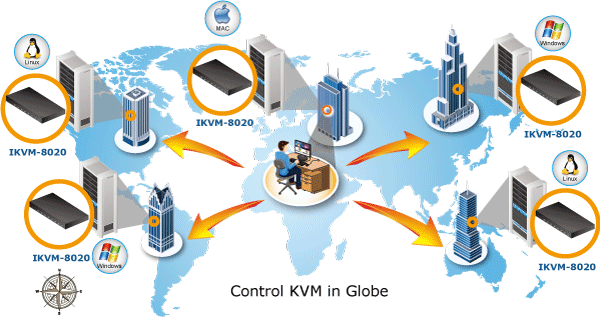

With PLANET IKVM-8020, network administrators can control a server room locally or remotely through Internet. No additional software or license fee is needed; multiple users can securely access remote server by using a standard web browser to create a HTTPS/SSL connection.
Hardware
- 19" rack mount 1U size design
- LED display for easy status monitoring

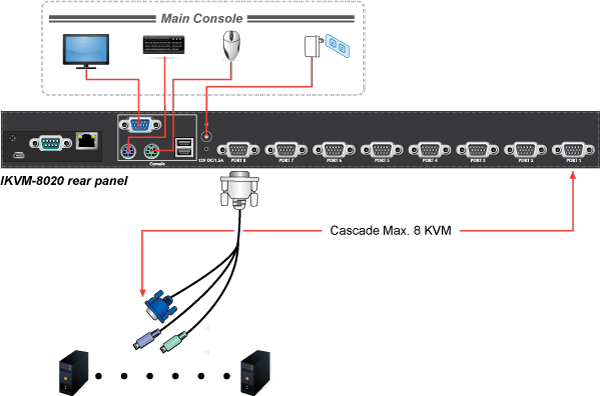

- Cascade controls up to 64 computers from single console
- High Video Resolution up to 1920 x 1440 (local side) or 1600 x 1200 (remote side)
- Supports hot plug; no need to power off the KVM switch or PCs when adding or removing PCs
System
- Supports SSL protocol for any encrypted network traffic between itself and a connected client
- Automatically senses video resolution for best possible screen capture
- No Software Requiredeasy PC selection via On Screen Display (OSD) menu, Push Buttons, Hot Keys
- Compliant with DOS, Windows, Netware, Unix, Linux, iMAC, Power MAC and Sun Micro Systems with USB port by connecting with a USB-PS/2 adapter
Installation
- Remote mass storage control
- Supports password protection and PC server name search
- Buzzer sound for switching port confirmation
- Keyboard status restored when switching PCs
Specifications
| Hardware Interface |
| PC Port |
8 |
Host Connectors
(all female type) |
HDDB 15-pin x 8 |
Local Console Connectors
(all female type) |
USB keyboard port & USB mouse port
PS/2 keyboard port & PS/2 mouse port
HDDB 15-pin VGA port
|
| USB keyboard port & USB mouse port(all female type) |
PS/2 keyboard port
PS/2 mouse port
HDDB 15-pin VGA port
|
| Remote Console |
Remote Console |
| Control Feature |
| Max connected PCs |
64 (by cascade 8 KVM-810) |
| Max cascade levels |
2 |
| Port Selection Keys |
8 |
| PC Selection |
On Screen Display Menu / Hot Key / Button |
| VGA Resolution |
Local console: 1920 x 1440
Remote console: 1600 x 1200
|
| Network and Configuration |
| Network Standard |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
|
| Supported Protocol |
TCP, IP, ARP, ICMP, HTTP/HTTPS, Telnet, SSH, DHCP/BOOTP, PPP, SMTP, DNS, NTP, Dynamic DNS |
| Client Software |
Microsoft Java VM, Sun Java VM (Plug in), Netscape Java VM |
| Remote Access Key |
128-bit SSL / 256-bit SSL(Firefox) |
| Keyboard / mouse Emulation |
USB & PS/2 |
| DDC / EDID communication |
DDC2 |
| Environment |
| Dimension (W x D x H) |
160 x 444.5 x 44.3 mm |
| Weight |
2.76kg |
| Environmental Specification |
Operating temperature: 0 ~ 50 Degree C
Storage temperature: -20 ~ 60 Degree C
Relative humanity: 0 ~ 80% (non-condensing)
|
| Power Requirement |
12V DC, 1.5A |
| Electromagnetic Compatibility |
FCC, CE |
